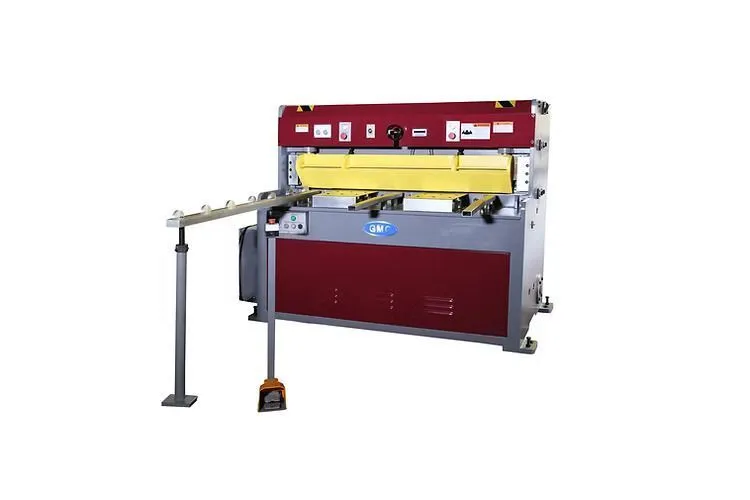

New HS-1010E - 10' x 10 Ga. Hydraulic Metal Shear w/Electric Backgauge
Have one to sell?
ConditionNew
1 available
New
GMC HS-1010E 10' x 10 Ga. hydraulic metal shear combines precision with powerful features, including an electric back gauge, adjustable blade gap, and a 7.5 HP motor. Engineered for durability, ideal for mild steel, stainless, and aluminum shearing.
Cutting capacity:
Mild steel 10’ x 10 Ga.
Stainless steel 10’ x 14 Ga.
soft aluminum 10' x 1/4"
min. thickness 24Ga.
Blade length 10'1"
Strokes per minute 10-15
Worktable height 34 1/2"
Front support arm 24"
Back gauge 36" SIKO powered B.G.
Blade rake angle 2 degree
Oil tank cap. 26 Gal
Main Motor 7 1/2 HP 3 Phase Prewired: 220V/35A Optional: 440V/20A
Powered B.G. Motor 1 HP, 220V/440V, 3 Phase
Machine weight 9350 LBS
Machine dimensions 178" x 99" x 65"
HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro
adjustment 0.004” , inch/mm digital display
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA)
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
