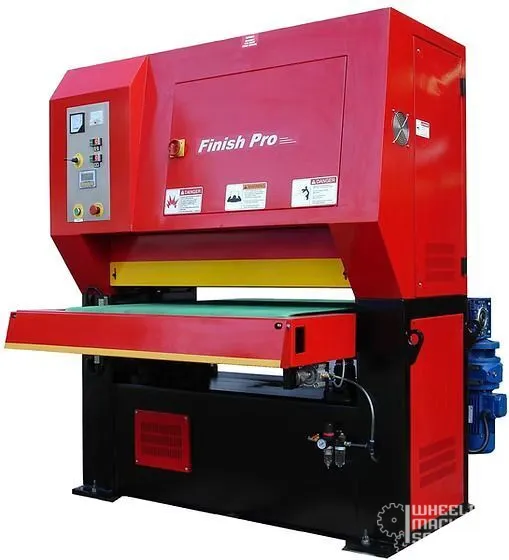

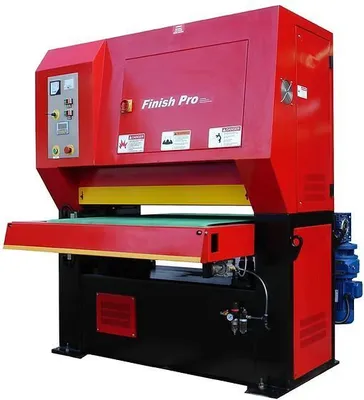

New GMC FP-4075 Heavy Duty Sander

Abrasive belt size: 40” x 75”
Motorized Table Lift with computer display
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts
4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230V, 3-Phase
One year Industrial Warranty for parts

Max. Part Width 40"
Abrasive Belt Size 40" x 75"
Contact Roller Size 8" Dia.
Passline Height 31" - 37"
Max. Thickness Capacity 6 1/8"
Min. workpiece length Min 8”, need a fixture for smaller parts
Max. workpiece weight 375 LBS
Conveyor Drive Speeds 8 - 40 FPM
Infeed Conveyor Length 20"
Dust Colector Capacity 1,800 CFM
Main Motor 15 HP 3 Phase
Prewired: 220VAC/60AMPS
Optional: 440VAC/30AMPS
Conveyor Motor 1.5 HP 3 Phase
Prewired: 230VAC
Optional: 460VAC
Table Lifting Motor 1 HP 3 Phase
Prewired: 230VAC
Optional: 460VAC
Net Weight, Approx. 4,650 LBS
Shipping Weight:4,859 LBS
Machine Dimensions: (LxWxH) 76" x 88" x 81"
Shipping Dimensions: 73" x 67" x 86"

Optional
Wet Dust Collector #WDC-2100, 5 HP, 2,100CFM (it is demo wet collector, all stainless steel)-
WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are no filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.
Heavy Duty Ducting Package # HDDP-2560
Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses) call for pricing
