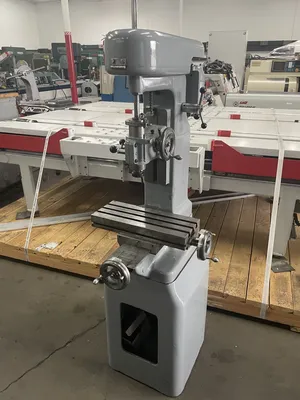

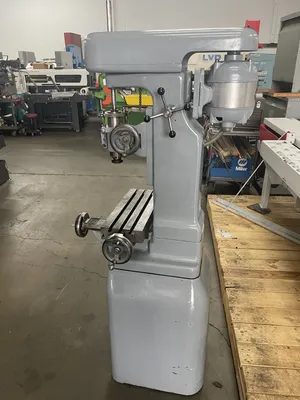

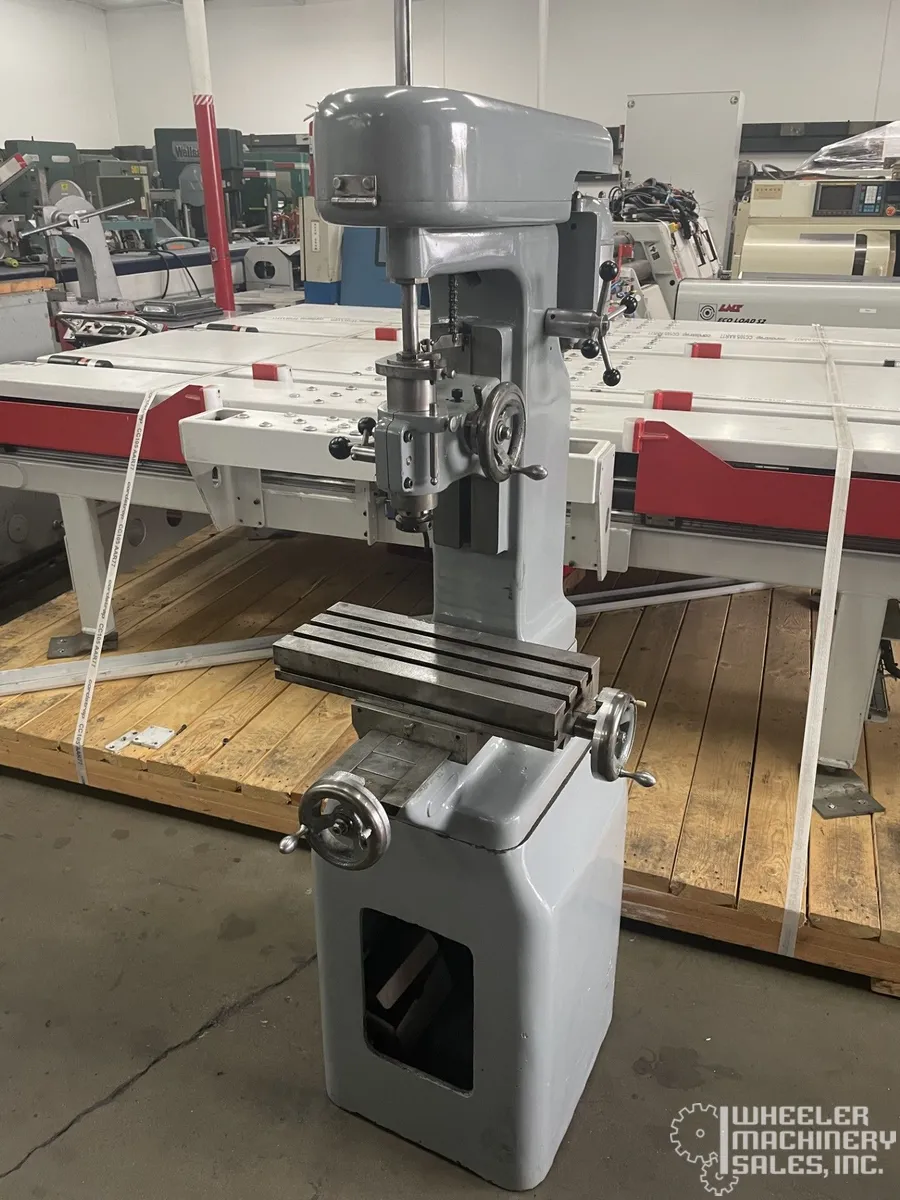

LINLEY MK. 1A Vertical Jig Borer #7972 #1
Have one to sell?
$2,950.00 USD
ConditionUsed
1 available
LINLEY MK. 1A Vertical Jig Borer for sale. Features a 18 x 7 inch table, 10-inch longitudinal and 6-inch transverse travel, with 3-inch quill travel. Eight spindle speeds range from 275 to 4250 rpm. Motor: 0.5 HP, three-phase. Approx. 950 lbs.
LINLEY MK. 1A Vertical Jig Borer #7972 #1
SPECIFICATIONS:

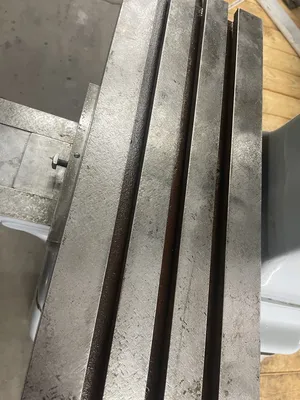

Table size: 18 x 7 inches with three 1/2-inch T-slots.
Table travel: Approximately 10 inches longitudinal and 6 inches transverse

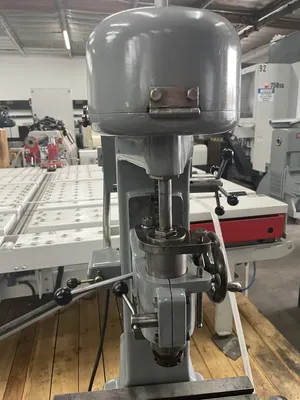

Quill travel: 3 inches, with an optional power down feed
Spindle speeds: Eight speeds via a belt-driven pulley system: 275, 430, 550, 860, 1250, 2125, 2500, and 4250 rpm.
Collet capacity: 1/8 to 1/2 inch in 1/32-inch increments, using ordinary split-from-one-end type collets.

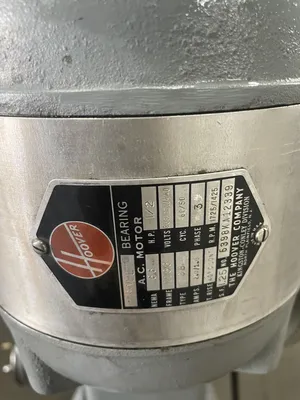

Motor: 0.5 horsepower, three-phase.
Footprint: A Mk. 1 on a box stand measures approximately 30 inches long by 23 inches wide and 65 inches high.
Weight: Approximately 950 lbs crated.
