Stoelting AquaForce AQF-212 Wash Rinse Heated Blow-Off #7945
Have one to sell?
$55,000.00 USD
ConditionUsed
1 available
By far the nicest used pass-thru in our inventory. LIKE NEW!!
Stoelting is one of the best built parts washers on the market. They don't cut corners on quality and use the best parts, and components available. We have purchased and resold many Stoelting's throughout the years and we buy every one we are able to. They have a excellent support.
Save over new on this exceptionally clean unit.
Stoelting AquaForce AQF-212 Wash Rinse Heated Blow-Off #7945
SPECIFICATIONS:
DIMENSIONS 23'-6" L x 7'-9" W x 10' T
WEIGHT 7500 lbs.
12 x 12 3 Stage Parts Washer
Frames 10 GA Painted Carbon Steel
Tanks 14 GA Stainless Steel
Canopies 14 GA Stainless Steel
Dryer Construction Stainless Steel
Chip Baskets Stainless Steel
Piping Stainless Steel
Spray Tubes Stainless Steel
Pumps Stainless Steel
Easy Access Doors
Tank Cleanout Doors

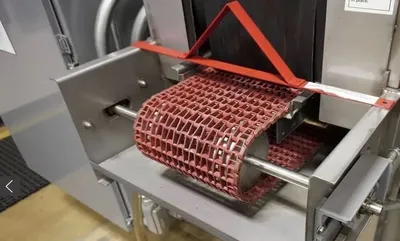

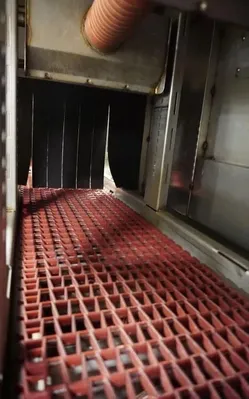

Conveyor Belt is Nylon Glass Belting will not mar parts. 12"
Wide x 1/2x1 Mesh Standard Weight 3/8" Thick Nylon Glass
12" Width x 12" Part Height
Utilities Incoming Water Nominal 40 PSI, Max 125 PSI
Electrical 460 Volt 3 Phase, 60 HZ 134 FLA
1' Load
5' Wash
2'-6" Canopy
7' Rinse
2' Canopy
5' Heated Blow-Off
11" Unload
3'-11" Load height from floor to belt.
EQUIPPED WITH:
150 Gallon Wash Tank 54 GPM 3 HP Stainless Pump
31.5 KW Electric Heat 140 Deg. F.
15o Gallon Rinse Tank 36 GPM 3 HP Stainless Pump 31.5 KW Electric Heat 140 Deg. F.

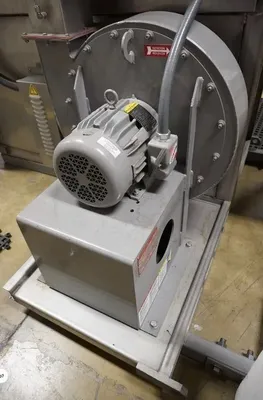

Dryer 9000 CFM 5 HP, 250 Deg. F, 24 KW
