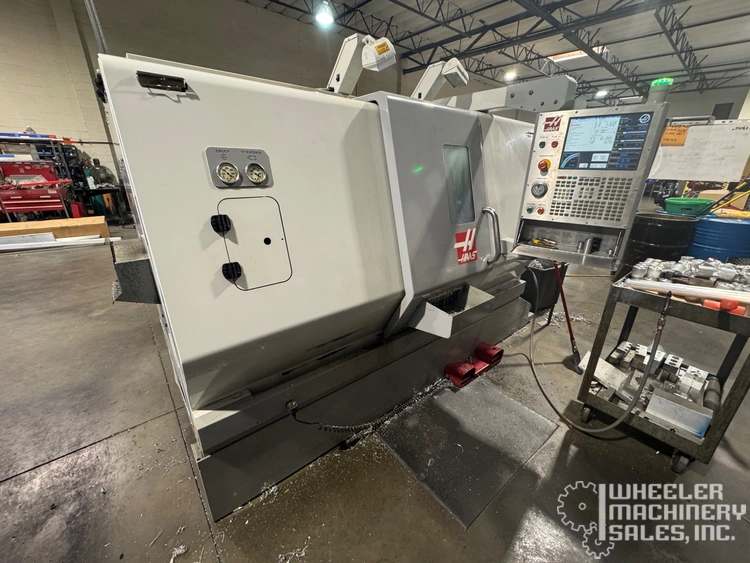

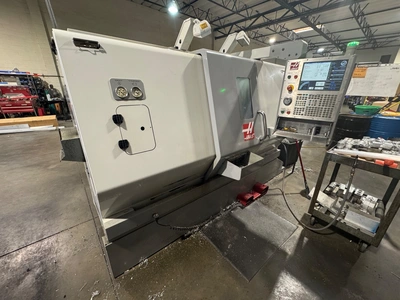

2006 Haas SL-20T CNC Turning Center 10.5" x 20" #7938
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available
2006 Haas SL-20T CNC Turning Center with 10.5" x 20" capacity. Features: 4,000 RPM spindle speed, 30 HP vector motor, 12-position turret, tailstock with 20" travel, 8" power 3-jaw chuck, parts catcher, chip conveyor, coolant filtration system.
2006 Haas SL-20T CNC Turning Center 10.5" x 20" #7938
SPECIFICATIONS:
Swing: 20"
Turning Diameter: 10.3"
Distance Between Centers: 20"
Bar Capacity: 2"
X Axis Travel: 8.45"
Z Axis Travel: 20"
Spindle Speed: 4,000 RPM
Spindle Nose: A2- 6
Spindle Bore: 3.5"
Rapid Traverse Rate: 710 IPM

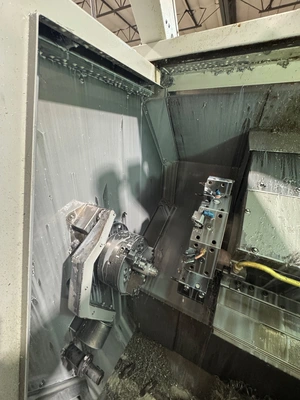

Turret Capacity: 12 Positions
Tailstock Travel: 20"
Tailstock Taper: #4 MT
Spindle Motor: 30 HP Vector
Dimensions: 127" x 74" x 70"
Weight: 9,000 Lbs.
EQUIPPED WITH:

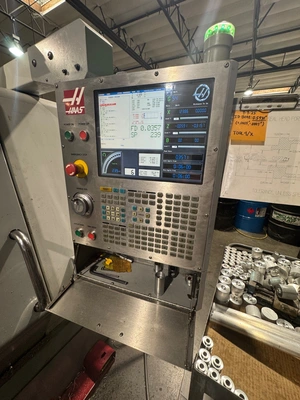

Haas CNC Control
8" Power 3 Jaw Chuck
Tailstock
Parts Catcher

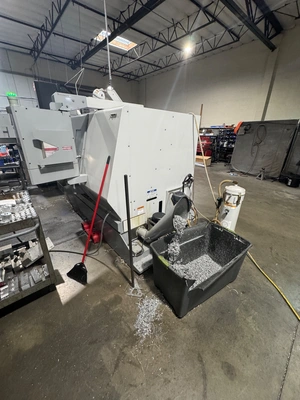

Chip Conveyor
Coolant Filtration System
