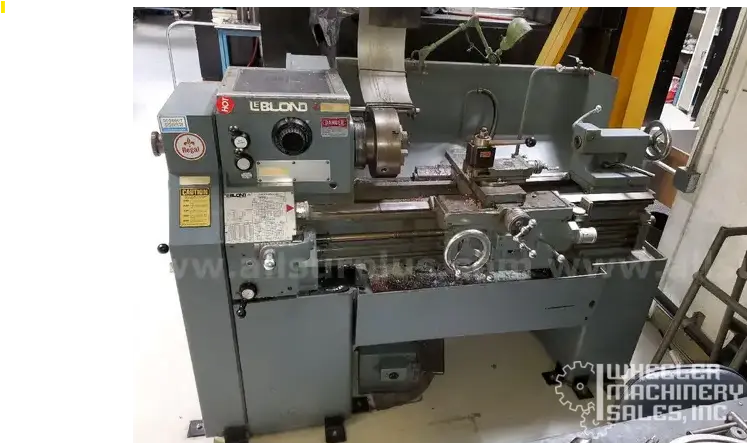

LE BLOND 15" Regal Servo Shift Engine Lathe #7918 #1

LE BLOND 15" Regal Servo Shift Engine Lathe #7918 #1

SPECIFICATIONS:
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 30"
SPINDLE NOSE ...................... L1
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 45 - 1,800 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
THREADING RANGE METRIC (40) ....... 0.25 - 14 mm
TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 80"L x 40"W x 51"H

EQUIPPED WITH:
10" CUSHMAN 3-JAW CHUCK
12" 4-JAW CHUCK
5C LEVER TYPE COLLET CLOSER
THREAD DIAL INDICATOR
ALORIS QUICK CHANGE TOOLPOST W/HOLDERS
COOLANT SYTEM WITH REMOVEABLE CHIP PAN
7-1/2 HORSE POWER MAIN MOTOR
MACHINE IS WIRED FOR THREE PHASE 220 VOLT OPERATION
MANUALS
