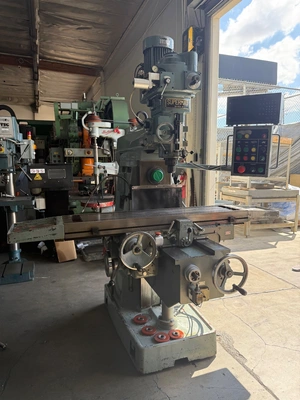

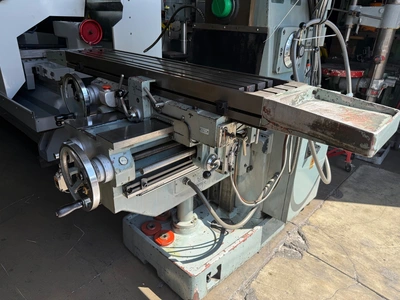

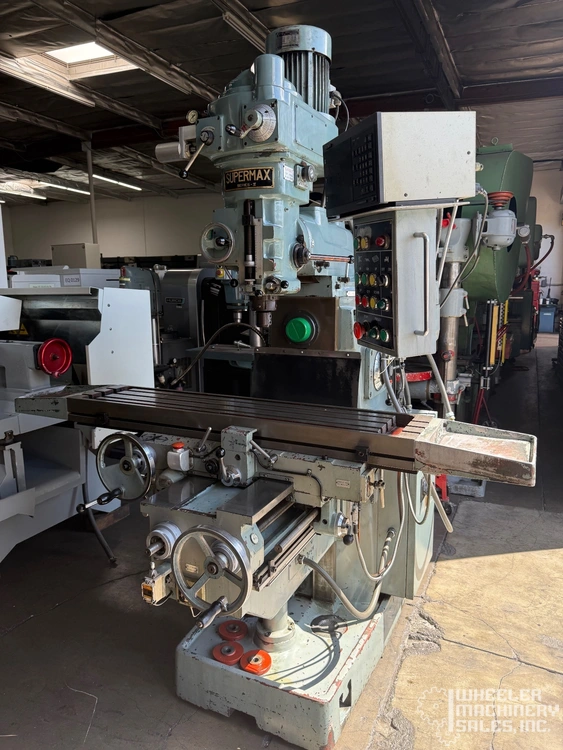

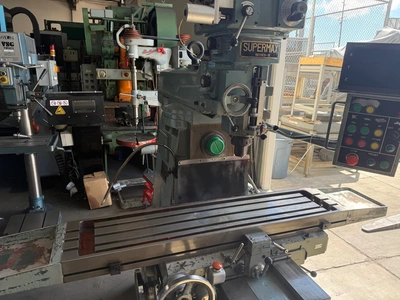

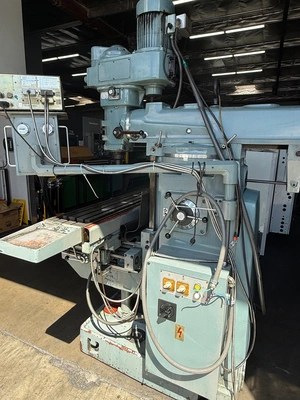

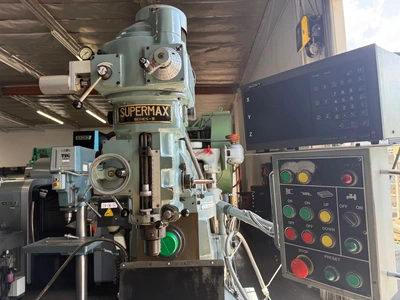

SUPERMAX / YCI YCM-2GS Vertical/Horizontal Mill #7926 #1

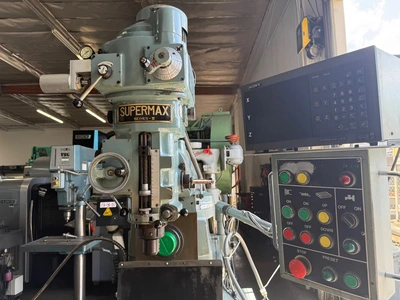

SUPERMAX / YCI YCM-2GS Vertical/Horizontal Mill #7926 #1

SPECIFICATIONS:

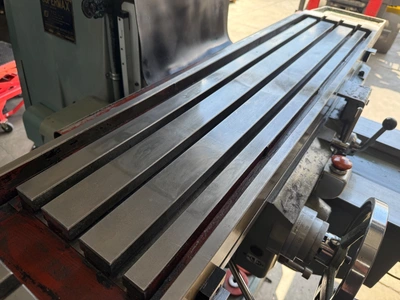

Table Working Size: 51.2" X 11"
Table Travel Longitudinal: 39.4"
Cross: 14.2"
Vertical: 17.7"
Table Feeds Number:
Longitudinal & Cross: 1/2 To 23-3/4 IPM
Rapid Traverse--Longitudinal & Cross: 118 IPM
Vertical: 31-1/2 IPM
Horizontal Spindle:
Spindle Taper: #40 Taper
Number Of Speeds: 9
Range Of Speeds: 85 To 1300 RPM

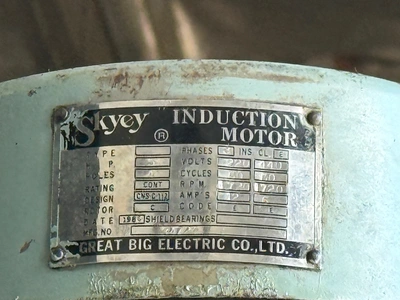

Main Spindle Motor: 5 Hp

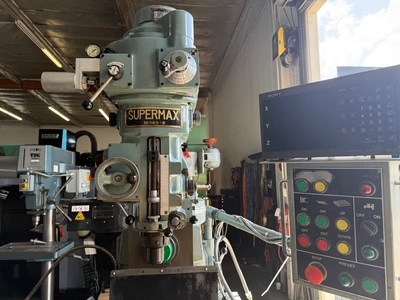

Vertical Spindle:
Main Motor: 5 Hp
Range Of Speeds: 75 To 4,220 RPM
Spindle Nose Taper: #40 Taper
Quill Feeds, 3: .0015, .005 & .003 IPR
Quill Travel: 5-1/2"
Swiveling Angle Of Head (Left & Right): 90 Degrees
Electrics: 220 / 440 / 3 / 60
Machine Weight: 5,720 LBS
Dimensions (L X W X H): 74" X 62" X 94"

EQUIPPED WITH:
Variable Speed
Digital Read Out System
Spindle and Turret Head
Horizontal Arbor Supports with Arbor
Coolant System, One Shot Lubrication
Bijur #UBA2 Spray Mist Coolant Unit
