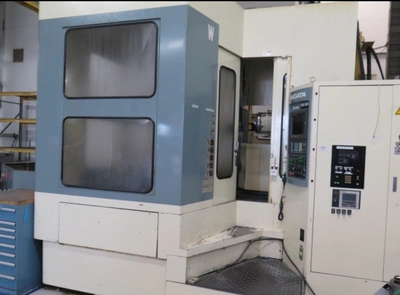

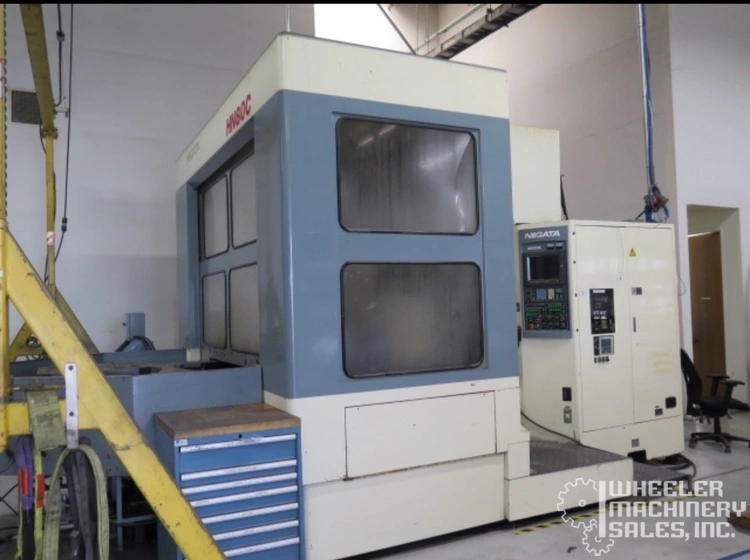

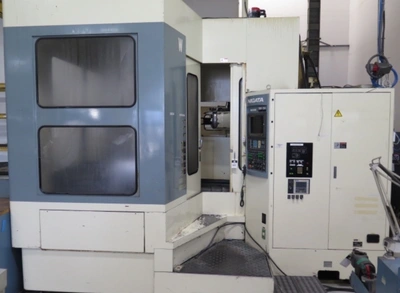

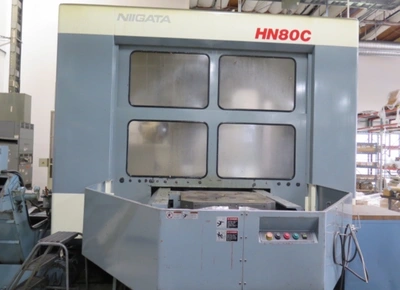

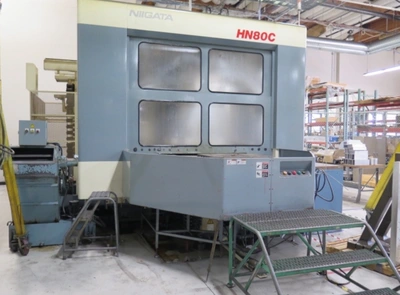

NIIGATA HN80C CNC Horizontal Machining Center #7920

NIIGATA HN80C Horizontal Machining Center #7920

SPECIFICATIONS:
Pallet Size(2): 31.5″ x 31.5″ (800 x 800 mm)
Max Pallet Load: 3,310 lbs
Table Indexing: 360 Position
X-Axis Travel: 50.0″ (1,270 mm)
Y-Axis Travel: 40.2″ (1.020 mm)
Z-Axis Travel: 36.2″ (920 mm)

Spindle Speed: 20 – 4,500 RPM
Spindle Drive Motor: 35 HP
Spindle Taper: CT 50
Auto Tool Change Capacity: 60 Tools
Max Tool Length: 21.7″
Max Tool Diameter: 9.4″
Max Tool Weight: 66 lbs
Pallet Top to Spindle Center: 0″ – 40.2″
Pallet Center to Spindle Nose: 7.9″ – 44.1″
Max Part Swing Diameter: 68.9″ (78″ with Door Open)
Rapid Traverse Rate (X,Y,Z): 709 IPM

Electrics: 230 V; 3 Ph; 60 Hz
Approx Floor Space (l x w x h): 285″ x 185″ x 148″
Approx Machine Weight: 42,000 lbs

EQUIPPED WITH:
Fanuc Series 15-MG/S CNC Control
Through Spindle Coolant
Table Indexing- 1 degree
Rigid Tap Function
Probe Interface

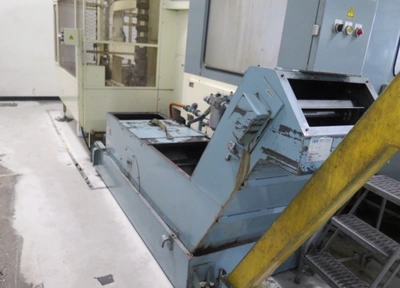

Chip Conveyor

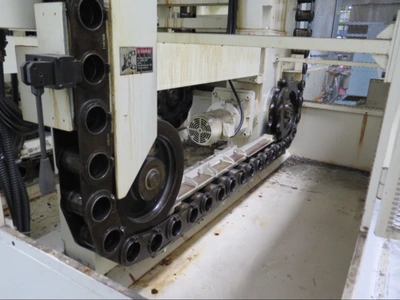

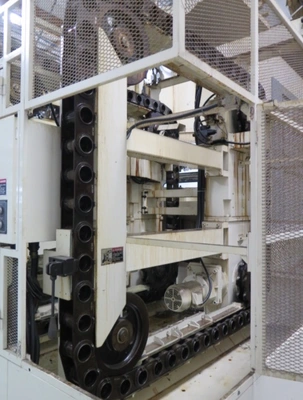

Automatic Tool Changer- 160 Tools

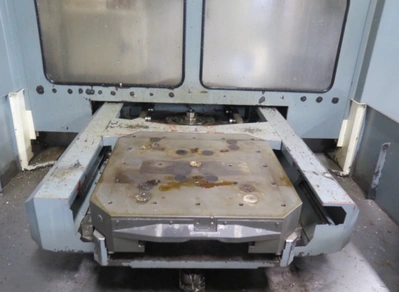

Automatic Pallet Changer- 2 Rotary Positions
