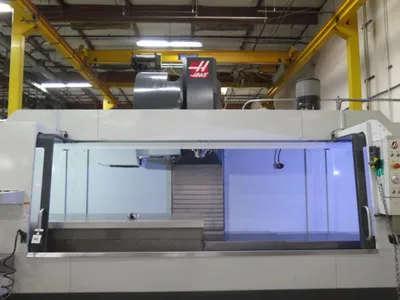

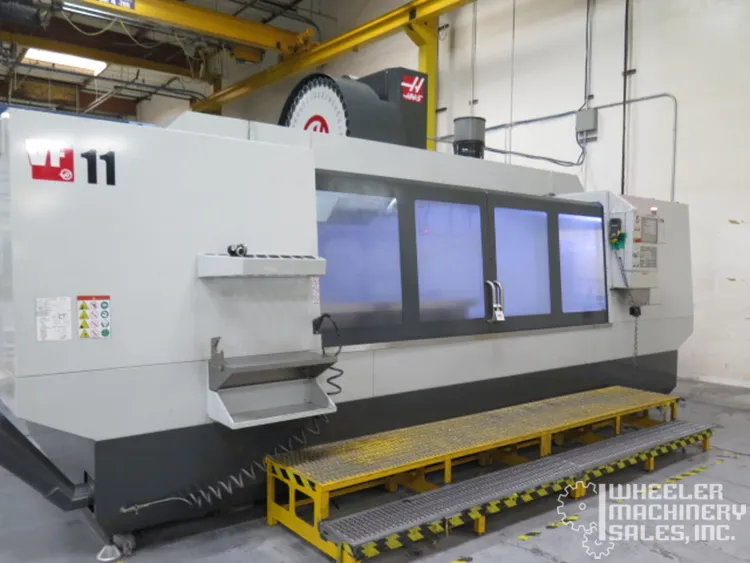

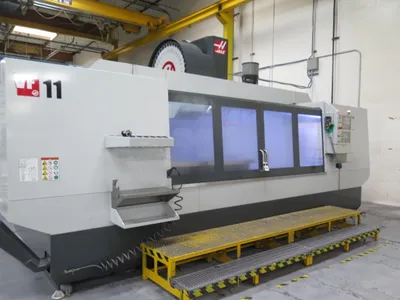

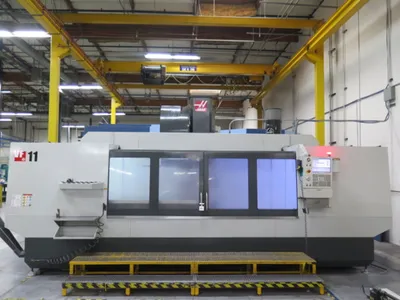

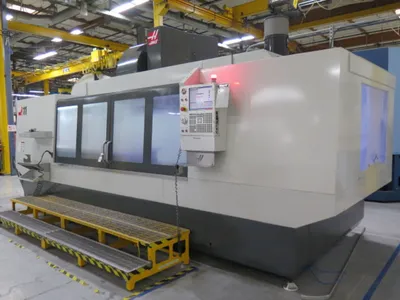

2018 HAAS VF-11/40 CNC Vertical Machining Center #7915

2018 HAAS VF-11/40 Vertical Machining Center #7915

SPECIFICATIONS:
Travels:
X-axis: 120 inches
Y-axis: 40 inches
Z-axis: 30 inches

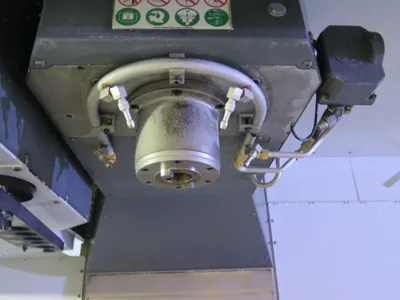

Spindle:
Motor: 30 horsepower (22.4 kW) vector drive
Speed: 15,000 rpm
Taper: CT 40
Torque: 90.0 ft-lbf at 2,000 rpm (standard)

Feedrates:
Max cutting: 360 inches per minute (9.1 m/min)
X-axis rapids: 360 inches per minute (9.1 m/min)
Y- and Z-axis rapids: 600 inches per minute (15.2 m/min)

Tool changer:
Capacity: 40
Weight (max. tool): 5.4 kg

Work area:

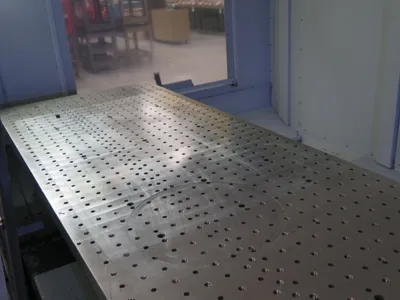

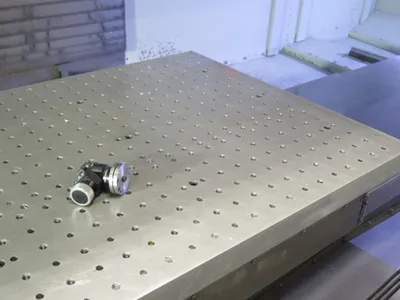

Table size: 120" x 28"

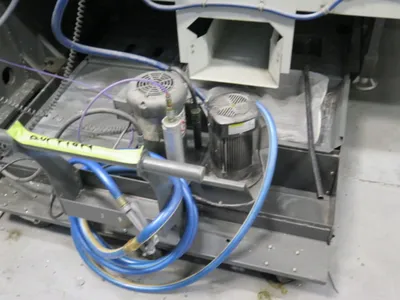

Coolant system: 95-gallon (360 liter) flood coolant system with a programmable nozzle
Overall weight: 29,000 lb.

EQUIPPED WITH:
High Speed Machining

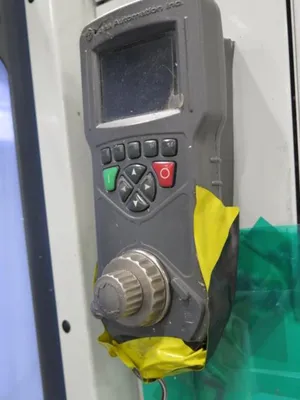

Digital Hand Wheel

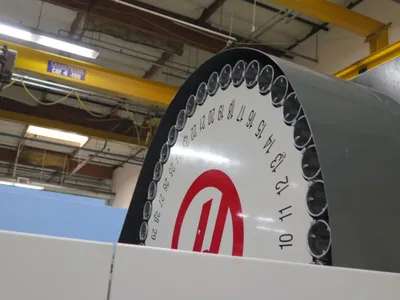

40-Station ATC

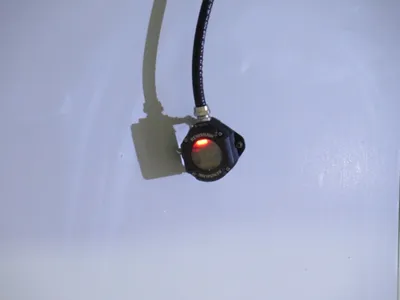

Renishaw Wireless System
Programmable Coolant Nozzle
M19 Spindle Orientation
VPS Editing
1GB Memory Expansion
Compensation Tables
Through Spindle Coolant
Royal Filtermist Mist Collector
Approximately 6700 RUN Hours
