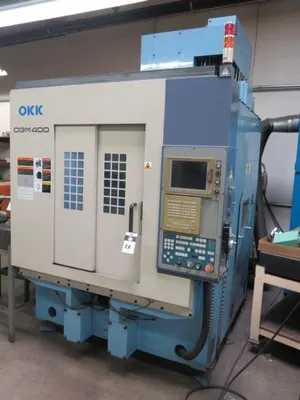

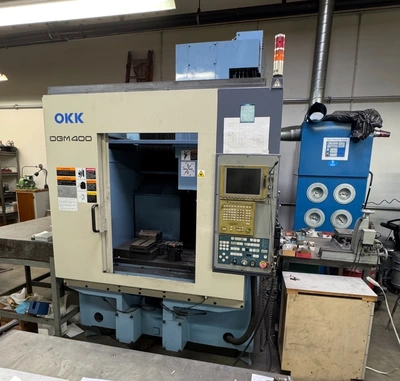

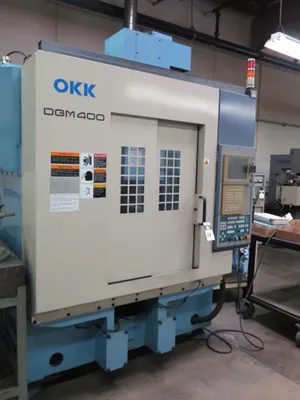

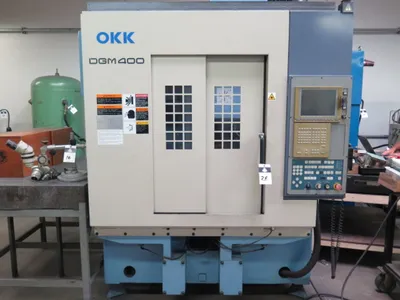

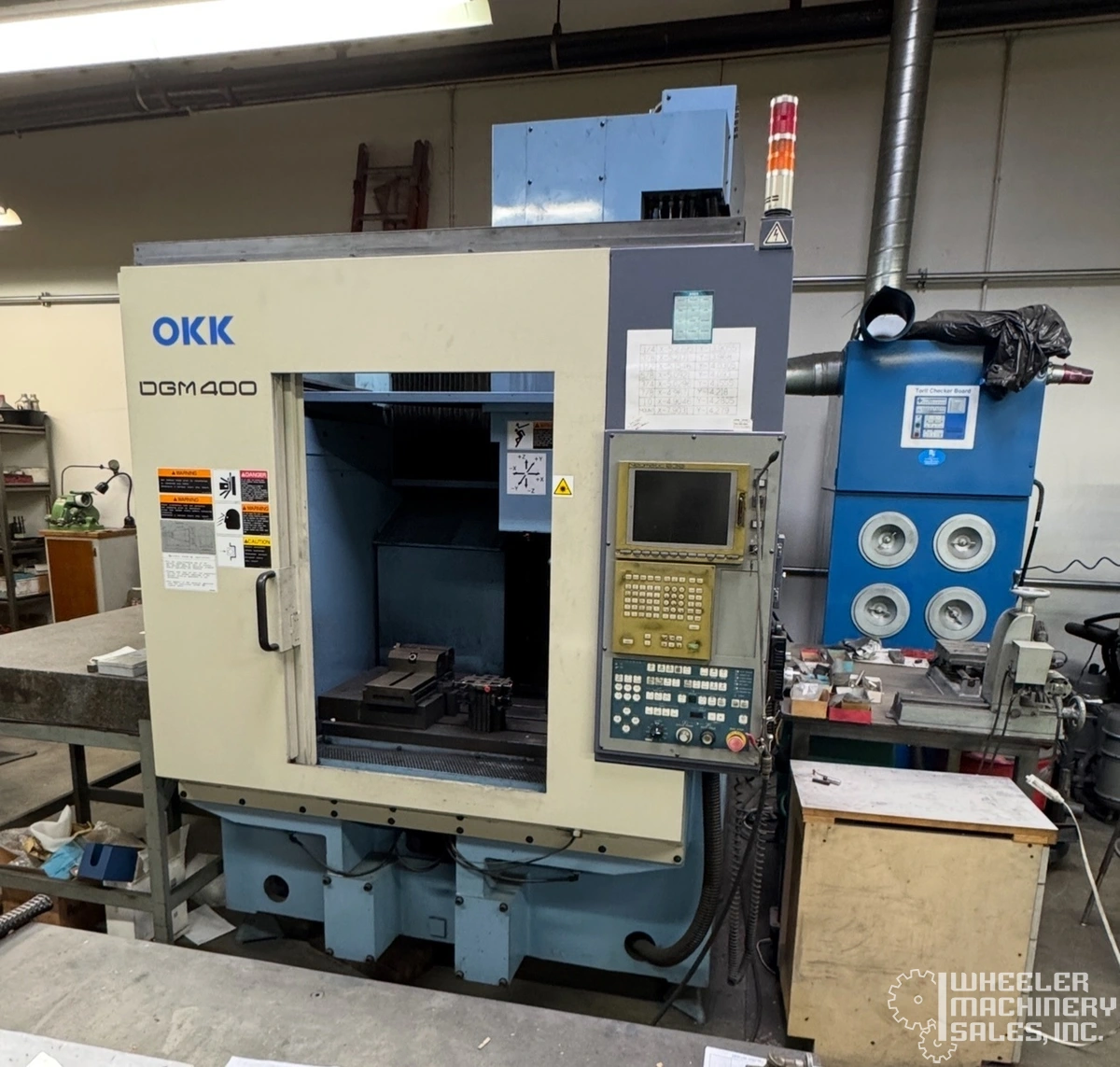

OKK DGM 400 High Speed Vertical Machining Center #7914 #2

OKK DGM 400 High Speed Vertical Machining Center #7914 #2

SPECIFICATIONS:
Travels:
X-Axis: 22.2″
Y-Axis: 16.1″
Z-Axis: 16.1″
Rapid Traverse Rates: 1890″ Per Minute
Cutting Feed Rates: 945″ Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 22.05″

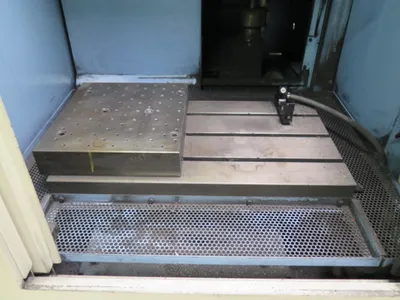

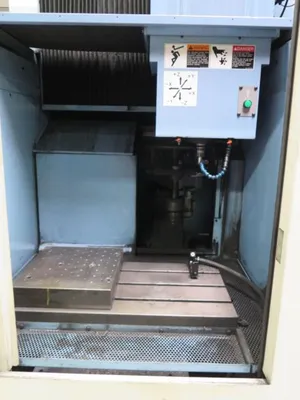

Table:
Length: 30.32″
Width: 18.7″
Number of Std T-Slots: 3
T-Slot Width: 0.79″
Max Weight on Table: 1100 lbs

Spindle:
Spindle: Taper Size: BT-30
Speed Range: 0 – 30,000 RPM
Spindle Type: Integral Drive
Spindle Power: 10 HP

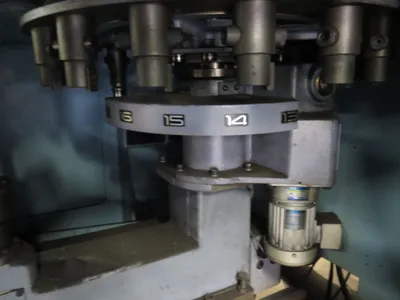

Automatic Tool Changer:
Capacity: 24
Tool Weight: 11.6 lbs
Max Tool Dia: 3.54″
Max Tool Length: 7.8″
Tool Changing Time: 4.5 Seconds

General:
Air Required: 80 psi, 4 scfm

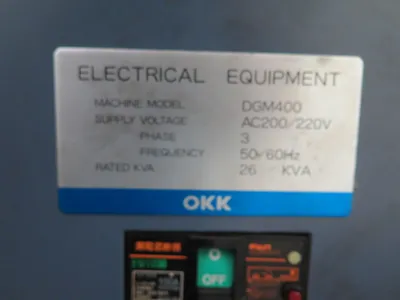

Power: 220v / 35 kva / 3-Phase
Overall Dimensions: 80″ x 90″ x 100″ High
Weight: 11000 lbs

EQUIPPED WITH:

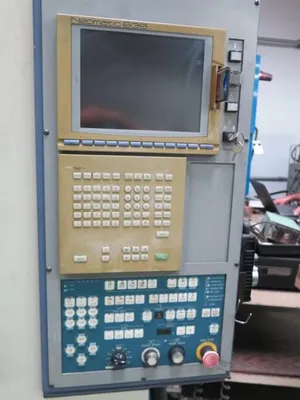

Okk Neomatic 635 CNC Control

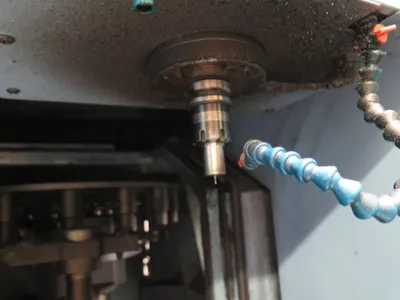

30,000 RPM High Speed Spindle
Bridge Type Construction
24 Automatic high speed tool changer
PCMCIA Card Slot
MPG Control
Rigid Tapping

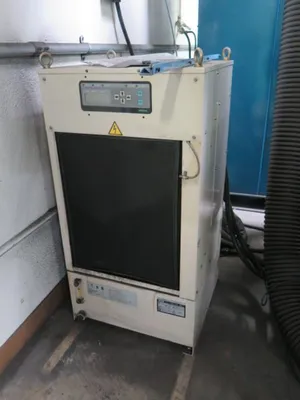

Spindle Chiller
RS-232
Telescopic way covers
Misc Tool Holders
