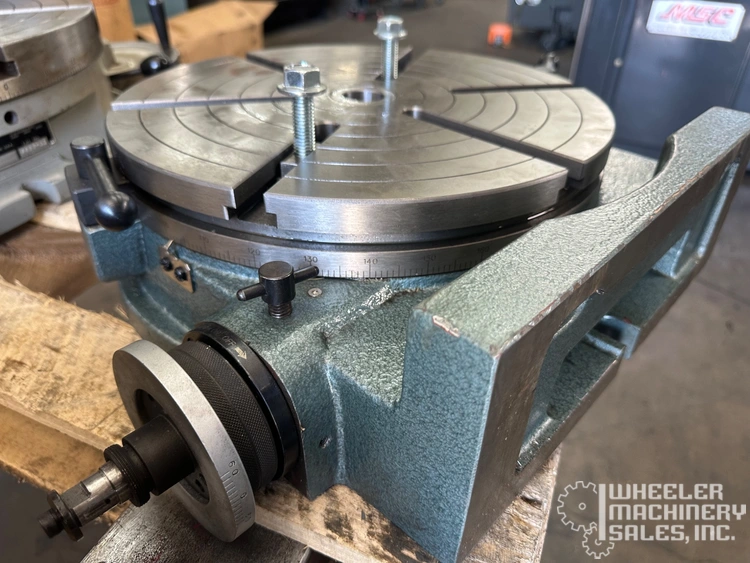

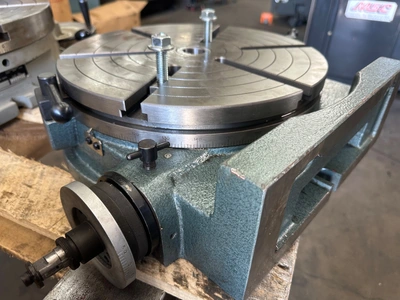

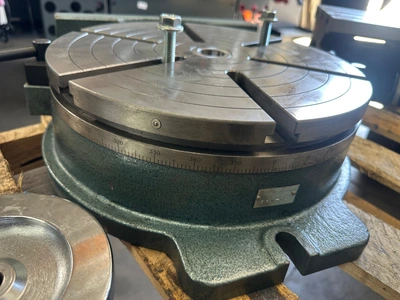

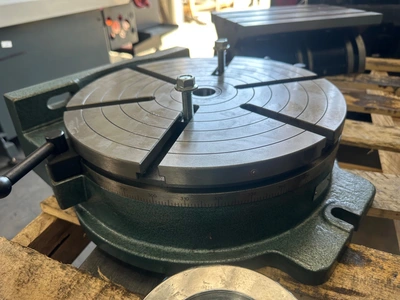

YUASA 14" Table Diameter Vertical Rotary Table #7899 #1

YUASA 14" Table Diameter Vertical Rotary Table #7899 #1

Setting Position Vertical
Tilting No
Table Diameter 13.7813 in; 14 in; 350.04 mm
T-slot Width 13.97 mm; 0.55 in
Table Diameter (Decimal Inch) 13.7813
T-Slot Width (Decimal Inch) 0.5500
Number Of T-slots 6
Centerline Height 9.06 in; 230.12 mm
Center Hole Concentricity 0.02 mm; 8.0E-4 in
Cross-slide No
Gear Ratio 1900-01-03T18:01
Indexing Accuracy 45 s
Flatness Of Surface 6.0E-4 in; 0.02 mm
Parallelism - Clamp Surface To Base 0.02 mm; 8.0E-4 in
Squareness - Clamp To Angle Face 0.01 mm; 4.0E-4 in
Squareness - Clamp To Center Slot 0.02 mm; 8.0E-4 in
Base Width 5.43 in; 137.92 mm
Overall Height 13.43 in; 450 mm; 17.72 in
Centerline Height (mm) 9.06 in; 230.12; 230.12 mm
Centerline Height (Inch) 9.06 in; 230.12 mm
Center Taper 4MT
Vernier Reading (sec.) 10.00
Squareness - Clamp to Center Slot (Decimal Inch) 0.0008
Squareness - Clamp to Angle Face (Decimal Inch) 0.0004
Center Hole Concentricity (mm) 0.02
Flatness of Surface (Decimal Inch) 0.0006
UNSPSC Code 23242120
Parallelism - Clamp Surface to Base (Decimal Inch) 0.0008
Base Width (mm) 5.43 in; 137.92; 137.92 mm
Base Width (Decimal Inch) 5.43 in; 137.92; 5.4300; 137.92 mm
Base Length (mm) 13.7800; 350.01
Overall Height (mm) 13.43 in; 450.00; 450 mm; 17.72 in
Overall Height (Inch) 13.43 in; 450 mm; 17.72 in
