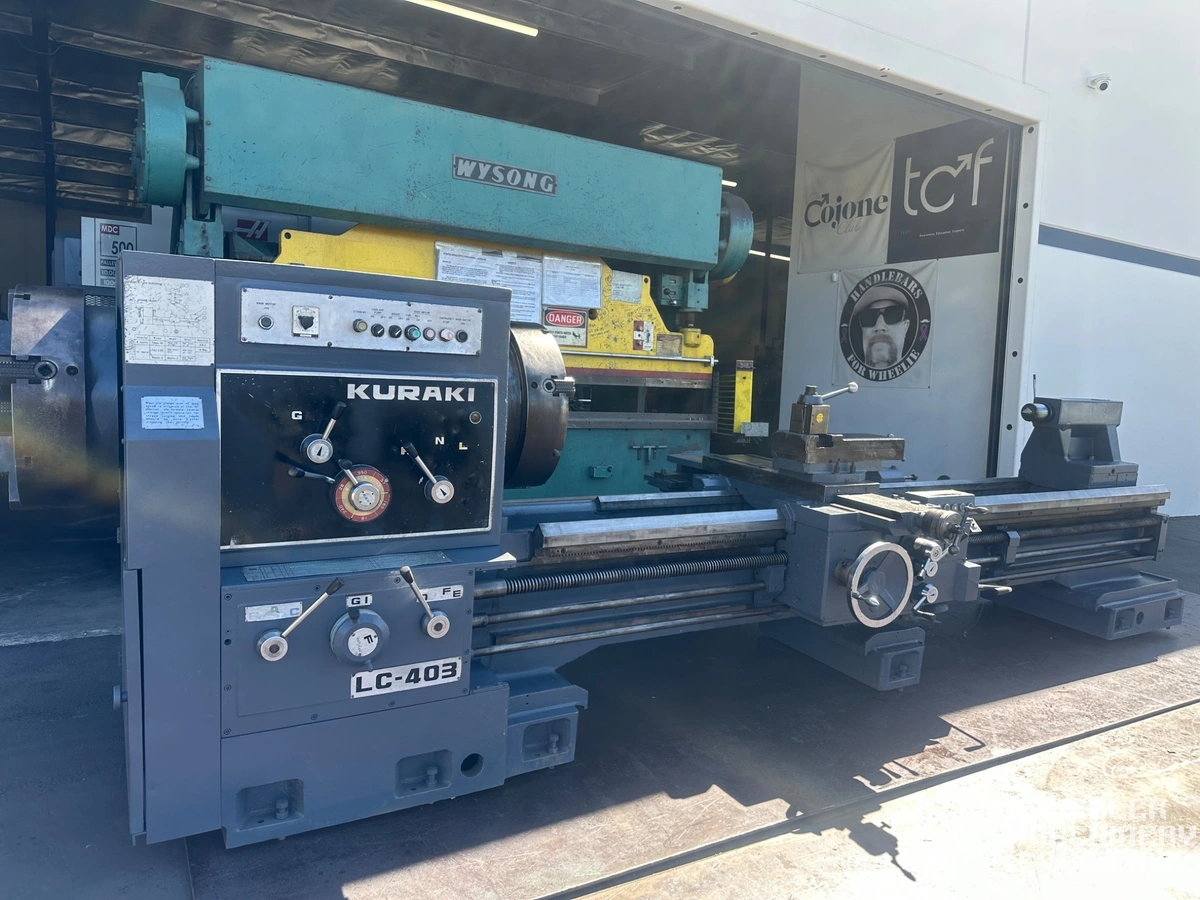

1982 KURAKI LC-403 Hollow Spindle Lathe, 12.5" Hole 33" x 120" #7897 #2
Have one to sell?
$57,500.00 USD
ConditionUsed
1 available
1982 KURAKI LC-403 Hollow Spindle Lathe, used. Features: 33" swing, 130" centers, 12.5" spindle bore. Ideal for oil field applications. Reliable KURAKI performance ready to meet your machining needs.
1982 KURAKI LC-403 Hollow Spindle Lathe, 12.5" Hole #7897 #2
SPECIFICATIONS:
Swing Over Bed: 33″
Swing Over Cross Slide: 20.75″
Distance Between Centers: 120″
Bed Width: 23.5″
Spindle Speeds: (12) 6 – 350 RPM
Spindle Motor: 30 HP
Spindle Bore: 12.5″
Spindle Nose: A2-20
Inch Threads: (41) 1.75 – 56 tpi
Metric Threads: (41) 0.75 – 28 mm
Dimensions (approximate): 244″ X 72″ X 73″ High
Weight (approximate): 21,000 Lbs.
EQUIPPED WITH:

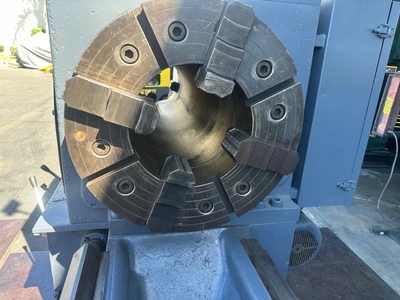

24″ Front & Rear 4-Jaw Chucks
Tailstock
Swiveling Compound
Tool Post
Taper Attachment
Thread Dial
Coolant
Rapid Traverse
