2007 Okuma Millac 800VH 5-Axis CNC Horizontal Machining Center #7896

Okuma Millac 800VH 5-Axis CNC Horizontal Machining Center

Specifications (subject to buyer verification):
X-Axis Travel: 40.16” (Column Horizontal)
Y-Axis Travel: 40.16” (Pallet Front/Back)
Z-Axis Travel: 40.16” (Spindle Head Vertical)
Pallet Size: 31.49” x 31.49”
Max work dimension: 31.49” x 31.49”
Max load capacity: 2,210 lbs
Indexing angle (any NC orientation) : .001 Deg
Spindle speed: 100 ~ 10,000 RPM
Spindle taper hole: No. 50
Spindle swivel angle: 150
Indexing angle (curve indexing) : 1
Indexing angle (NC arbitrary indexing): 0.001 mm
Spindle Motor: 30/25 HP (15 min/Cont)
Tool shank: CAT50
Tool Capacity: 80 ATC

Equipped With:

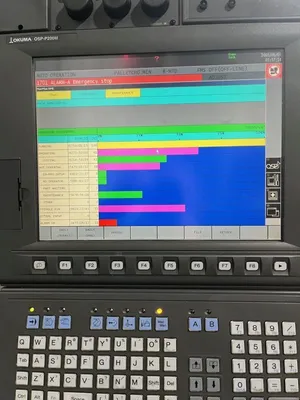

OSP-P200M

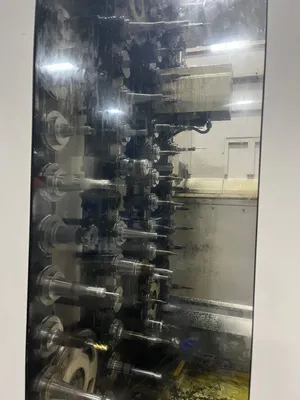

80 ATC
2-Station Pallet Changer
Thru Spindle Coolant
Chip Conveyor
