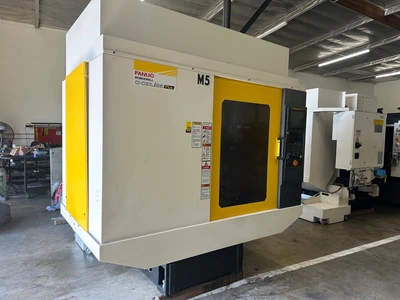

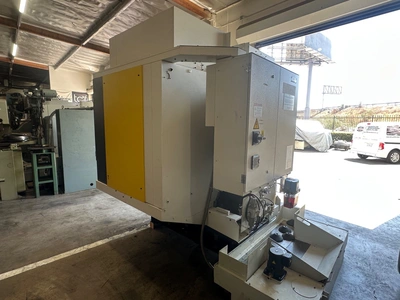

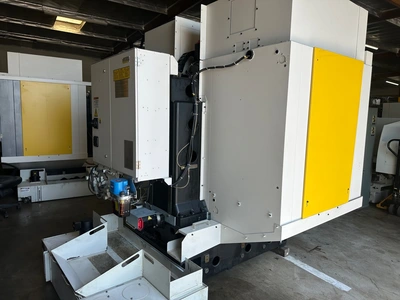

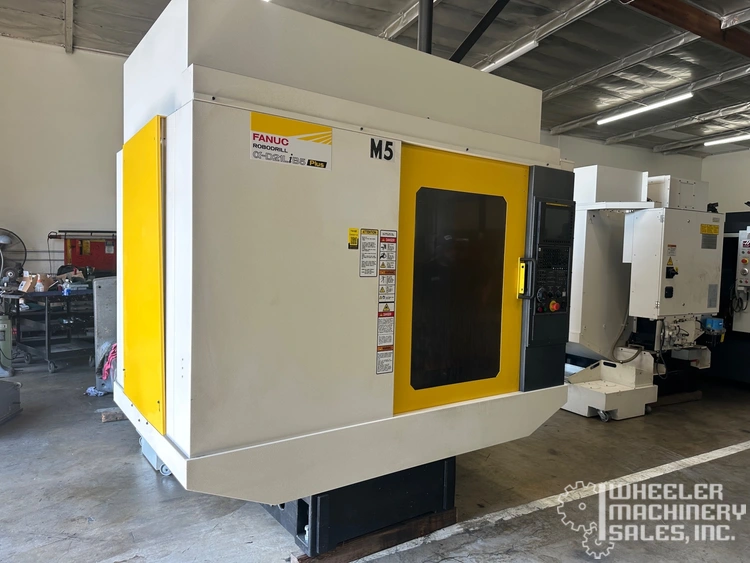

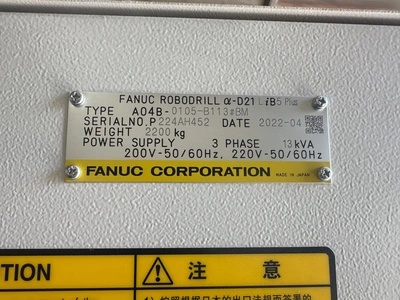

2022 FANUC Robodrill A-D21LiB5 Plus Vertical Machining Center #7894 #2
Have one to sell?
$59,500.00 USD
ConditionUsed
1 available
2022 FANUC Robodrill A-D21LiB5 Plus Vertical Machining Center, a reliable used CNC solution from a leading brand, ideal for enhancing machining precision and efficiency. Explore its features to boost your production capabilities.
2022 FANUC Robodrill A-D21LiB5 Plus Vertical Machining Center #7894 #2
GENERAL SPECIFICATIONS
X Axis Travel: 19.68″
Y Axis Travel: 15.74″
Z Axis Travel: 12.99″
Rapid Rate X Axis: 2,126 IPM
Rapid Rate Y Axis: 2,125 IPM
Rapid Rate Z Axis: 2,125 IPM

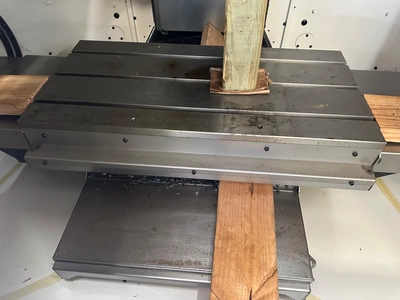

Table Size: 25.59″ x 15.74″
Max Table Load: 661 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: BT30 BIGPLUS CT

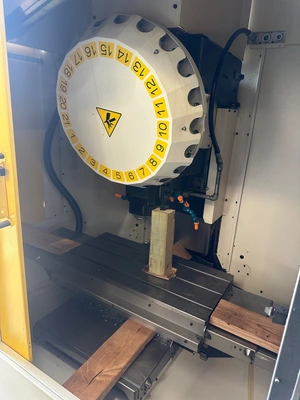

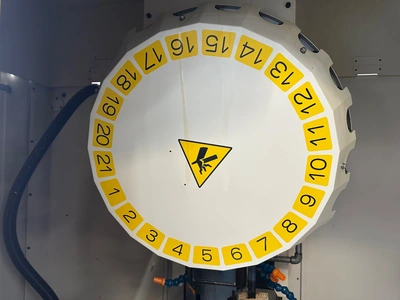

Tool Changer: 21 ATC
Dimensions: 70″ x 80″ x 100″
Weight: 5,000 LBS
EQUIPPED WITH:

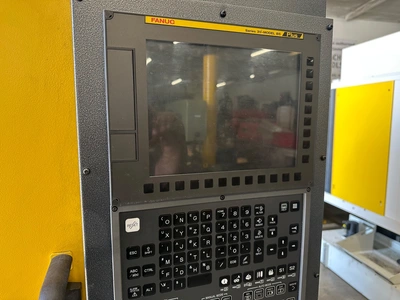

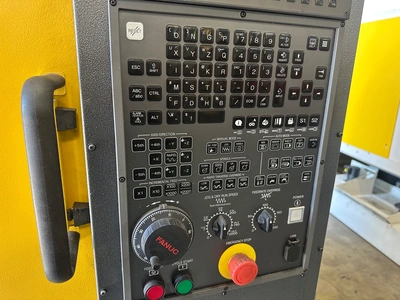

Fanuc 31iB5 Control
Blumco Pico Tool Setter
Renishaw Probe OMP40
Air Turbine Air Spindle
Note:
The "Plus" designation indicates an advanced version with features
like Ai Contour Control I and thermal growth compensation
