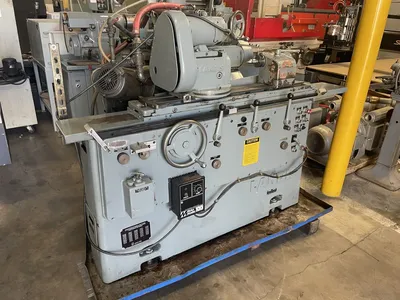

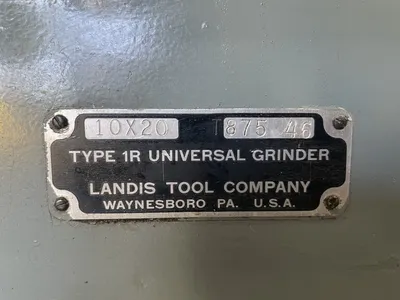

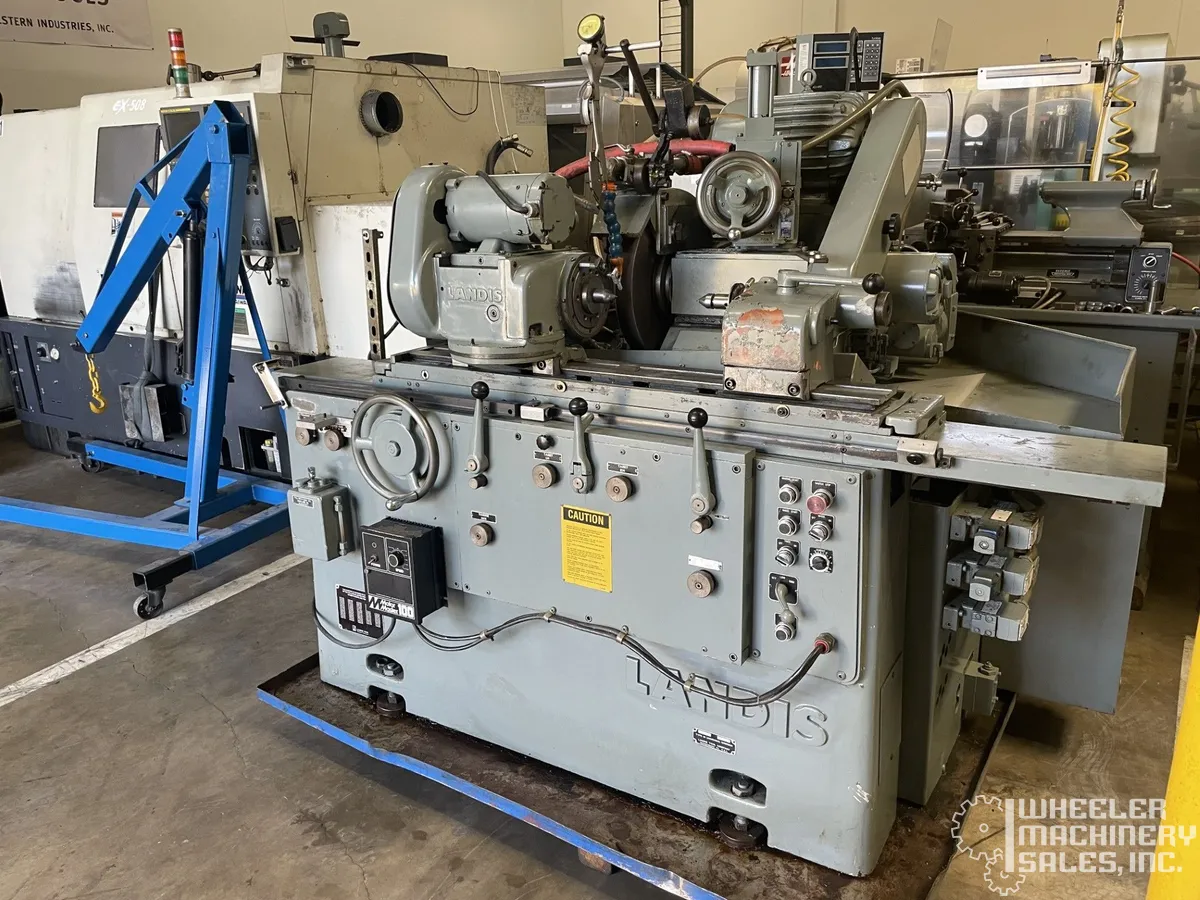

LANDIS 10X20 1R OD Cylindrical Grinder #7886 #2

LANDIS 10X20 1R OD Cylindrical Grinder #7886 #2

SPECIFICATIONS:
Swing Over Table, Maximum: 10.875"
Grinding Diameter, Maximum: 10"
Distance Between Centers, Nominal: 20"
Grinding Wheel Diameter, Minimum: 7.5"
Grinding Wheel Diameter, Standard: 12"
Grinding Wheel Width, Maximum: 1.5"
Grinding Wheel Width, Standard: 1"
Grinding Wheel Hole Diameter: 5"
Table Swivel Taper: 4 IPF
Table Swivel Angle: 20-DEGREES
Headstock Swivel Range: 120-DEGREES
Grinding Wheelhead Swivel Range: 90-DEGREES
Workhead Center Taper: #10 JARNO
Tailstock Center Taper: #6 JARNO
(2) Spindle Speeds, Range: 2000 & 2530 RPM
Workhead Spindle Speeds, Range: 60 to 600 RPM
Table Longitudinal Feeds, Infinit:e 2 to 240 IPM
Grinding Wheelhead Spindle Motor: 5 HP/1775 RPM

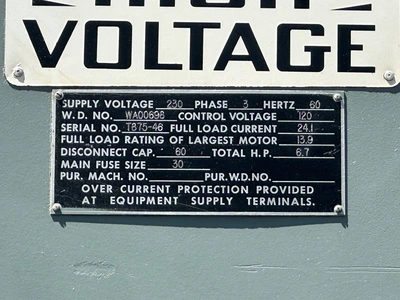

Electrical System: 220-440/3/60
Floor Space Required, L x D: 8'10" x 4'2"
Weight, Approximately: 4100 LBS
