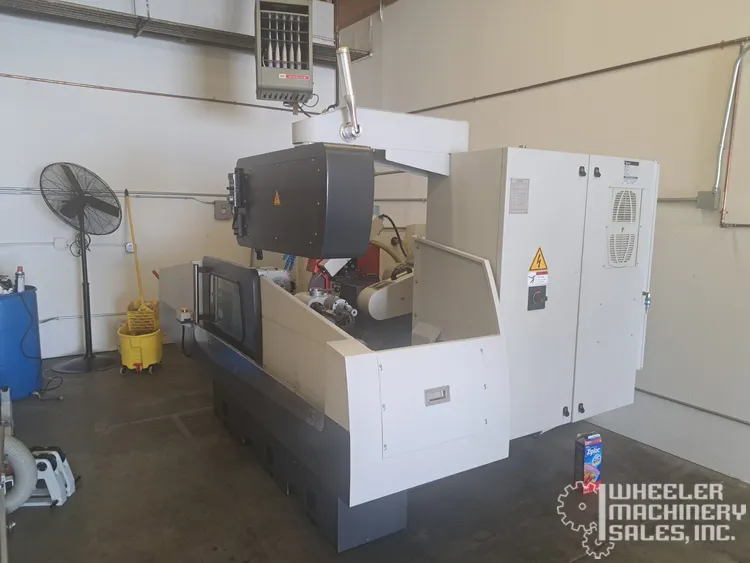

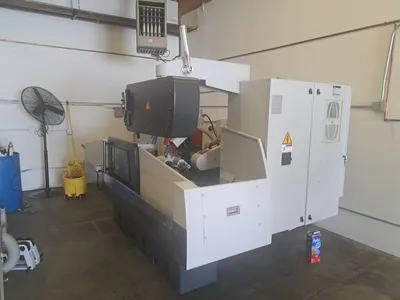

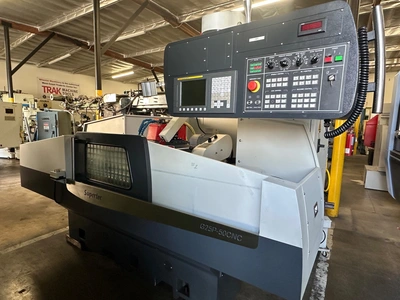

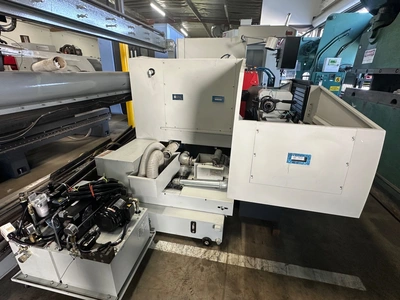

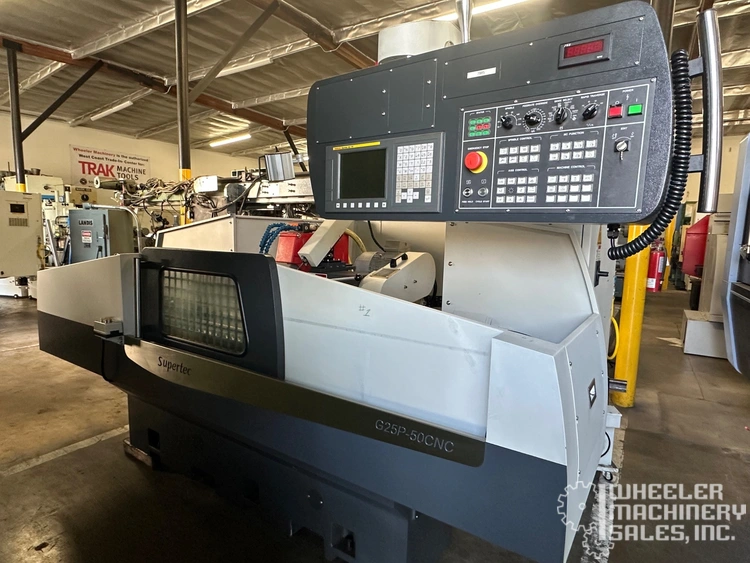

2021 SUPERTEC G25P-50CNC CNC Universal Cylindrical Grinder #7885 #2

2021 SUPERTEC G25P-50CNC CNC Universal Cylindrical Grinder #7885 #2

SPECIFICATIONS:
GENERAL CAPACITY
SWING OVER TABLE: .................... 10"
DISTANCE BETWEEN CENTERS: ............ 20"
MAX. GRINDING DIAMETER: .............. 10"
MAX. LOAD BETWEEN CENTERS: ........... 176 LBS

GRINDING WHEEL
DIAMETER X WIDTH X BORE: ............. 16"X 1.5"X 5"
WHEEL SPEED: ......................... 1940 RPM
MAX. PERIPHERAL SPEED: ............... 118 FT/SEC
WHEELHEAD
SLIDING ANGLE: ....................... 90 DEGREES
AUTOMATIC RAPID TRAVERSE: ............ 236 IN/MIN
INFEED TRAVEL: ....................... 6"
MIN. INCREMENT INFEED: ............... 0.000010"

TAILSTOCK:
QUILL TRAVEL ......................... 1"
CENTER TAPER: ........................ MT3

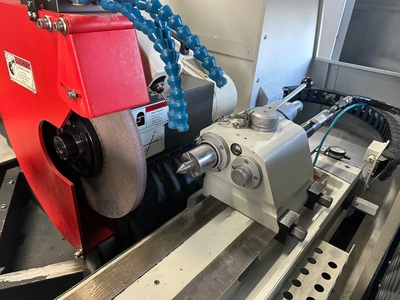

WORKHEAD:
SPINDLE SPEED (VARIABLE): ............ 50~500 RPM
CENTER TAPER: ........................ MT3
SPINDLE TYPE: ........................ FIXED & ROTARY
DIAMETER OF BORE: .................... 0.79"

INTERNAL GRINDING SPINDLE
SPINDLE SPEED: ....................... 14000 RPM (STD.) OR 25000 RPM (OPT.)
MAX. GRINDING BORE: .................. 0.9375"~ 2.75"
MAX. GRINDING LENGTH: ................ 2.75"
MAX. CHUCKING LENGTH: ................ 10.75"
MAX. CHUCKING DIAMETER: .............. 4.33"

TABLE:
SWIVELING ANGLE ...................... 7 DEGREES
(C.C.W):
RAPID FEEDERATE: ..................... 0-315 IN/MIN
MIN. INCREMENT FEED: ................. 0.0001"

MOTORS
WHEEL SPINDLE MOTOR: ................. 5 HP
WORKHEAD MOTOR: ...................... 0.25 HP
HYDRAULIC PUMP: ...................... 1 HP
LUBRICATION PUMP: .................... 0.25 HP
COOLANT PUMP: ........................ 0.125 HP
WHEELHEAD (X AXIS) MOTOR [FANUC]: .... 0.8 HP
TABLE (Z AXIS) MOTOR [FANUC]: ........ 0.8 HP

MACHINE
NET WEIGHT (SEMI-ENCLOSED): .......... 4400 LBS
GROSS WEIGHT INCLUDING PACKING: ...... 5500 LBS
PACKING DIMENSION: ................... 110"X69"X81"(L X W X H)

STANDARD ACCESSORIES:

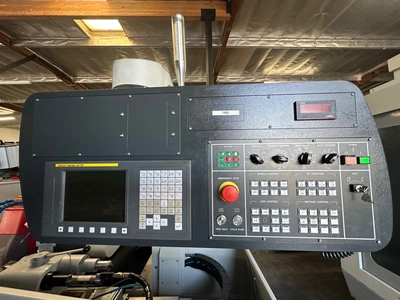

- FANUC OI-TC CNC CONTROLLER
- DIAMOND DRESSER
- TABLE DIAL GAUGE
- WHEEL EXTRACTOR
- HALOGEN LAMP
- BALANCING STAND W/ ARBOR
- INFINITE VARIABLE WORKHEAD
- GRINDING WHEEL W/ FLANGE
- SEMI-ENCLOSED SPLASH GUARD
- LEVELING SCREWS W/ BLOCKS
- OPERATION MANUAL WITH PARTS LIST
- TOOL BOX W/ ADJUSTING TOOLS
- COOLANT SYSTEM W/ MAGNETIC SEPARATOR
- CARBIDE TIP CENTERS
- LUBE OIL TEMPERATURE REGULATOR (G32A/G38A)
