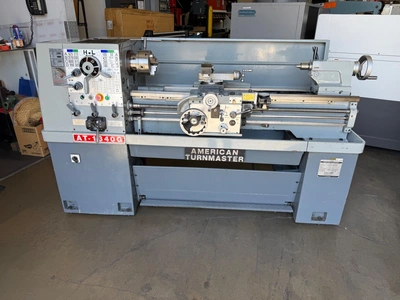

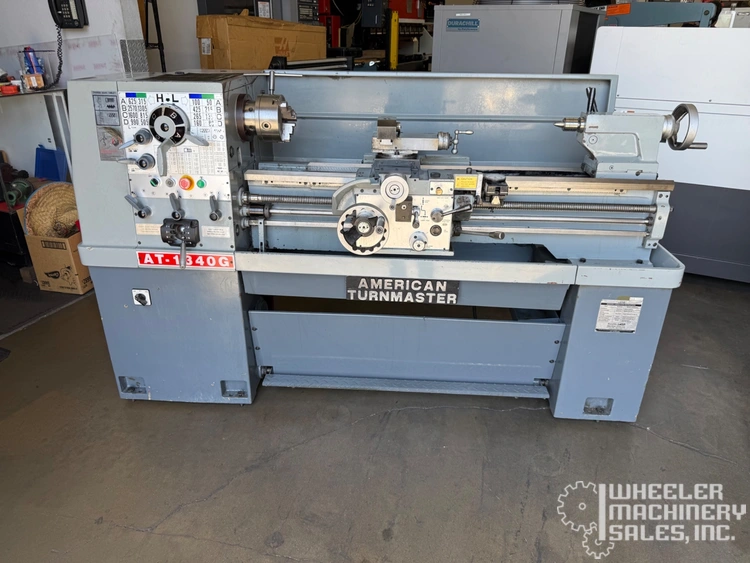

American Turnmaster (Lagun) AT-1340G Engine Lathe #7884 #1

American Turnmaster (Lagun) AT-1340G Engine Lathe #7884 #1

SPECIFICATIONS:
Capacity:

Swing over bed 13.39” (340 mm)
Swing over cross slide 8.27” (210 mm)
Distance between centers 39.37” (1,000 mm)

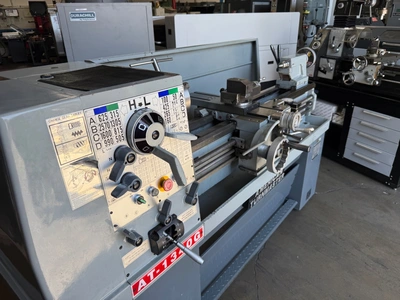

Headstock:

Spindle nose, Cam-Lock D1-4

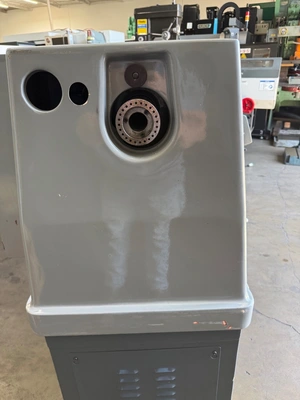

Spindle bore 1.57” (40 mm)
Spindle speed (Hi-Low) 16 steps
Spindle speed range: STANDARD 50 to 2,570 RPM
Low range 50-80-135-215-315-505-815-1,305
High range 100-160-265-425-625-990-1,600-2,570

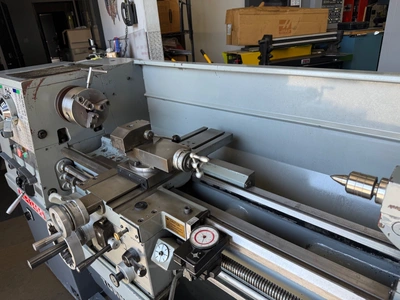

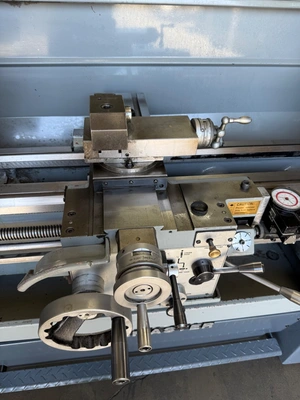

Carriage:

Length on bed 15.75” (400 mm)
Width of bridge 15.12” (384 mm)
Cross slide travel 7.09” (180 mm)
Top slide travel 3.94” (100 mm)

Bed:

Number of V ways 3 “V’ ways
Bed width 9.06” (230 mm)
Swing in gap 20.16” (512 mm)
Gap length from faceplate 5.91” (150 mm)

Tailstock:

Quill diameter 1.97” (50 mm)
Quill center M.T.3
Quill travel 4.41” (112 mm)

Feeds and threads:

Range of whit worth threads & No. 2-72 T.P.I. (45)
Range of metric threads & No. 0.2-14 (39)
Range of D.P. & No. 8-44 (21)
Range of M.P. & No. 0.3-3.5 (18)
Longitudinal feed 0.002-0.067” (0.05-1.7 mm)
Cross feeds 0.0009-0.034” (0.025-0.85 mm)

Motor:

Main motor, 2-speed, 3/60/220 V 5 HP (3.73 kW)
Coolant pump 0.12 HP (0.09 kW)

EQUIPPED WITH:

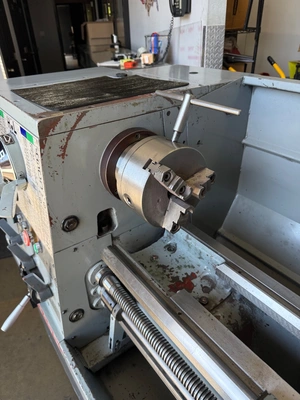

3 Jaw Chuck
Tailstock
