SMITHY Classic Granite 1324 3 in 1 Mill/Drill/Lathe Combo #7883
Have one to sell?
$4,500.00 USD
ConditionUsed
1 available

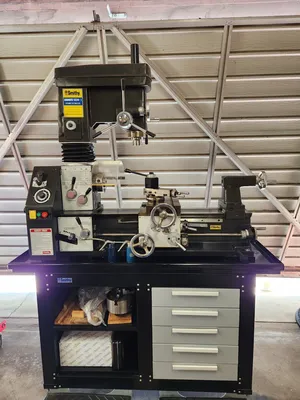

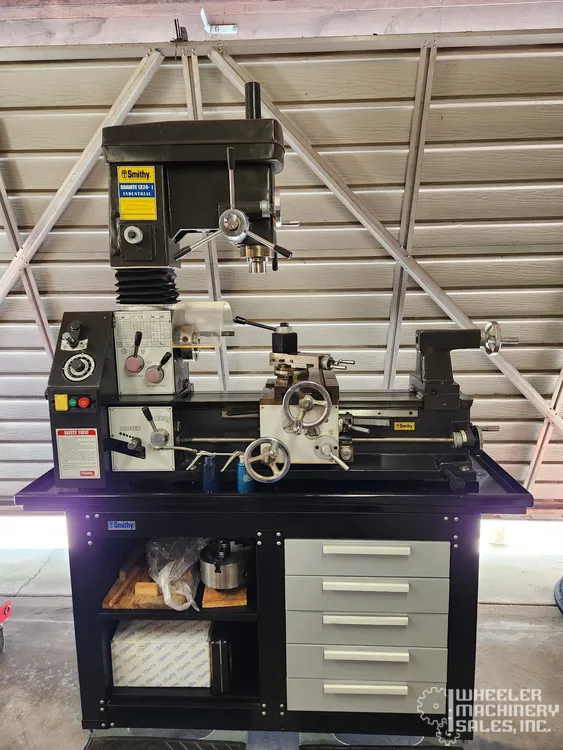

SMITHY Classic Granite 1324 3-in-1 used mill/drill/lathe combo. A versatile choice for machining needs, combining milling, drilling, and lathe capabilities in one efficient unit. Ideal for workshops requiring multifunctionality.
SMITHY Classic Granite 1324 3 in 1 Mill/Drill/Lathe Combo #7883
Lathe Specifications:
• Swing: 13" (330.2 mm)
• Bed Length: 24"
• Spindle Bore: 1.125"
• Spindle Speeds: Variable, 50-3000 RPM
• Spindle Accuracy TIR: 0.00078"
• Spindle Taper: R8
• Motor: 1.5 HP, 110V (220V available by request)
• Phase: Single
• Power Feed: Both X and Y axes
• Quick Change Gearbox: For threading
• Dial Calibration on Toolpost: 0.001" (0.0254 mm)
• Feed Rate (X-Axis): 0.003" - 0.020"
• Feed Rate (Y-Axis): 0.001" - 0.006"
• Headstock Taper: MT4
Mill Specifications:
• Z-axis head travel: 4-3/8"
• Drill Chuck Size: 5/8"
• Spindle Speeds: 0–2,800 RPM
• Spindle Taper: R8
• Table Size: 6-3/4" x 17-3/4"
• T-slot size: 7/16"
• Mill Head: Included
• Power Feed: Both X and Y axes
• Powered Mill Head Lift: Yes, with button control
• Gear Drive Mill Quill with Auto-Feed: Yes
