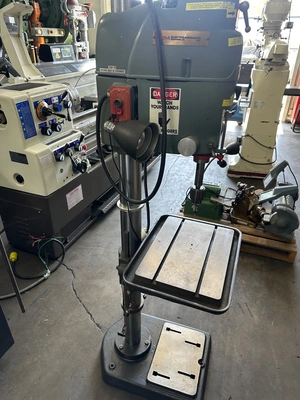

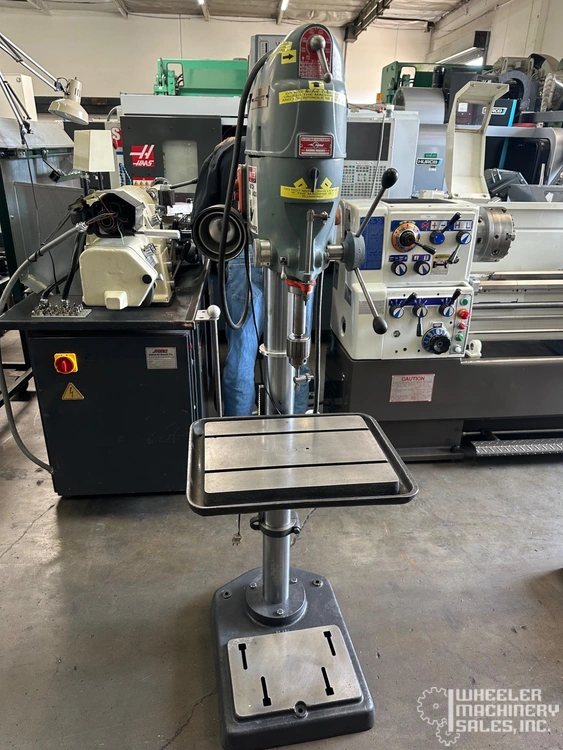

ELECTRO-MECHANO 601J VARIABLE SPEED GEARED HEAD DRILL PRESS 16" #7869 #1
Have one to sell?
$2,250.00 USD
ConditionUsed
1 available
ELECTRO-MECHANO Model 601J used 16" vertical drill press offers heavy-duty and sensitive drilling with a two-speed range, direct drive, or geared, from 150-4,000 RPM. Features 12" x 16-1/2" table, 4-3/4" stroke, 300 lbs, and Morse #2 taper.
ELECTRO-MECHANO VARIABLE SPEED GEARED HEAD DRILL PRESS 16" #7869 #1

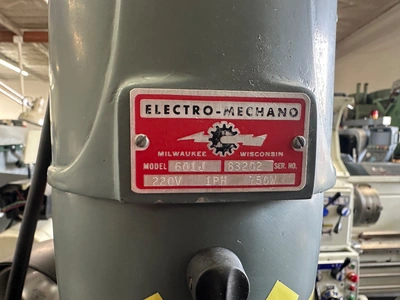

Model 601J
Serial # 83202
DRILL TO CENTER OF OF CIRCLE.. 16"
SPINDLE TO COLUMN ............ 8"
COLUMN DIAMETER............... 3-1/2"

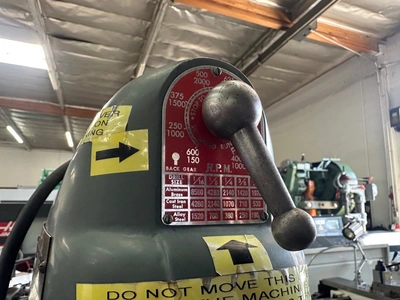

SPINDLE SPEEDS INFINITELY VARIABLE:
GEARED .................... 150 - 1,000 RPM
DIRECT DRIVE .............. 600 - 4,000 RPM
SPINDLE STROKE................ 4-3/4"
SPINDLE TAPER................. #2 MORSE
QUILL DIAMETER ............... 1-3/4"
TABLE SIZE.................... 12" X 16-1/2"
WORKING SURFACE OF BASE ...... 10" X 14"
SPINDLE NOSE TO TABLE MAX .... 36"
SPINDLE NOSE TO BASE MAX ..... 44"
APPROXIMATE WEIGHT ........... 300 LBS.
APPROXIMATE DIMENSIONS ....... 20" x 25" x 60"H
- TWO SPEED RANGES DIRECT DRIVE OR GEARED
