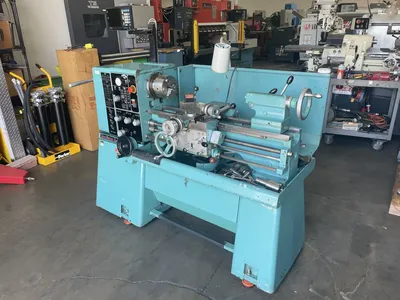

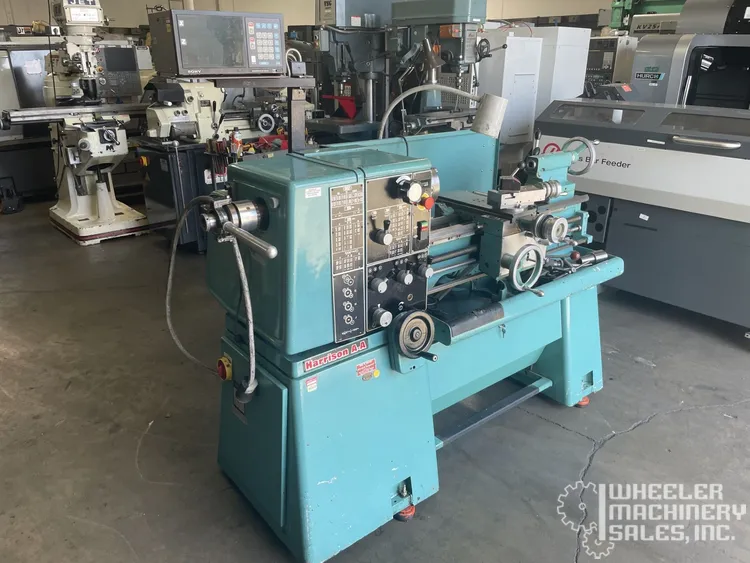

HARRISON VS300 AA 13" x 25" TOOLMAKER'S LATHE #7861 #1

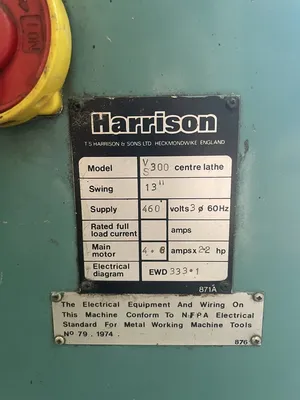

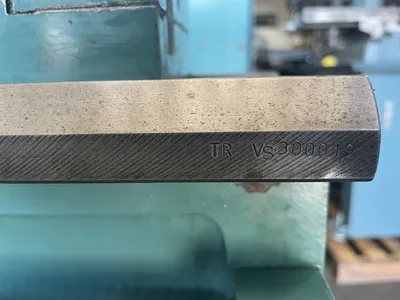

SERIAL # TR VS 300019
SPECIFICATIONS:
SWING OVER BED & CARRIAGE WINGS ..... 13"
SWING OVER CROSS SLIDE .............. 8-1/4"
DISTANCE BETWEEN CENTERS ............ 25"
SPINDLE NOSE, CAMLOCK ............... D1-4"
HOLE THRU SPINDLE ................... 1-1/2"
WIDTH OF BED ........................ 8"
INFINITELY VARIABLE SPINDLE SPEEDS (3 RANGES):
LOW, THRU GEARS ................... 35-180 RPM
INTERMEDIATE, THRU GEARS .......... 150-800 RPM
HIGH, THRU DIRECT DRIVE ........... 500-3000 RPM
THREADING RANGE:
INCH .............................. 4 TO 112 TPI
METRIC ............................ .1 TO 7 mm
FEEDS:
INCH (21) ......................... .0005 TO .040
METRIC (21) ....................... .015 TO .1 mm
TAILSTOCK SPINDLE DIAMETER .......... 1-21/32"
TAILSTOCK SPINDLE TRAVEL ............ 4-3/8"
TAILSTOCK SPINDLE TAPER ............. 3MT
APPROX WEIGHT ....................... 1500 LBS
APPROX DIMENSIONS ................... 74" x 42" x 44"
