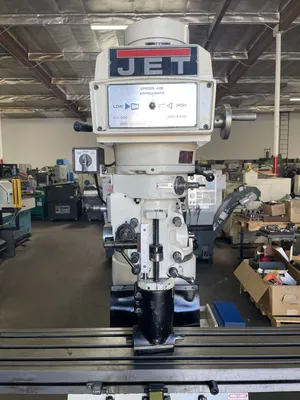

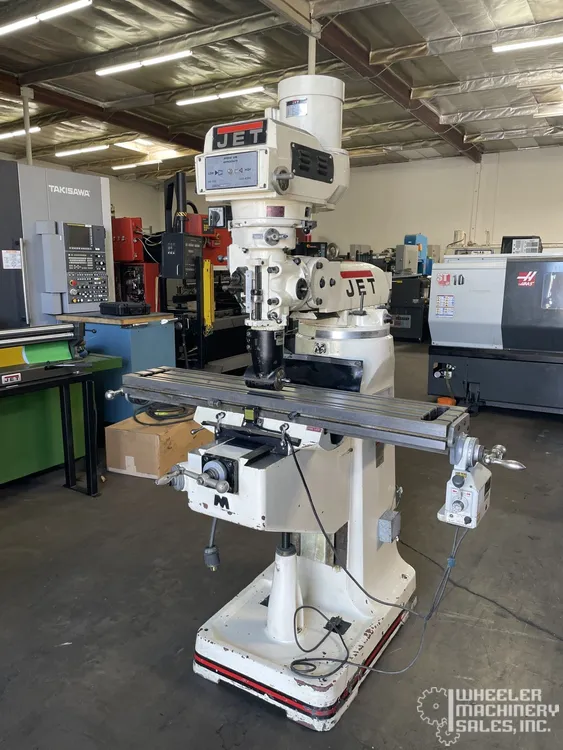

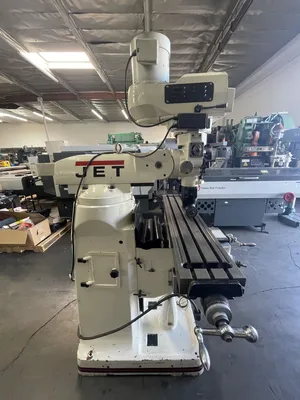

JET JTM-4VS Vertical Mill #7853 #1

JET JTM-4VS Vertical Mill #7853 #1

SPECIFICATIONS:
Style (Type): Variable Speed R8
Spindle Taper (In. x TPI): R-8
Table Size (L x W) (In.): 9 x 49
Quill Diameter (In.): 3-3/8
Number of Spindle Speeds: Variable
Range of Spindle Speeds (RPM): 60 - 4,200
Quill Down Feed Rates (IPR): .0015 - .003 - .006
Spindle Travel (In.): 5
Head Movement (Deg.): 90° R & L, 45° F & B
Max Distance Spindle to Table (In.): 17-1/2
Distance Spindle to Column (Max.) (In.): 19
Distance Spindle to Column (Min.) (In.): 4-1/2
Collet Capacity: 1/8 - 7/8
Table Longitudinal Travel (In.): 34
Table Longitudinal Travel With Powerfeed (In.): 28-3/4
Table Cross Travel (In.): 12

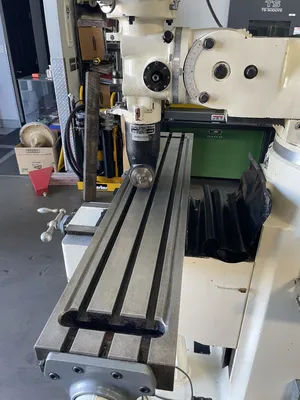

T-Slots Number and Size (In.): 3 and 5/8
T-Slot Centers (In.): 2-1/2
Work Table Weight Capacity (Lbs.): 660
Travel of Knee (In.): 14-1/2
Travel of Ram (In.): 13-3/8

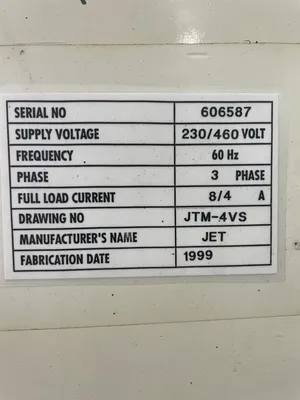

Motor (HP): 3 HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.): 66" x 63" x 85"
Weight: 2420 lbs.

EQUIPPED WITH:
One Shot Lube
X-Axis Power Feed
Right Angle Head
Variable Speed Head
