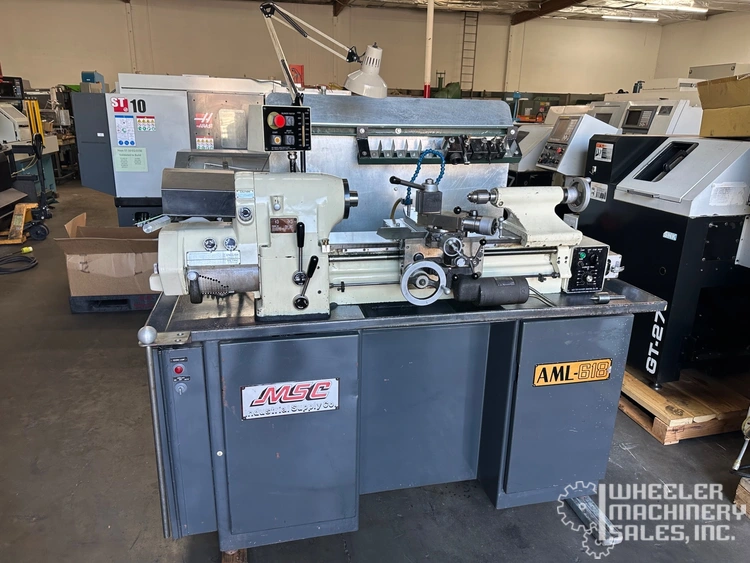

MSC AML-618 Precision Tool Room Lathe (Hardinge Copy) #7847 #1

MSC AML-618 Precision Tool Room Lathe (Hardinge Copy) #7847 #1

SPECIFICATIONS:
CAPACITY:
W/ROUND TYPE 5C COLLETS: 1-1/16"
W/STEP CHUCKS: 1-1/16" TO 6"
W/JAW CHUCKS: 5"
W/EXPANDING COLLETS: 3"
VARIABLE SPINDLE SPEEDS: 0 - 4,000 R.P.M.
HOLE THROUGH SPINDLE: 1-1/4"
SWING OVER BED: 11"
SWING OVER CARRIAGE: 9"
SWING OVER CROSS SLIDE: 6"
DISTANCE BETWEEN CENTERS: 18"
COMPOUND SLIDE TRAVEL: 3"
CARRIAGE POWER FEED RANGE: 5/16 - 7 IPM
CROSS SLIDE POWER FEED RANGE: 3/16 - 4 IPM
TAILSTOCK SPINDLE DIAMETER: 1-3/8"
TAILSTOCK SPINDLE TAPER: #2 MT
INCH THREADING RANGE IN GEARBOX: (36) 11 - 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX: (36) 0.275 - 2.7 MM
APPROXIMATE WEIGHT: 2,000 LBS.
