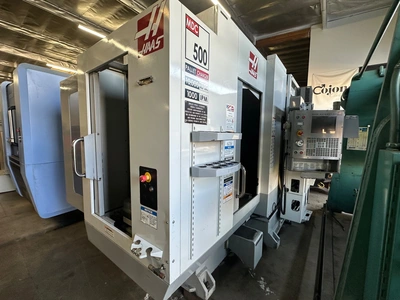

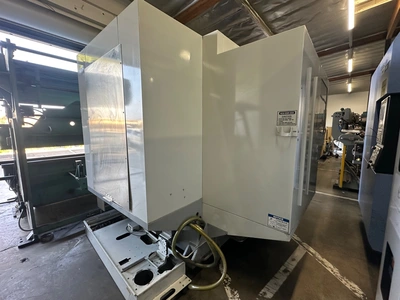

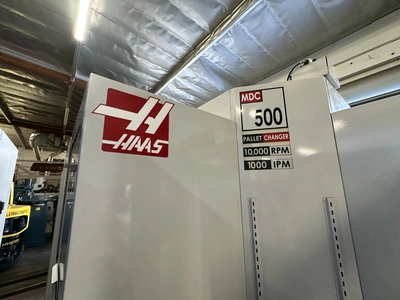

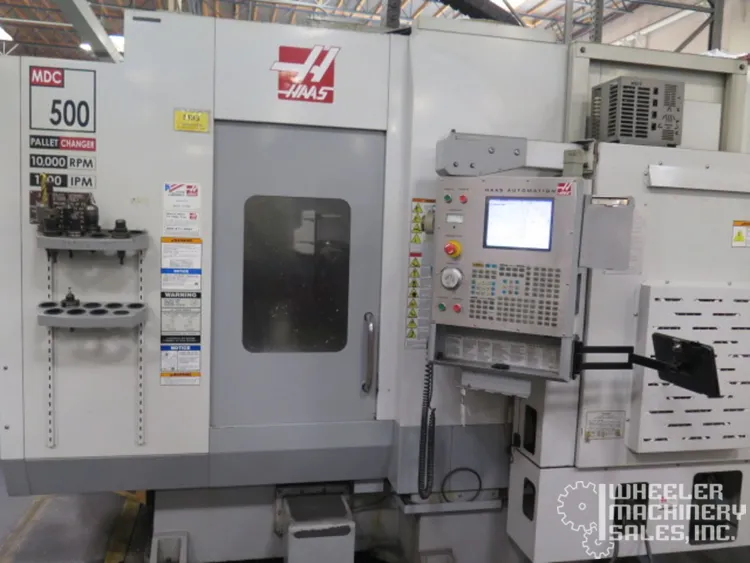

2006 HAAS MDC-500 MILL DRILL TAP VERTICAL MACHINING CENTER #7808 #2
Have one to sell?
$27,500.00 USD
ConditionUsed
1 available
HAAS MDC-500 vertical machining center, used condition. Features: 20" X-axis, 14" Y-axis, 20" Z-axis, 20 hp, 7,500 RPM, 24-tool ATC, and CAT-40 taper. Ideal for precise and efficient operations.
2006 HAAS MDC-500 MILL DRILL TAP VERTICAL MACHINING CENTER #7808 #2
SPECIFICATIONS:
Travels:
X-Axis: 20″
Y-Axis: 14″
Z-Axis: 20″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 710 Inch Per Minute

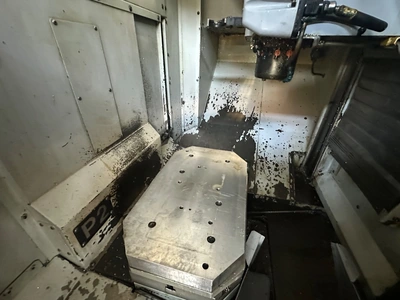

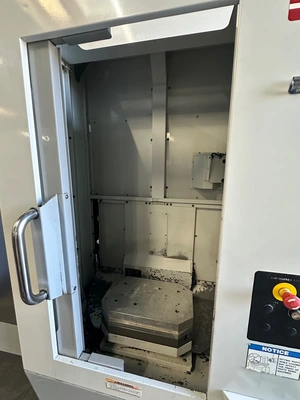

Pallet:
180° Dual Pallet Changer
Pallet Size: 20.0″ X 12.75″
Pallet Change Time: 8 Seconds
Weight on Table: 700 lbs.
Spindle:
Taper Size: CAT 40
Speed Range: 0 – 7500 RPM
Spindle Power: 20 HP
Max Torque: 70ft-lb @ 1400RPM

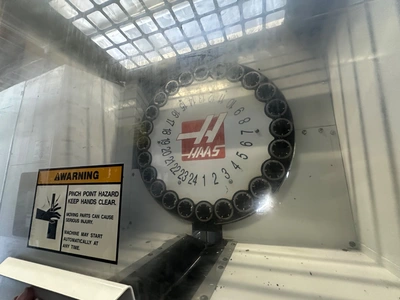

Automatic Tool Changer:
Capacity: 24 + 1
Max Tool Weight: 12 lb.s
Max Tool Dia.: 3.6″
Max Tool Length: 16″
Tool Changing Time: 2.1 – 4.7 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 480v / 66FLA / 3-Phase
Overall Shipping Dimensions: 130″ x 102″ x 110″ High ( Machine )
Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
Weight: 16,000 lbs.
