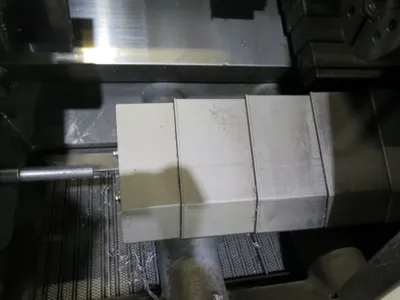

2008 TAKISAWA EX-508 CNC Lathe w/ Sub Spindle #7807 #2
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available
2008 TAKISAWA EX-508 CNC Lathe with Sub Spindle available for sale. This used slant bed N/C & CNC machine offers robust performance ideal for precision work. Manufactured by TAKISAWA, model EX 508. Contact for more details.
2008 TAKISAWA EX-508 CNC Lathe w/ Sub Spindle #7807 #2
SPECIFICATIONS:
CNC Control: Fanuc Series 18i-TB
Swing: 16.5"
Max. Turning Diameter: 11.8"
Max. Turning Length: 15.3"
Spindle Specs:
-Headstock: 2
-Speeds: 4,000 RPM
-Min. Indexing Angles: 0.001
-Spindle Nose: JIS A2-6
-Thru Hole: Main - 2.48" / Sub - 1.81"
Sub Spindle Specs:
-Travel: 23.6"
-Rapid Traverse: 944 IPM
-Feed rate: 944 IPM
-Jog Feed rate: 0 - 49.6 IPM
Other Specs:
Turret: 12-Station Drum Type
Two (2) Pedals
Habor Oil Cooler
Chip Conveyor
8" 3-Jaw Chuck
Main Spindle: S20 Collets
Sub Spindle: 16C Collets
Live Toolholders: Straight, 90°
Static Toolholders: Boring Bar, Turning
CNC Lathe Dimensions (approx.): 120" x 75" x 75"
CNC Lathe Weight (approx.): 4,500 lbs.
Electrics: 220 Volts, 3 Phase, 50-60 Cycle, 10 Amps
