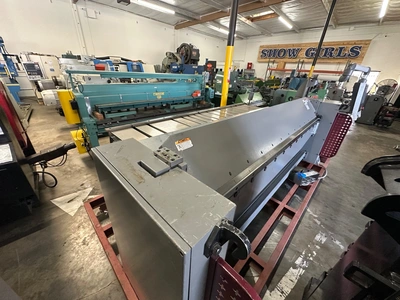

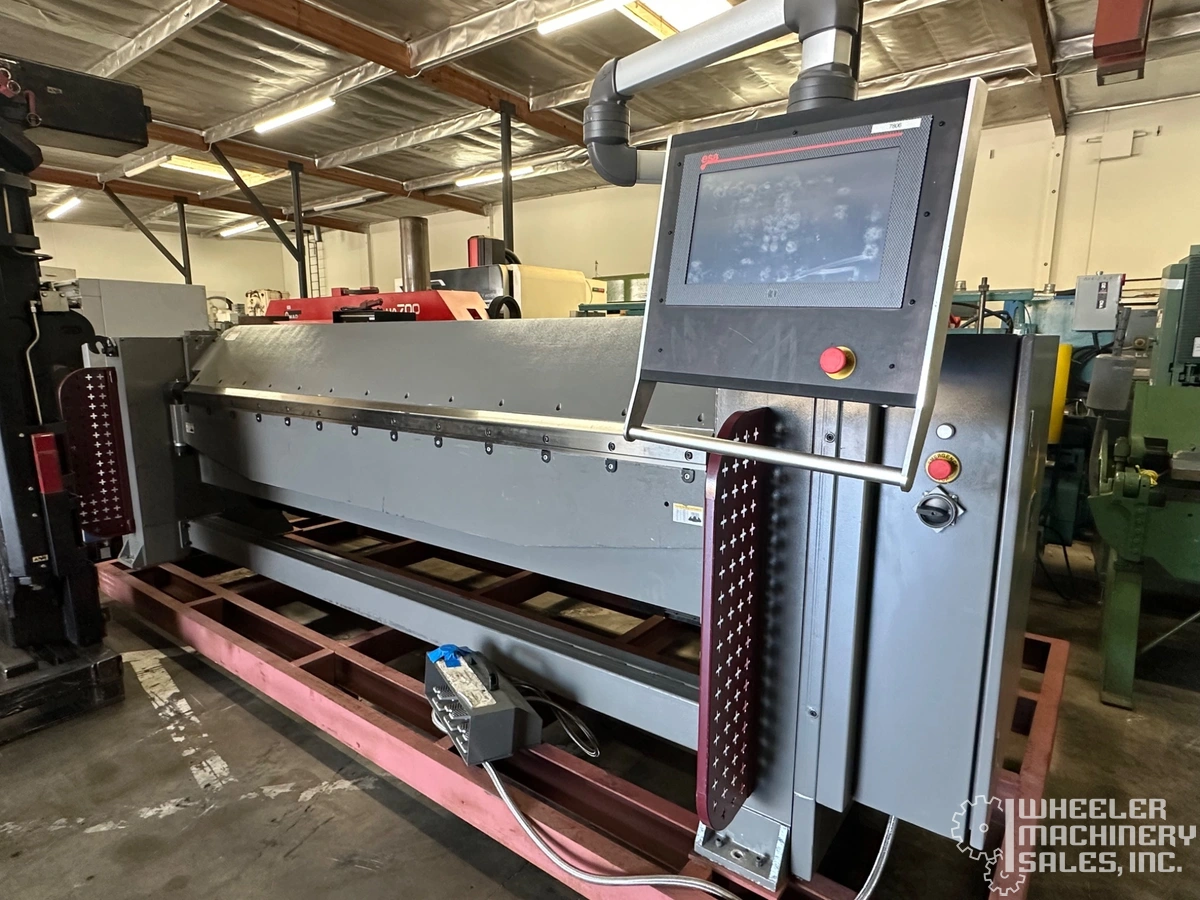

2023 EFM-1014CNC, 10' x 14 Ga. - Sheet Metal Folder | CNC Folding Machine #7806
Have one to sell?
$45,500.00 USD
ConditionUsed
1 available

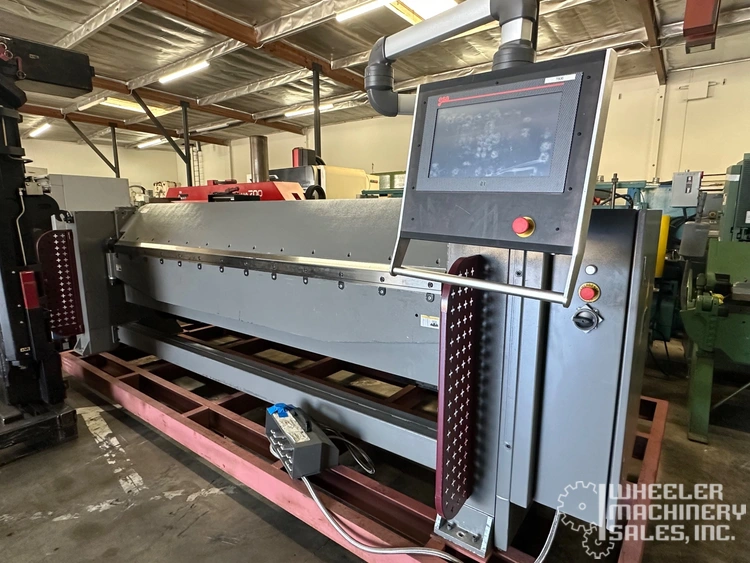

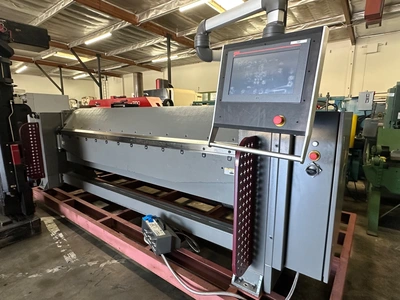

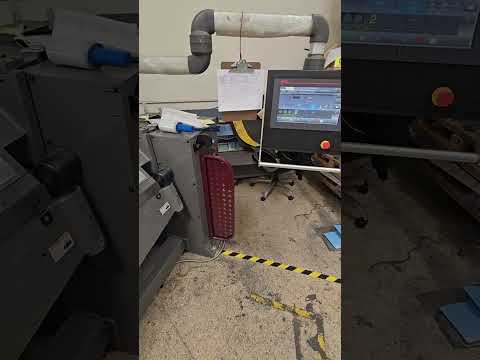

GMC 2023 EFM-1014CNC folding machine, 10' length, 14 ga. capacity. ESA CNC control with a 16” touch screen, supports 99 bends per program. Features include programmable radius bend, 48" back gauge, Yaskawa servo, and Schneider electronics.
2023 EFM-1014CNC, 10' x 14 Ga. - Sheet Metal Folder | CNC Folding Machine #7806

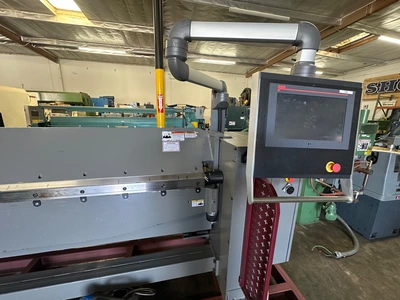

ESA CNC control, made in Italy

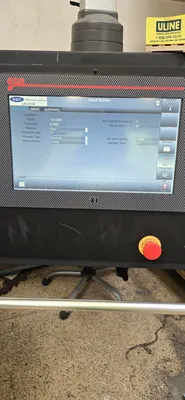

16” large Digital glass touch screen
Max. 99 bends per program
Upto 2000 Programs Storage
Profiles library with graphics
Programmable Radius Bend
Programmable Angle/ Angle Correct

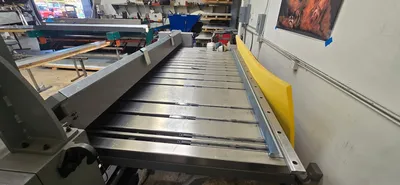

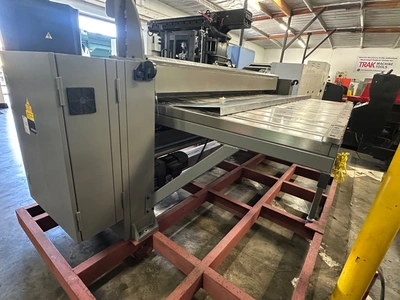

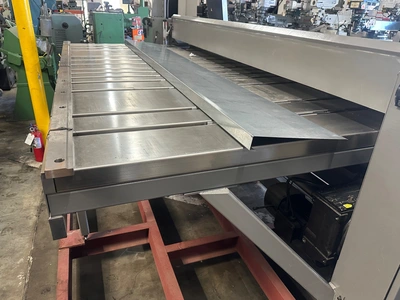

48” CNC back gauge with table and fingers
Capacity
Mild Steel/hot roll, tensile 60,000PSI
Stainless Steel/cold roll, tensile 85,000PSI
Soft Aluminum, tensile 28,000PSI
Close hemming
Open hemming
14Ga.
18Ga.
10Ga. / 1/8”thick
26Ga.
24Ga
Bending Length Capacity 10'1"
Bend Angle Degree, programmable 0-135 degree
Hemming capacity, mild steel 24 Ga.
Hemming capacity, stainless steel 28 Ga.
Large Beam Opening/clamping opening 4-7/8"
Min. Reverse Bend 1/2"
Max, Table Back Gauge Distance 48-3/8"
Min. Table Back Gauge Distance 1/2"
Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"
Motor for Bending Leaf
4 HP 3 Phase 35A
Prewired: 220VAC
Servo motor for back gauge
2 HP 3-Phase
220VAC
Clamping Motor
1-1/2 HP 3-Phase
Prewired: 220VAC
Machine Weight:
Shipping Weight:
9,850 LBS
10,150 LBS
Machine Size (LxWxH)
Shipping Dimensions:
168" x 79" x 67"
174" x 80" x 71"
