Clausing 15" Single Spindle Floor Type Drill Press, Reversing Foot Pedal #7805
Have one to sell?
$2,250.00 USD
ConditionUsed
1 available

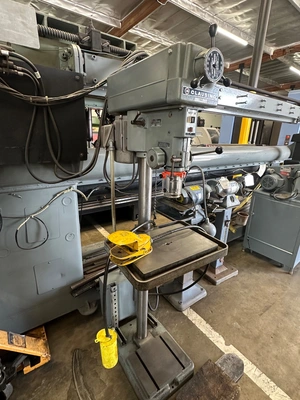

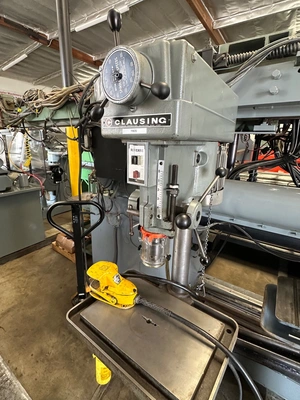

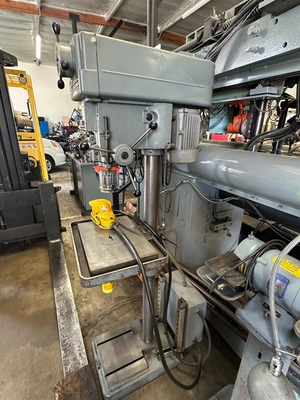

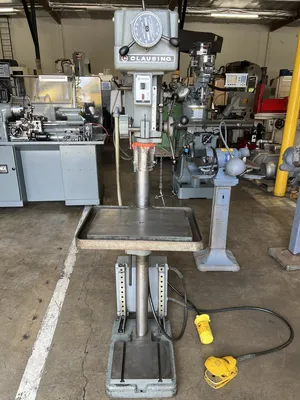

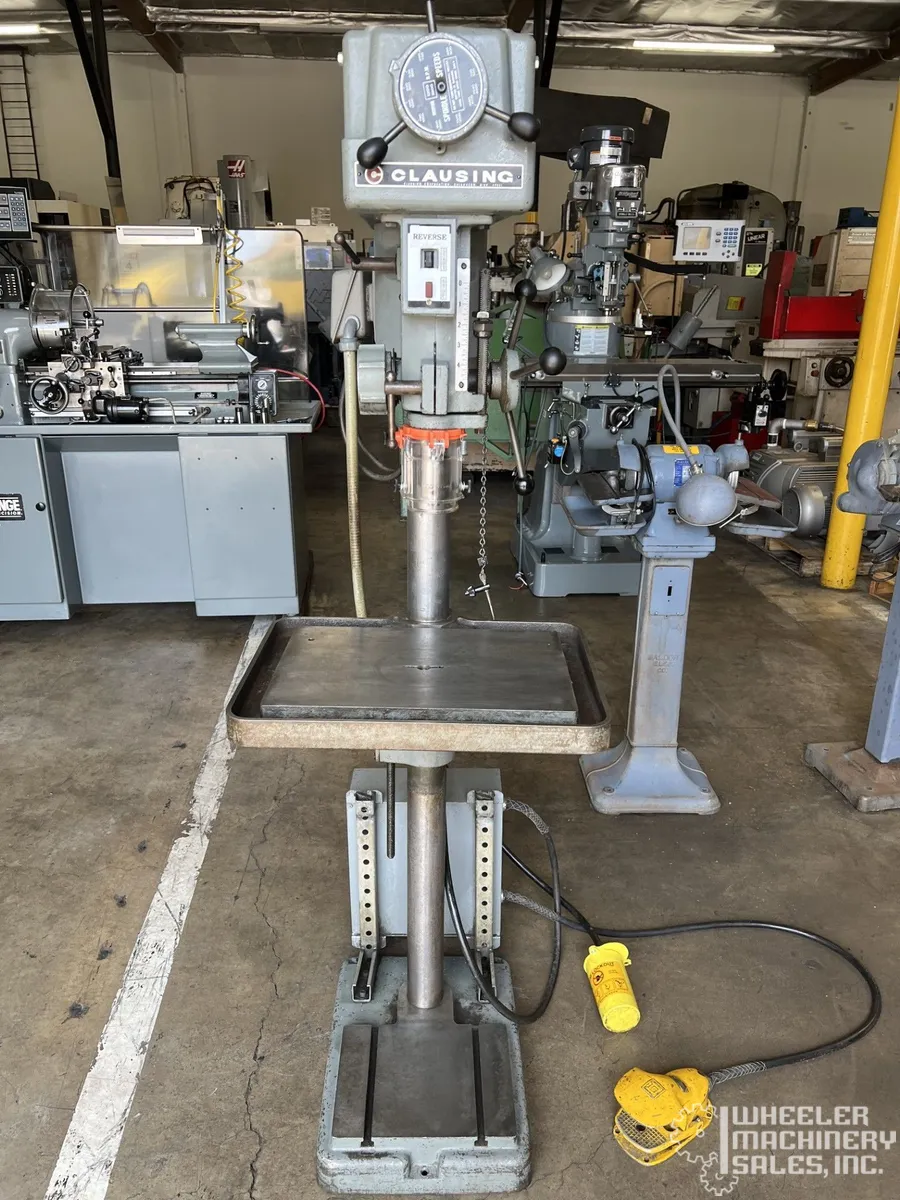

Clausing Model 1769 15" Single Spindle Floor Drill Press, used condition, equipped with work table, drill chuck, and 3/4-HP variable speed motor. Throat depth 7.5", variable spindle speeds 330-2640 RPM, spindle quill travel 4-3/4".
Make: Clausing

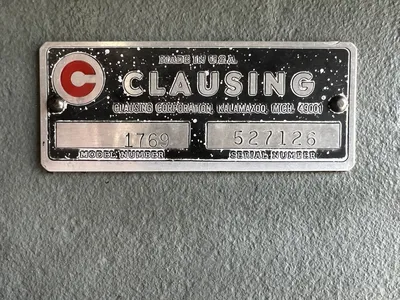

Model: 1769 Variable Speed 15"
Serial # 527126
Specification Description
Throat Depth: 7.5"
Drilling Capacity, Mild Steel: 5/8" Diameter
Spindle Speeds, Variable: 330 - 2640 RPM
Spindle Quill Travel: 4-3/4"
Column Diameter: 3"
Work Table Size: 21.5" x 15.5"
Table Work Area: 12" x 18"
Max. Distance Spindle to Table: 41-3/4"
Distance Spindle to Base Table: 47-1/8"
Overall Machine Dimensions: 22" x 28" x 73"
Machine Weight, Approx.: 550 Lbs.
Equipped With:
Reversing Foot Pedal
Drill Chuck

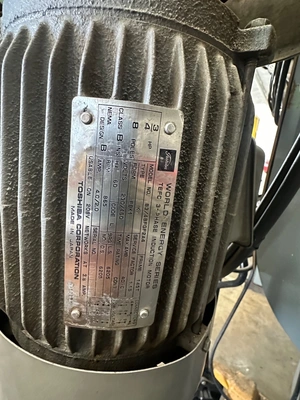

3/4-HP Motor 3 phase 220 / 440 volt
