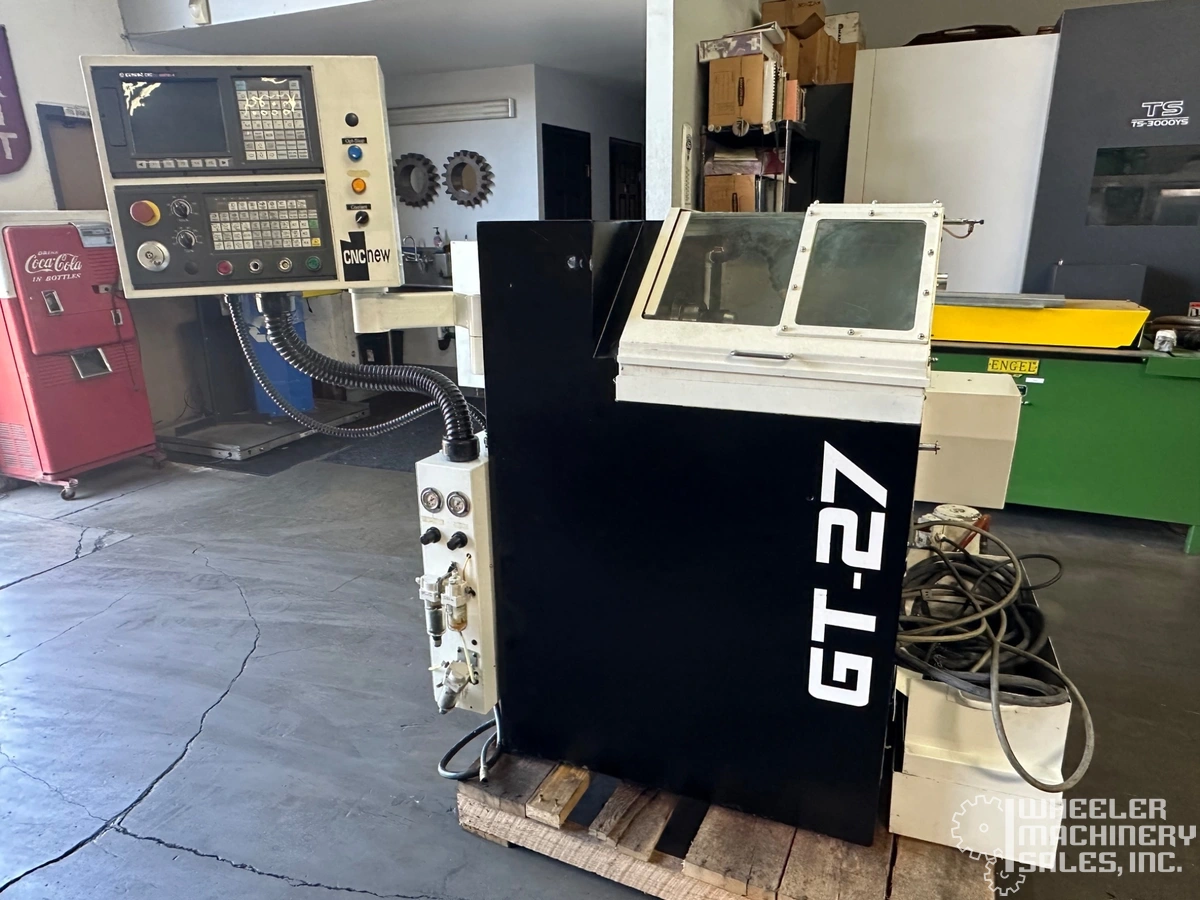

2016 CNC NEW GSK-GT Express High Precision CNC Gang Lathe #7790

2016 CNC NEW GSK-GT Express High Precision CNC Lathe #7790

Boost your productivity with the 2016 CNC New GSK GT Xpress – precision, performance, and reliability at an unbeatable value!
**All descriptions and specifications are preliminary and must be confirmed by buyer prior to purchase.**

Live Tooling / Milling
C-Axis: Equipped With

Specifications
X-Travel: 12.00"
Z-Travel: 6.50"
Distance Between Centers: 1"
Rapid Traverse: 800 IPM

Spindle
Bar Capacity: 1.06"
Chuck Size: 5.0"
Chuck Type: Collet
Spindle Bore: 1.06"
Spindle Speed: 6,000 RPM
Spindle Motor: 5 HP
Spindle Nose: 5C

Control
Control Make/Model: Fagor 800T CNC Control
Control Options: G-Code

Options
Additional Machine Specs: Positioning Accuracy: .0001"
Positioning Repeatability: .00005"
Micro-Centric Collet Closer Replacement Kit
