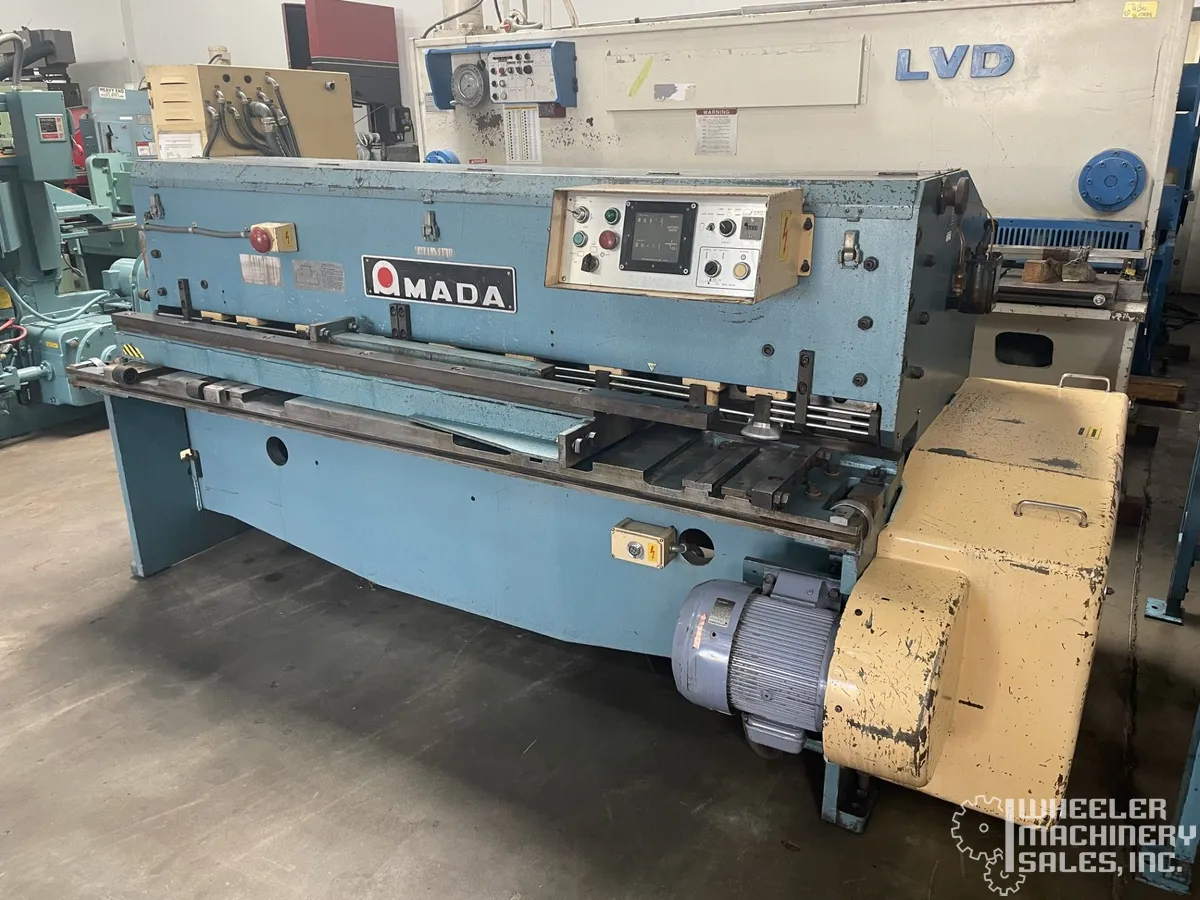

AMADA M-2060 Power Squaring Shear #7777 #1
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available
AMADA M-2060 power squaring shear, used, offers mechanical operation with a 6' blade length and handles up to 0.25" thickness. Equipped with a 39" back gauge and powered by 7 hp, it's ideal for precision cutting needs.
AMADA M-2060 Power Squaring Shear #7777 #1
SPECIFICATIONS:
MAX. CUTTING LENGTH & CAPACITY: 78.74" x .236" THICKNESS
BLADE LENGTH: 90.5"
GAP DEPTH: 2.56"
RAKE ANGLE: 1 DEGREE 28'
STROKES PER MINUTE: 60 SPM
NUMBER OF HOLDDOWN UNITS: 9
BACKGAUGE -
MOVEMENT RANGE: .39 - 39.37"
SPEED: 34.25" / MIN.
POSITION INDICATION: mm/INCH DIGITAL READOUT
MOTOR SPECS: 230/460 volt / 3 Phase / 60 Hz
MACHINE DIMENSIONS: 126" L-R x 75" F-B x 60" H
MACHINE WEIGHT: 10,340 LBS.
EQUIPPED WITH:
- PROGRAMMABLE BACKGAUGE
- FOOT PEDAL
- SQUARING ARM
