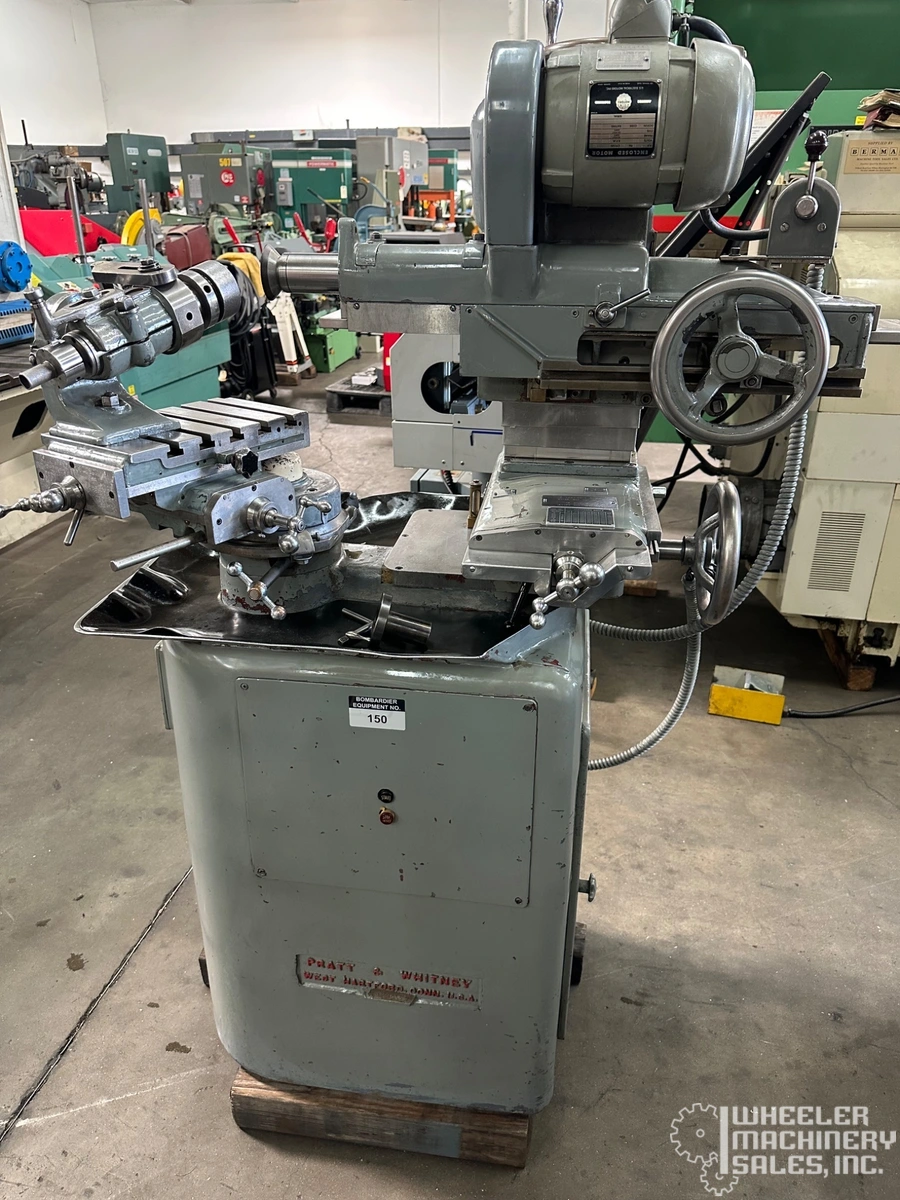

Pratt & Whitney R-6 Tool & Radius Grinder #7765 #1
Have one to sell?
$4,500.00 USD
ConditionUsed
1 available
PRATT & WHITNEY R-6 Tool & Cutter Grinder available. Reliable used equipment by a trusted manufacturer. Ideal addition for precision grinding tasks. Act swiftly to enhance your workshop's capabilities.
Pratt & Whitney R-6 Tool & Radius Grinder #7765 #1
SPECIFICATIONS:
4-1/2 inch maximum flute length
4-1/2 inch axial travel
5-3/8 inch verical adjustment
6-1/4 inch cross travel
Work table size 6-7/16 x 10-7/8 inches
Work table movement 210 degree swivel
3-1/4 inch adjusment toward and away from swivel center.
1-1/4 inches of cross adjustment
Spindle speed 5200 rpm.
Cutter head tilt 45 degrees each way
Approximate dimensions 48 x 35 x 63 inches high.
Weight unskidded 840 lbs
Power 208-230/460 volt 3 phase
1/2 HP
