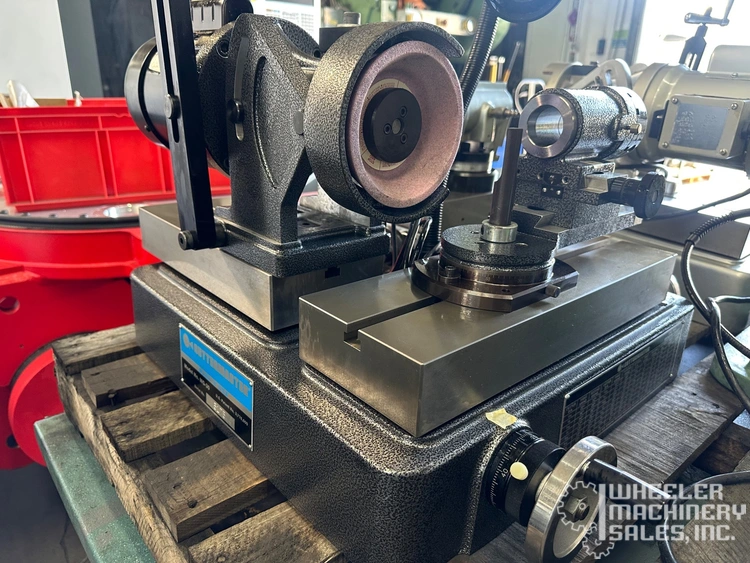

CUTTERMASTER FCG-30 Tool & Cutter Grinder #7763 #1

CUTTERMASTER FCG-30 Tool & Cutter Grinder #7763 #1

SPECIFICATIONS:
Minimum/Maximum end mill capacity .0625"/3"
Cutting tool capacity 2" Shank, 9.8" O.D.
Air bearing stroke over table 9.8"
Swing over table 9.75"
Longitudinal travel of table (X-axis) 6"
Cross travel of wheel table (Y-axis) 3" (and motor slides back/forth 6")
Vertical travel of wheel motor assembly (Z-axis) 8"
X-axis table working space 16.5" x 5.5"
Y-axis table working space 13" x 5.5"
T-Slot dimensions 0.8" x 0.5" x 0.67"
Table feed graduations .001"
Flute length 10.5"
Tilt adjustment of wheel +35°/-10°
Swivel adjustment of head stock 360°
Maximum wheel size 5" x 2" x 1-1/4"
Wheel speed 3,450 R.P.M.
Air pressure 90 P.S.I.

GENERAL:
Approximate Dimensions: 36" x 28" x 50" H
Weight: 250 lbs
