2001 Wotan M3FT/P 7-Axis CNC Horizontal Boring Mill w/ Wotan Sound Enclosure #7754

2001 Wotan M3FT/P 7-Axis CNC Horizontal Boring Mill w/ Wotan Sound Enclosure #7754

Configured for applications of 7-Axis simultaneously interpolated for full
5-Axis machining

SPECIFICATIONS:
Spindle Diameter: 4.7”
Ram Cross Section: 13” x 13”
Tool Holder: ISO 50
Main Power Supply: 50 HP
Spindle Speed: 5 to 3000 RPM
Cross Travel (X): 157.4”
Vertical Travel (Y): 118”
Ram Travel (W): 39”
Spindle Travel (Z): 23.6”
Table Size: 78.5” Round (Rotary)
Feed Range (X, Y, Z, W): .04 to 393 IPM
Rapid Traverse (X, Y, Z, W): 787 IPM
Installation Area Required: 270 cu. Ft.
Net Weight (Approx): 80,000 Lb.

EQUIPPED WITH:

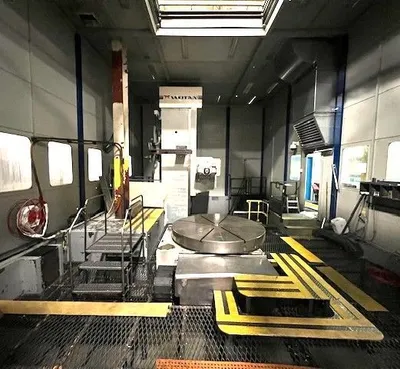

Wotan Sound Enclosure
Siemens Sinumerik CNC Control

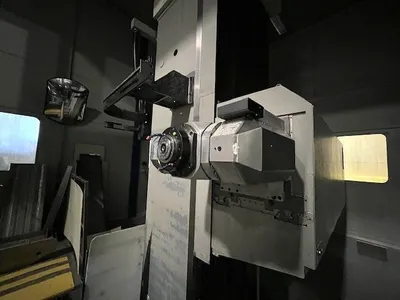

5-Axis Head
