TMP (Technical Machine Products) 140 25X25 4-Post Hydraulic Press #7745 #2
Have one to sell?
$14,500.00 USD
ConditionUsed
1 available

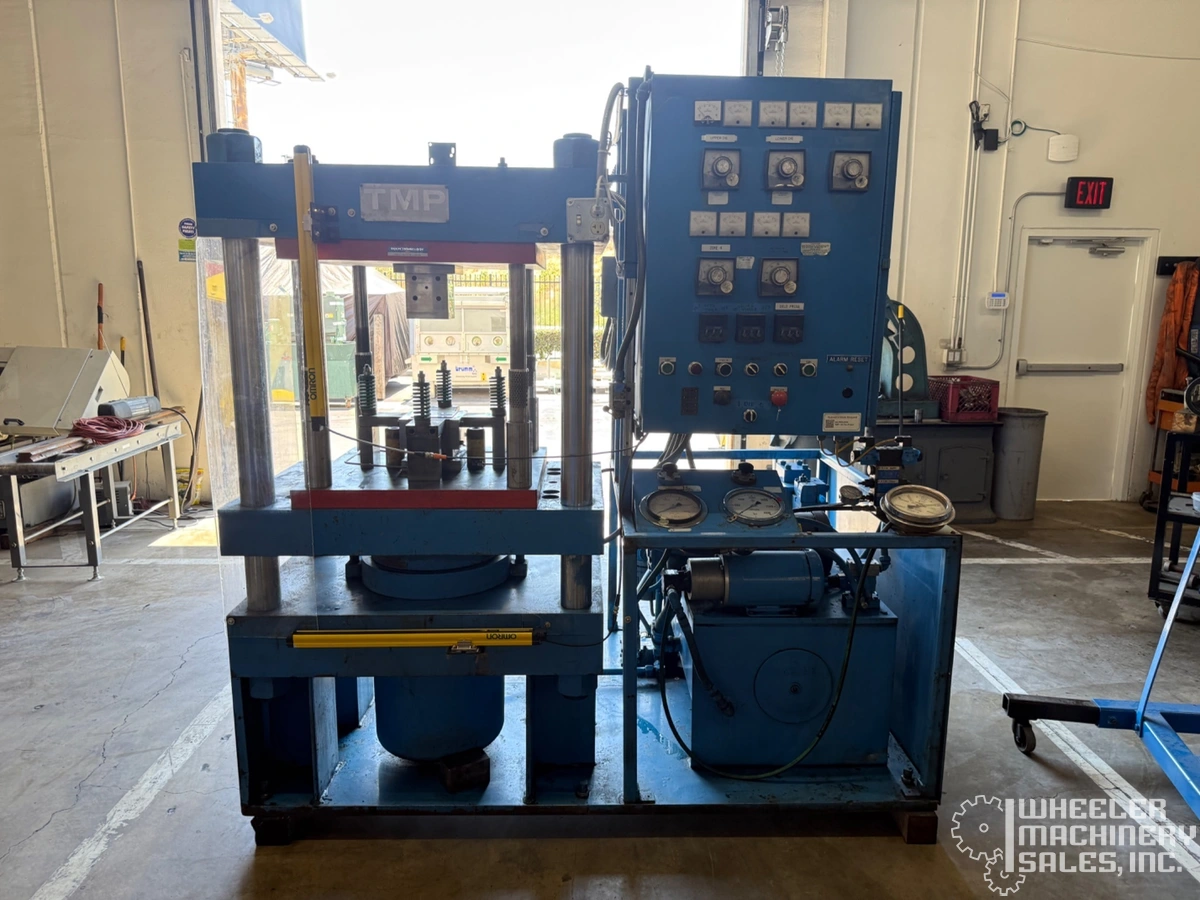

TMP 140 25X25 4-Post Hydraulic Press, used condition. 140 Ton max, 25"x25" platen, 3-1/2" tie rods, 27-1/2" opening, 17" stroke, 5 HP motor at 3000 psi. Features Omron Light Curtains and Operator Console, set up for heated platens.
TMP (Technical Machine Products) 140 25X25 4-Post Hydraulic Press #7745 #2
SPECIFICATIONS:
Maximum Tonnage: 140 Ton
Platen Size: 25" x 25"
Tie Rod Diameter: 3-1/2"
Opening: 27-1/2"
Stroke: 17"
Motor: 5 HP
Operating Pressure: 3000 psi
EQUIPPED WITH:
Omron Light Curtains
Operator Console
Set up for Heated Platens (No Platens Currently)
