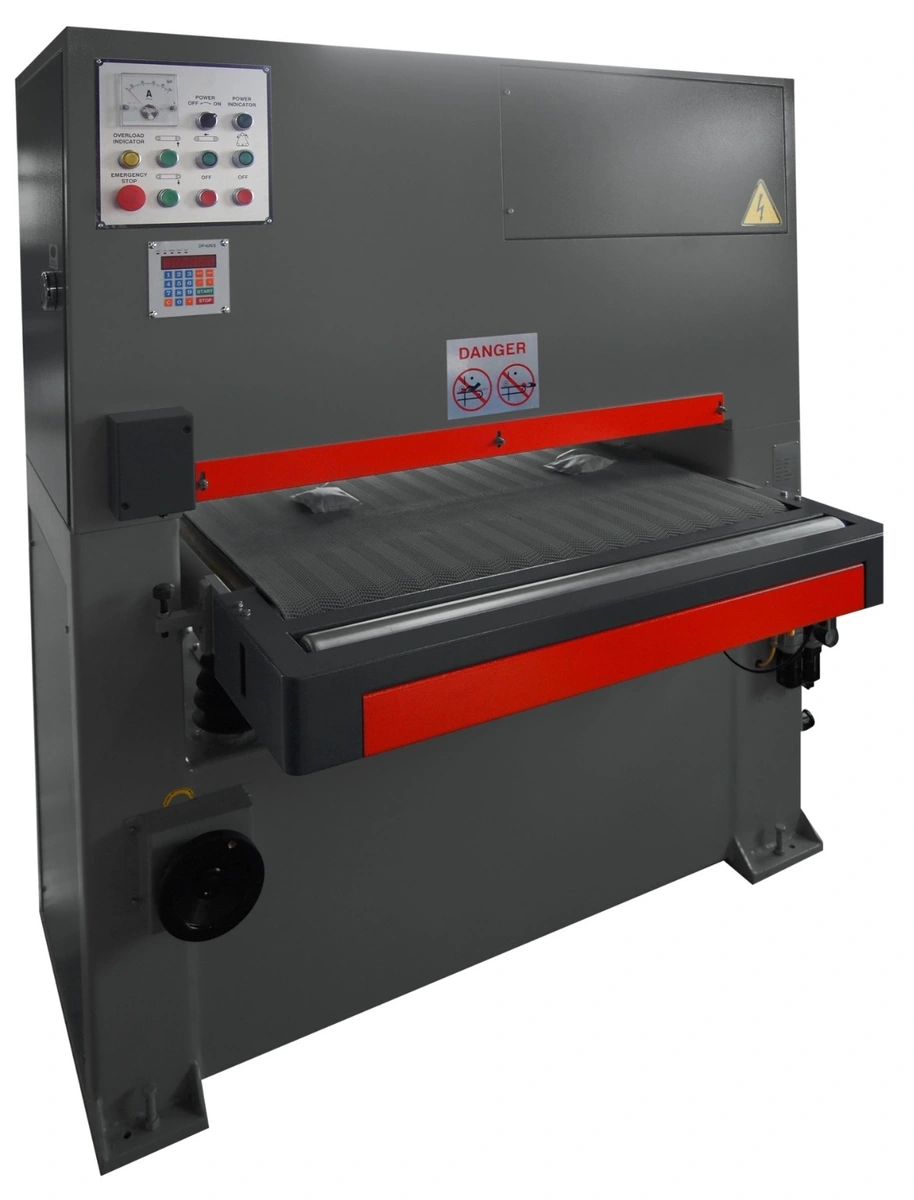

NEW GMC FP-2560T

Specifications: Model FP-2560T #7738
Max. Part Width 24”
Abrasive Belt Size 25” x 60”
Contact Roller Size 5” Dia.
Passline Height 31” – 37”
Thickness Capacity
Min. workpiece length
Max. workpiece weight
20Ga to max. 5-1/8” Min 12”, need a fixture for smaller parts 275LBS
Conveyor Drive Speeds 16-66 FPM
Infeed Conveyor Length 20”
Dust Collector Capacity
Outlet of dust hood 1,100 CFM 6”
Main Motor 10 HP, 230V , 3-Ph
Conveyor Motor 1 HP, 230V , 3-Ph
Table Lifting Motor 1/4 HP, 230V, 3-Ph
Amperage draw
Net Weight, approx.
Shipping weight, 45A on 220V, 25A on 440V 2,050 LBS 2,150 LBS
Machine Dimensions, LxWxH
Machine shipping dimensions, LWH 51” x 46” x 70” 53” x 48” x 73”

Standard Features:
· Made in Taiwan
· Computerized programmable material thickness control
· Motorized Table Lift, with digital readout
· Variable Speed Conveyor
· Conveyor Forward & Reverse
· Belt Safety Overtravel Switches
· Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
· 4-Jackscrew Table Support
· Double Infeed & Outfeed Pinch Rolls with protective guards
· Conveyor Belt Tracking System
· Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
· Table Height Digital Readout
· Load Meter indicates percentage of full motor loads
· Belt change door electrically interlocked for safety purpose
· Air tensioning of belt for accurate tensioning & compensation of belt stretch
· Quick release sanding head support for fast belt change
· Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
· Emergency stops from almost any point
· Noise level bellows 80 dba
· Operation manual, control tags, danger signs, and warning labels in English on machine
· 208/230, 3-Phase, 440V/480V ,3phase is optional
· One year Industrial Warranty for parts
· We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void.
