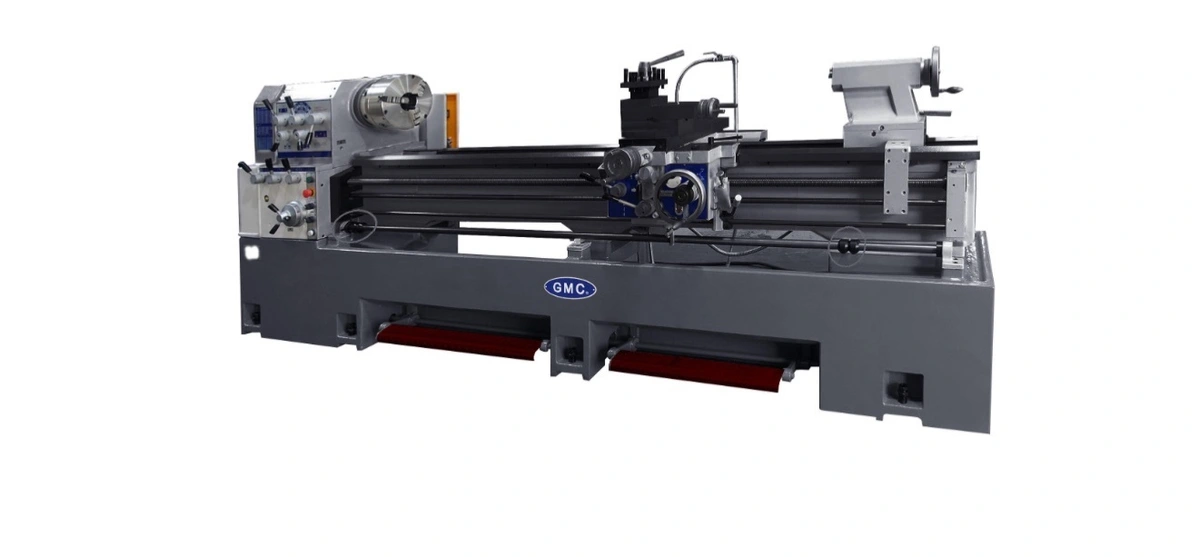

NEW GMC GML 2680T

GMC GML 2680T #7721
Machine Standard Features and Equipment:
· Made in Taiwan
· Meehanite casting – high performance cast iron
· ISO 9001 certified
· Large spindle bore 4-3/4” (120mm)
· Heavy Duty spindle D1-11
· Heavy Duty main motor 15HP
· 16 spindle speeds from 25-1,600 rpm, 16 speeds
· 2-speed tailstock
· 54 kinds of inch threads, and 54 kinds of metric threads
· Threading and feeding rate change without changing gears
· Spindle is balanced, hardened and precision ground
· Spindle is supported at 3-point by high precision bearings
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year industrial warranty for parts
Standard Equipment (free) for # GML-2680T & GML-26120T & GML-26160T:
· Free CARMAR DRO, installed
· Rapid traverse on carriage on Longitudinal way
· Automatic kick-out longitudinal carriage stop system
· 2-speed tailstock
· 12” 3-jaw chuck with top reversible jaws, direct mount
· 20” Face plate
· 12” steady rest with roller jaws
· 5” follow rest with roller jaws
· Removeable gap
· 4-way tools post
· Foot brake
· Halogen Work light and coolant system
· Splash guard on carriage
· Dead center
· Thread chasing dial
· Reducing sleeve MT7/MT5 for spindle
· Tool box and leveling pads
Specifications
Max. swing over bed 26”
Max. length of workpiece 80”
Max. swing over cross slide 17-1/4”
Max. Swing in gap 35”
Width of Bed 15-3/4”
Effective length in gap to spindle 9”
Effective length in gap to chuck jaws 4-1/2”
Spindle bore 4-3/4” (120mm), D1-11
Taper of spindle center MT# 7/MT5 with reducing sleeve
Spindle speeds 10-1,000 rpm / 12 steps
Longitudinal feeds 0.002-0.032 IPR, 35 kinds
Cross feeds 0.001-0.0094IPR, 35kinds
Inch threads 2-56 TPI, 44kinds
Metric threads 0.5-14mm , 24 kinds
Max. travel of top slide 8”
Max. travel of cross slide 13-1/2”
Leadscrew length X TPI 1-1/2” x 4 TPI
Diameter of tailstock quill 3-1/2”
Max. travel of tailstock quill 7-1/2”
Taper of tailstock quill center M.T. # 5
Main motor
Amperage draw
15HP, 220V or 440V, 3 phase
55Amp on 220V / 30Amp on 440V

Rapid traverse motor 1HP, 220V or 440V, 3 phase
Coolant pump motor 1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
Machine Oil #30 weight machine oil, 8 Gallons
Machine weight, approx. LBS
6,720 LBS
Overall dimensions, LxWxH, inch
Shipping dimensions, LxWxH, inch
137x50x73
219x50x73
