Cadillac 22" x 33" Gap Bed Engine Lathe Model 2233G #7713 #1
Have one to sell?
$7,500.00 USD
ConditionUsed
1 available

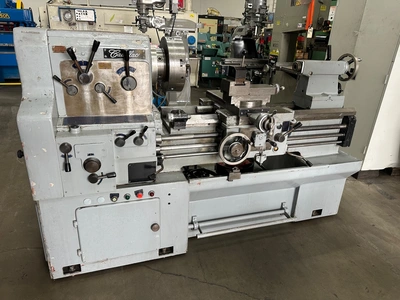

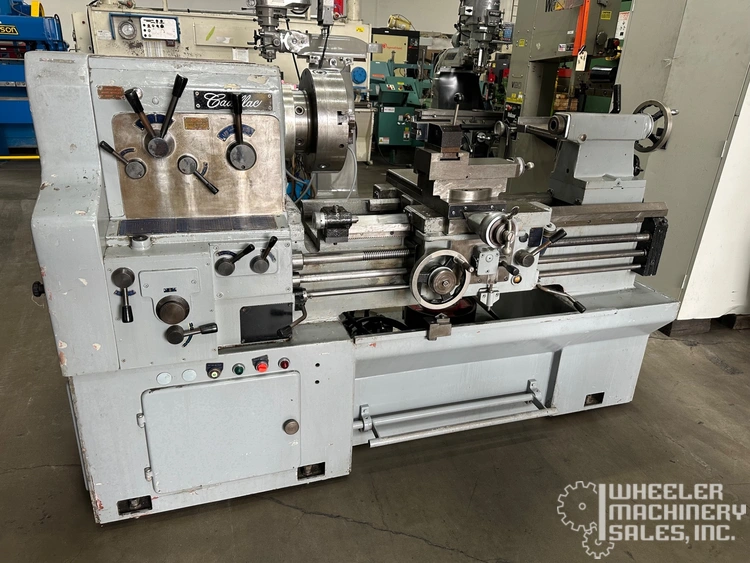

For sale: Cadillac 22" x 33" Gap Bed Engine Lathe Model 2233G. Ideal for precision machining tasks, this used removable gap lathe is built by trusted manufacturer CADILLAC. A solid choice for professionals seeking reliable equipment.
Cadillac 22" x 33" Gap Bed Engine Lathe Model 2233G #7713 #1
SPECIFICATIONS:
Swing Over Bed: 22"
Swing in Gap: 31"
Swing Over Cross Slide: 15"
Distance Between Centers: 33"
Spindle Speeds (12): 25- 1,500 RPM
Spindle Nose: D1- 6
Hole Thru Spindle: 2"
Threads:
Inch (35): 4- 80 TPI
Metric (20): 0.5- 7 MM
Feeds (64)
0.0010"- 0.0250"
Cross Slide Travel: 10"
Dimensions (L x D x H): 122" x 43" x 53"
Weight: 3,000 LBS.
