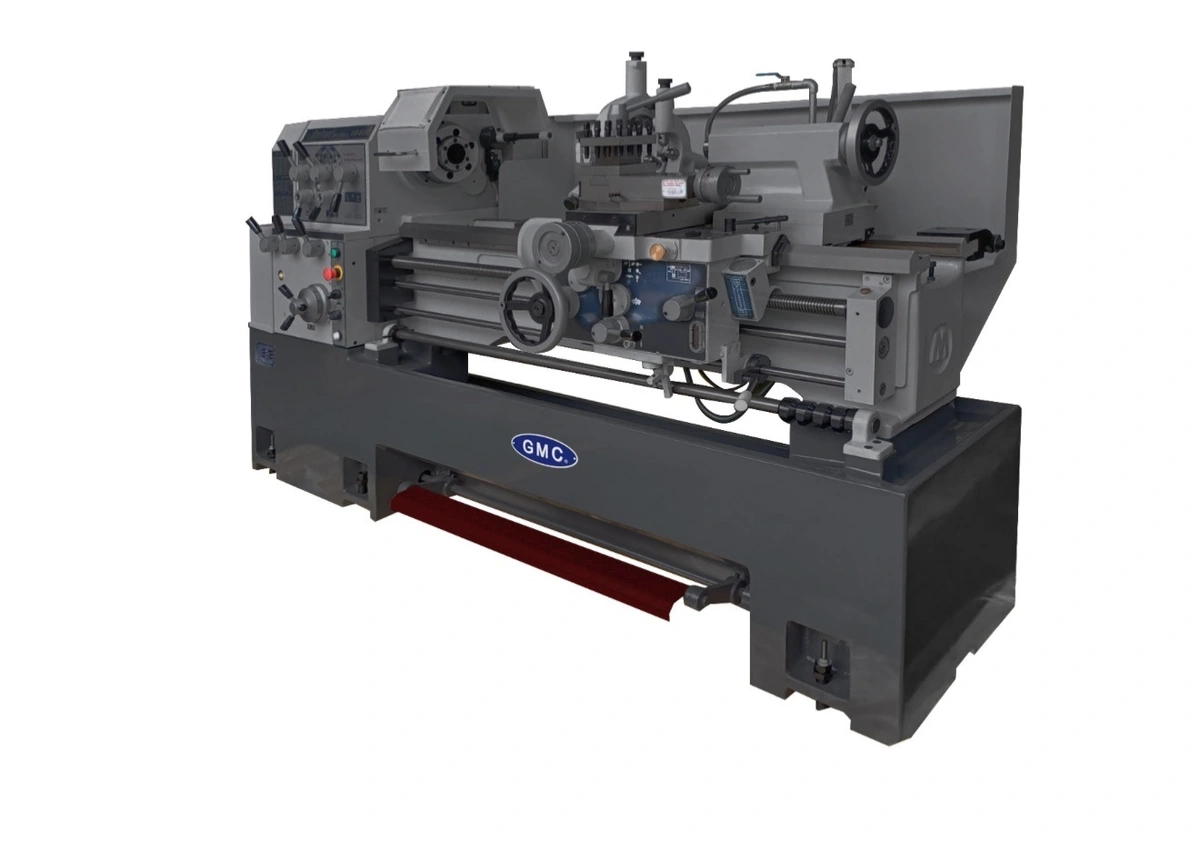

NEW GMC GML 2160T

Machine Standard Features and Equipment:

• Made in Taiwan
• Meehanite casting – high performance cast iron
• ISO 9001 certified
• Large spindle bore 3-1/8”
• Heavy Duty spindle D1-8
• Heavy Duty guideway width 12”
• Spindle speeds from 40-2,000 rpm, 12 speeds
• Threading and feeding rate change without changing gears
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box
• One year industrial warranty for parts
Standard Equipment (free) for Lathes # GML-2160T & GML-2190T:
• Free CARMAR DRO, installed
• Automatic kick-out longitudinal carriage stop system
• 10” 3-jaw chuck with top reversible jaws, direct mount
• 16” Face plate
• 9” steady rest with roller jaws
• 4” follow rest with roller jaws
• Removeable gap
• 4-way tools post
• Foot brake
• LED Work light
• coolant system
• full length rear splash guard
• Dead centers
• Thread chasing dial
• Reducing sleeve MT6/MT5 for spindle
• Tool box and leveling pads

Specifications
GML-2160T
Max. swing over bed 20-1/2”
Max. length of workpiece 60”

Max. swing over cross slide 13"
Max. Swing in gap 29-1/8”
Width of Bed 12”
Effective length in gap to spindle 6”
Effective length in gap to chuck jaws 3-1/2”
Spindle bore 3-1/8” , D1-8
Taper of spindle center M.T.# 6 w/ reducing sleeve MT6/MT5
Spindle speeds 40-2,000 rpm / 12 steps
Longitudinal feeds 0.002-0.03 IPR, 35 kinds
Cross feeds 0.0008-0.011 IPR, 35 kinds
Inch threads 4-56 TPI, 36 kinds
Metric threads 0.5-7.0 mm ,17 kinds
Max. travel of top slide 5”
Max. travel of cross slide 11”
Spindle length w/o chuck 17”
Leadscrew length X TPI 1-1/4” x 4 TPI
Diameter of tailstock quill 2-3/4”
Max. travel of tailstock quill 5-7/8”
Taper of tailstock quill center M.T. #4
Main motor 7-1/2HP, 220V or 440V, 3 phase
Amperage Draw 220V/ 35A , 440V/20A
Coolant pump motor
1/8 HP, 220V, or 440V, 3 phase, 2Gal coolant
Machine Oil
# 30 weight Machine oil, 5 Gallons
Machine weight, approx. LBS 4,150 LBS
Overall dimensions, LxWxH
Shipping dimensions: LxWxH
105” x 41” x 59”
139” x 41” x 59”
