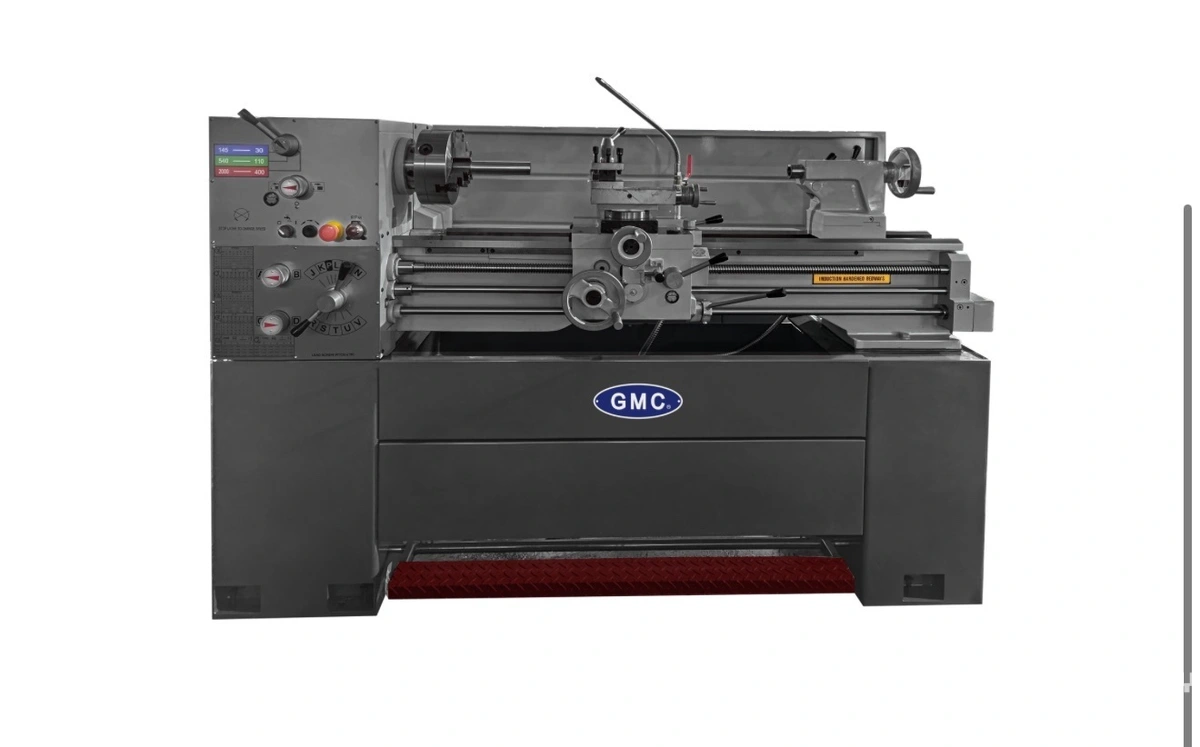

NEW GMC VARIABLE SPEED PRECISION ENGINE LATHE - GML-1440VT

​Made in Taiwan
ISO 9001 certified
Machine bed is made of high tensile cast iron FC25
With free CARMAR DRO installed
Full Geared-head precision Engine Lathe with foot brake
Quick-change gearbox with fast and easy threading set up
Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase
Spindle bore 1 1/2”
Heavy Duty spindle D1-4
Heavy Duty guideway width 7-1/2”
Variable spindle speeds from 30-2,000 rpm
32 kinds of inch threads, and 32 kinds of metric threads
Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year warranty for parts

Specifications GML-1440VT
Max. swing over bed
14”
Max. length of workpiece / Max. length of cutting
40” / 34”
Max. swing over cross slide 8-5/8”
Max. swing over gap 20-1/4”
Width of Bed 7-1/2”
Spindle bore 1 ½” , D1-4
Taper of spindle center
MT# 5 (MT5/MT3 with reducing sleeve)
Spindle speeds, variable 30-2,000 rpm variable
Longitudinal feeds .0016-.00368IPR, 40 kinds
Cross feeds .0008-.00122IPR, 40 kinds
Inch threads 4-56 TPI, 32 kinds
Metric threads 0.4-7.0 mm , 32 kinds
Max. travel of top slide 3-1/2”
Max. travel of cross slide 6-5/16”
Longitudinal leadscrew Dia 1” / 4TPI
Diameter of tailstock quill
1-9/16”
Max. travel of tailstock quill
3-1/2”
Taper of tailstock quill center
M.T. # 3
Oil for headstock/ Gear box/Apron
#30 weight machine oil, TEXACO regal R&O/100, 3 Gal.
Main motor with 5HP inverter drive
Amperage draw
3HP, 220V, 1phase 3HP, 220V, 3 phase
10 Amp 10 Amp
Coolant pump
1/16HP, 220V, 1phase, water base coolant
Machine weight, approx. 1,930 LBS
Overall dimensions, LxWxH 73” x 35” x 59”
Machine Shipping dimensions LWH 75” x 30” x75” x 30” x 75” x 30” x 55” ​77” x 30” x 61”
