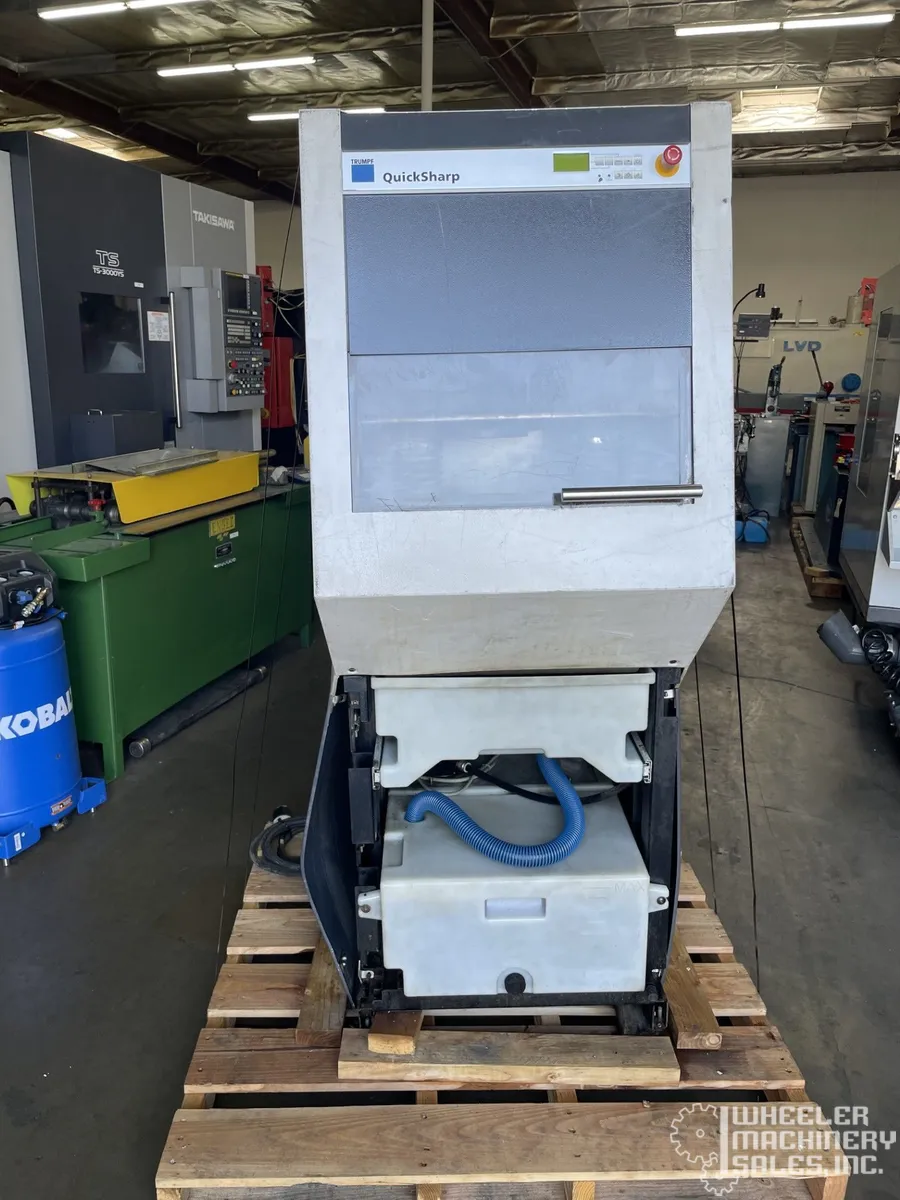

Trumpf Quicksharp Grinding Machine for Punches #7701 #1
Have one to sell?
$10,500.00 USD
ConditionUsed
1 available
Trumpf QUICKSHARP Grinding Machine available, ideal for punches. Features 150mm clamping diameter, 130mm max workpiece height, 125mm grinding wheel, and 1.1kW motor power. Compact design with machine dimensions of 770x770x1550mm. Explore its potential.
Trumpf Quicksharp Grinding Machine for Punches #7701 #1
SPECIFICATIONS:
Workpiece clamping diameter: 150 mm
Max. workpiece height: 130 mm
Grinding wheel diameter: 125 mm
Max. grinding speed: 20m/s
Grinding motor power: 1.1 kW
Grinding motor speed: 2800 rpm
Machine dimensions X/Y/Z: approx. 770mm/770mm/1550mm
Weight: approx. 550 kg
