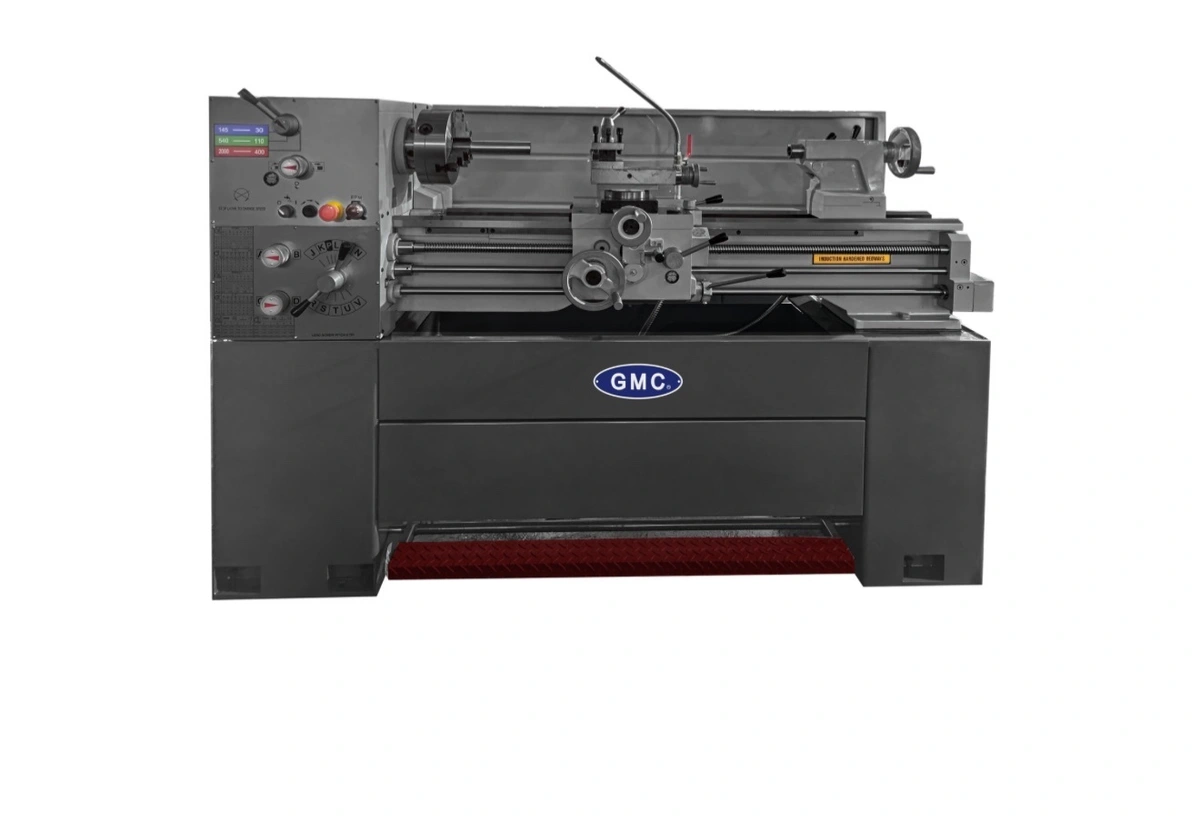

NEW GMC GML-1440T

Machine Standard Features and Equipment:

· Made in Taiwan
· ISO 9001 certified
· Machine bed is made of high tensile cast iron FC25
· With free CARMAR DRO installed
· Full Geared-head precision Engine Lathe with foot brake
· Quick-change gearbox with fast and easy threading set up
· main motor 3HP, 220V, works on both power 3 phase/1 phase
· Spindle bore 1 1/2”
· Heavy Duty spindle D1-4
· Heavy Duty guideway width 7-1/2”
· Variable spindle speeds from 45-1,800 rpm
· 32 kinds of inch threads, and 32 kinds of metric threads
· Spindle is balanced, hardened and precision ground
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year warranty for parts

Specifications
GML-1440T
Max. swing over bed 14”
Max. length of workpiece / Max. length of cutting
40” / 34”
Max. swing over cross slide 8-5/8”
Max. swing over gap 20-1/4”
Width of Bed 7-1/2”
Spindle bore 1 ½” , D1-4
Taper of spindle center
MT# 5 (MT5/MT3 with reducing sleeve)
Spindle speeds,
45-1,800 rpm, 12 steps
Longitudinal feeds
.0016-.00368IPR, 40 kinds
Cross feeds
.0008-.00122IPR, 40 kinds
Inch threads
4-56 TPI, 32 kinds
Metric threads
0.4-7.0 mm , 32 kinds
Max. travel of top slide
3-1/2”
Max. travel of cross slide
6-5/16”
Longitudinal leadscrew
Dia 1” / 4TPI
Diameter of tailstock quill
1-9/16”
Max. travel of tailstock quill
3-1/2”
Taper of tailstock quill center
M.T. # 3
Oil for headstock/ Gear box/Apron
#30 weight machine oil, TEXACO regal R&O/100, 3 Gal.
Main motor with 5HP inverter drive
Amperage draw 3HP, 220V, 1phase 10 Amp
Coolant pump
1/16HP, 220V, 1phase, water base coolant
Machine weight, approx.
1,930 LBS
Overall dimensions, 73” x 35” x 59”
Machine Shipping dimensions LWH
75” x 30” x75” x 30” x 75” x 30” x 55” ​77” x 30” x 61”
