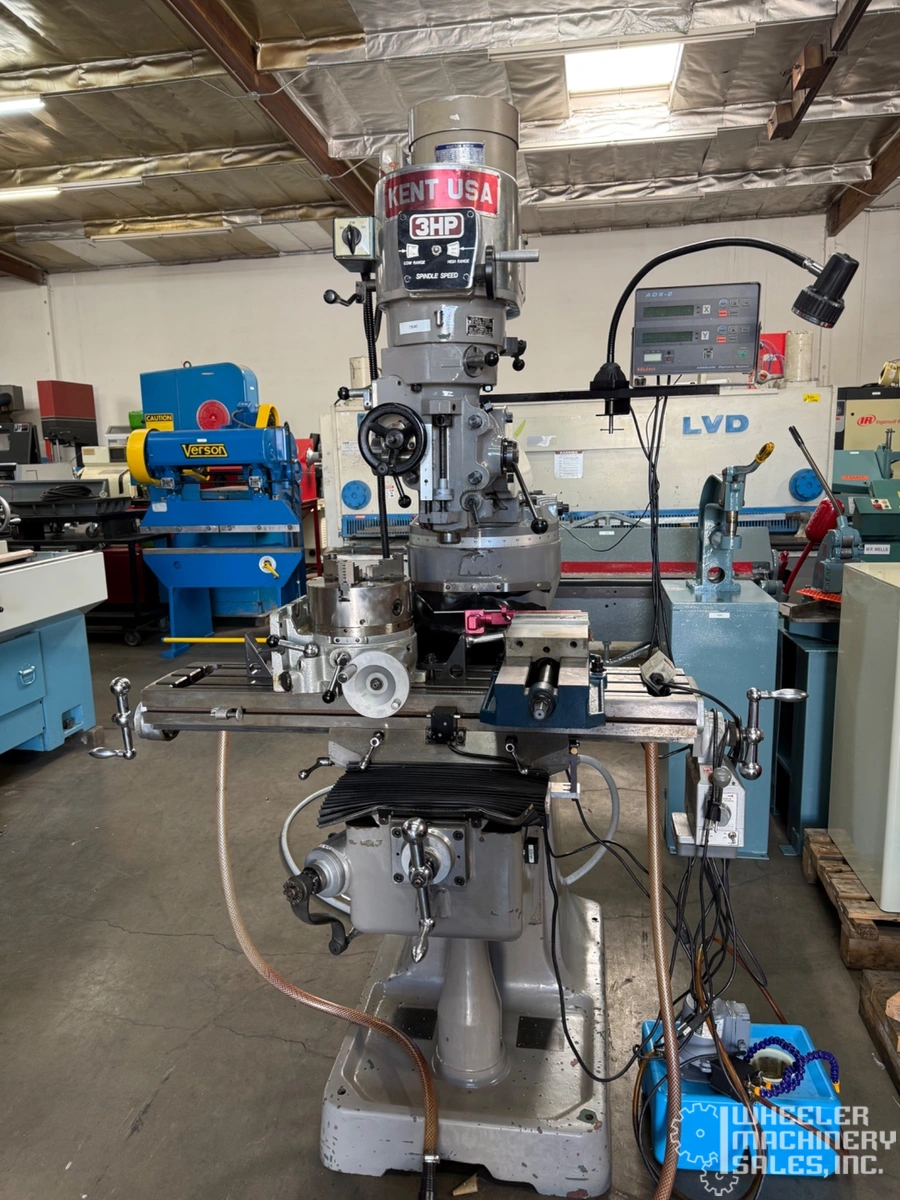

Kent 3VS Variable Speed Milling Machine 9" x 42" DRO, Power Feed, Vise #7690 #1

Kent 3VS Variable Speed Milling Machine 9" x 42" DRO, Power Feed, Vise #7690 #1

SPECIFCIATIONS:
Table Size: 9″ x 49″ (Opt. 9″ x 42″)
Table Travel (X-Axis): 35″
Saddle Travel (Y-Axis): 12″
Knee Travel (Z-Axis): 15″
Quill Travel: 5″
Ram Travel: 14.5″
Spindle Motor: 3 HP
Spindle Speed: 60–500–4200 RPM (standard variable speed model)
Spindle Taper: R-8
Quill Diameter: 3.375″
Quill Feed Rate: 0.0015″ / 0.003″ / 0.006″ in/rev
Drilling Capacity (Manual / Power): 0.75″ / 0.37″ diameter
Boring Capacity: 6″ diameter
Milling Capacity: 2.0 in³/min
Maximum Work Load (Center): 850 lbs.
Spindle Center to Column: 5″ – 19.5″
Net Weight: 2500 lbs
Gross Weight: 2800 lbs
Shipping Dimensions: 72″ x 72″ (skid)
Power Requirements: 220 volts, 3 phase, 60 Hz, 10 Amp (optional 440v, requires 5 Amp)
