Gorton P1-2 2-Dimensional Pantograph #7668 #1
Have one to sell?
$1,750.00 USD
ConditionUsed
1 available

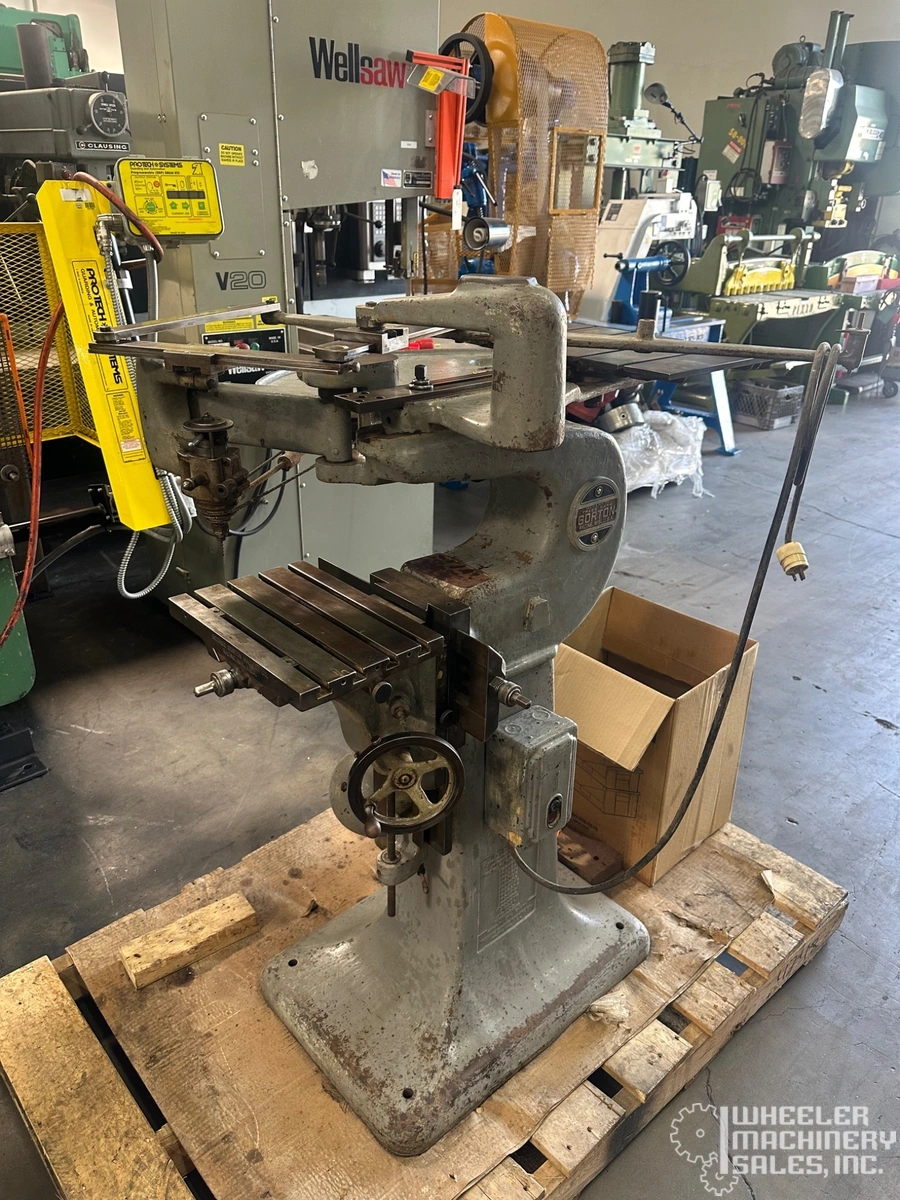

GORTON P1-2 engraving machine/pantograph, used. Ideal for precision engraving projects. Manufactured by GORTON, this reliable model combines quality and functionality for various applications. Perfect addition for enhancing workshop capabilities.
Gorton P1-2 2-Dimensional Pantograph #7668 #1
SPECIFICATIONS:
Electrics: 115V/1PH/60HZ

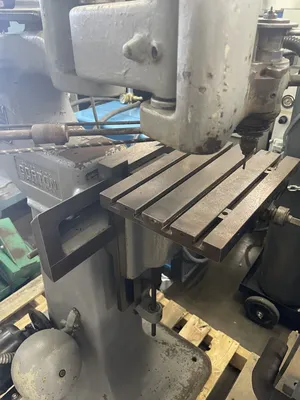

Table working surface: 8" x 18"
Table dimensions, overall: 8-7/8" x 24"
Longitudinal feed capacity: 10"
Cross feed capacity: 8.75"
Vertical spindle feed: .31"
Vertical knee feed: 11.125"
Copy table cross movement: 5"
Slider head cross movement: 7.25"
Throat opening above column ways: 8"
Swing above column ways, maximum: 21"
Spindle nose to table, maximum: 11.625"
Spindle nose to table, minimum: 0"

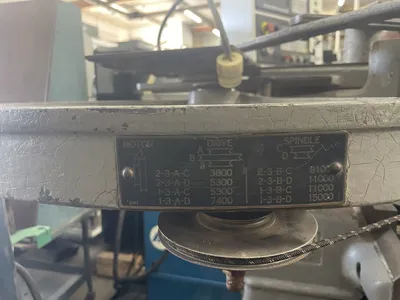

(8) Spindle speeds, range: 4700 to 18,000 RPM

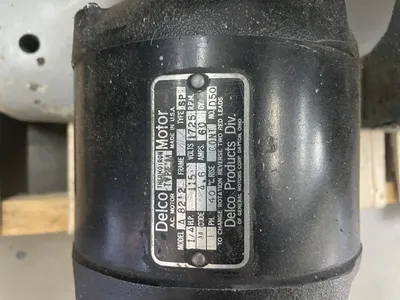

Motor: 1/4 HP
Overall dimensions: 35" x 42" x 48" high
Estimated weight: 640 lbs.
