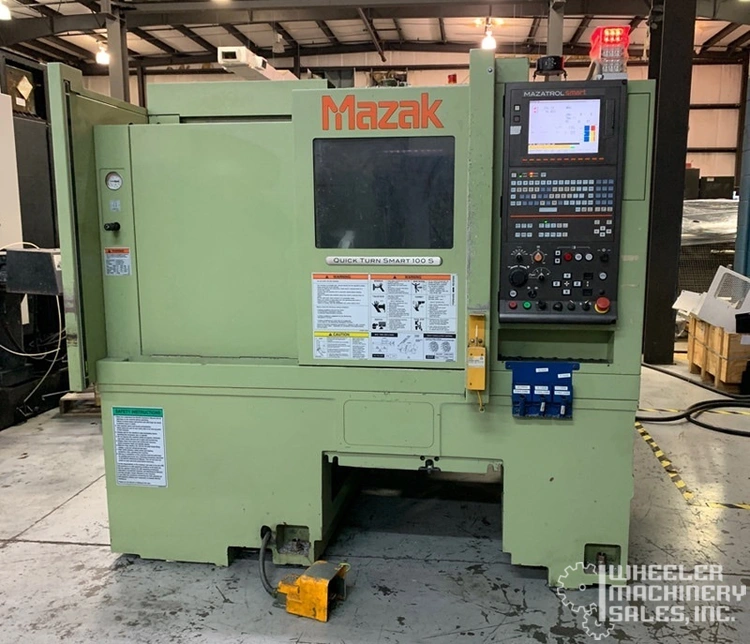

Used 2014 MAZAK QUICK TURN SMART 100 S | LATHES, SLANT BED, N/C & CNC

Specifications(subject to buyer verification):
Maximum Swing: 23"
Swing Over Cross Slide: 13.0"
Maximum Machining Diameter: 11.0"
Maximum Machining Length: 12.15”
Bar Capacity: 1.65”
Spindle Motor: 15 / 10 (30 MIN/CONT.)
Spindle Bore: 2.4"
Spindle Speed: 6,000 RPM
Number of Spindle Speed Ranges: 1
Spindle Nose: A2-5
Turret Type: DRUM TURRET
Number of Tools: 12
Tool Shank Height: .75"
Boring Bar Shank Diameter: 1.25"
Turret Index Time: .17 SEC (ONE POS.)
X-Axis Travel: 7.875"
Z-Axis Travel: 13.375"
Rapid Traverse Rates X-Axis: 1299 IPM
Rapid Traverse Rates Z-Axis: 1417 IPM
Floor Space Requirement: 75.0" x 63" x 67”
Weight: 7,716 LBS.

Equipped With:

Mazatrol Smart CNC Control
10.4” Color LCD
Compact Flash Memory Interface Only
USB Memory Interface Only
Automatic Tool Eye
Absolute Positioning Sys (N/A with S/F)
12 Position Drum Turret (Bolt on Type)
Main Spindle Motor 15 HP
