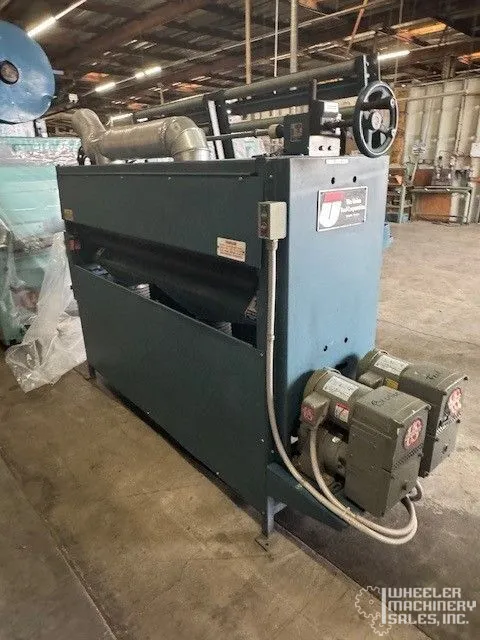

UNION TOOL CORP Brush Roll Machine #7654 #2
Have one to sell?
ConditionUsed
1 available
$24,500.00 USD
Discover the versatile UNION TOOL CORP Brush Roll Machine #7654 #2. This used machine features stainless steel brush rolls, variable speed control, and TEFC motors. Handles product sizes up to 26" wide, with a compact footprint of 71"L x 45"W x 60"H.
UNION TOOL CORP Brush Roll Machine #7654 #2
SPECIFICATIONS:
DIMENSIONS: Length: 71" x Width: 45" x Height: 60"
PRODUCT
SIZE RANGE: Up to 26" in width and 15" minimum length,
.010 to .125 in thickness
BRUSH ROLL
DIMENSIONS: Stainless steel brush roll is
8" in diameter x 26" long
HOODS: Sheet metal enclosing both brushes with 8" dust opening
PASS LINE
HEIGHT: 34"
BRUSH ROLL
MOUNTING: Spring-loaded rolls mounted in self-aligning bearings
MOTORS
AND
CONTROLS: One 10 H.P. dual voltage TEFC
Two 1 H.P. dual voltage TEFC
110v pushbutton controls
OPERATING
SPEED: Variable speed on brushes 500 to 1500 RPM
Belt speed variable from 10 to 100 l.f.p.m.
