| Table Size-W | 15.7" | 398.78 mm |
| Table Size-L | 15.7" | 398.78 mm |
| Travel-Long | 22" | 558.8 mm |
| Travel-Cross | 22" | 558.8 mm |
| Travel-Vert | 23.6" | 599.44 mm |
| Power | 25 hp | 18.6 kW |
| Taper | CAT 40 | CAT 40 |
| Dimensions | 152 x 102 x (missing height) | 152 x 102 x (missing height) |
| Weight | 17200 pounds | 17200 pounds |

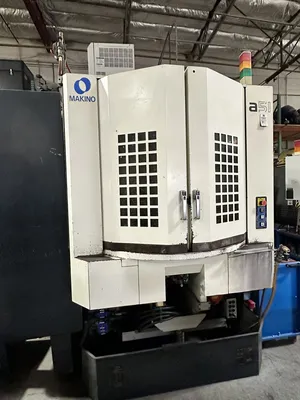

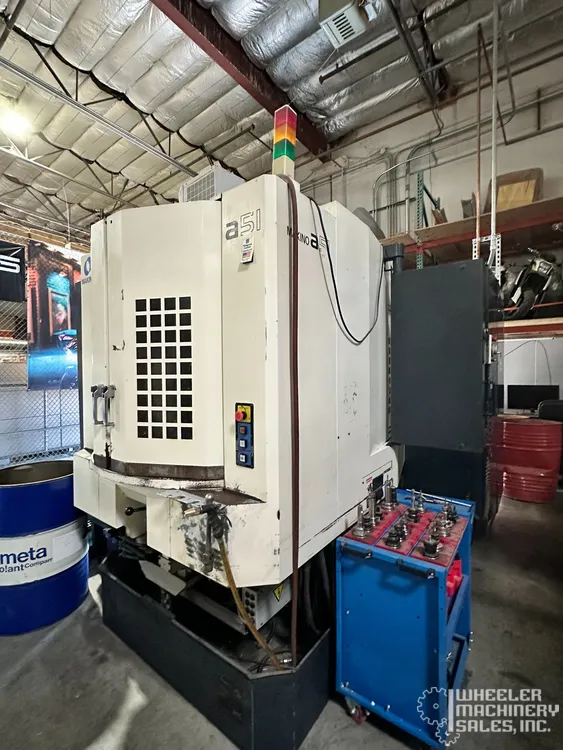

2006 Makino A51 - CNC Horizontal Machining Center
Located in Hollister, Ca.
New Spindle and Motor installed 7 years ago
Professional 5 Control (Fanuc 31i)
Pallet Size: 15.7" x 15.7" | Full B Axis 0.001°
Travel (X/Y/Z): 22" / 22" / 23.6"
CAT 40 , 25 hp , 60 Station ATC
Control Type
Professional 5
# Axis
4
Pallet Length
15.7"
Pallet Width
15.7"
Pallet Capacity
880 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
22"
Y-Axis Travel
22"
Z-Axis Travel
23.6"
Rapid Traverse Rate (X/Y/Z)
1,772 ipm
Spindle Taper
CAT 40
Spindle Motor (HP)
25 hp
Tool Changer Capacity
60
Machine Dimensions
152" x 102" x
Machine Weight
17,200 pounds
