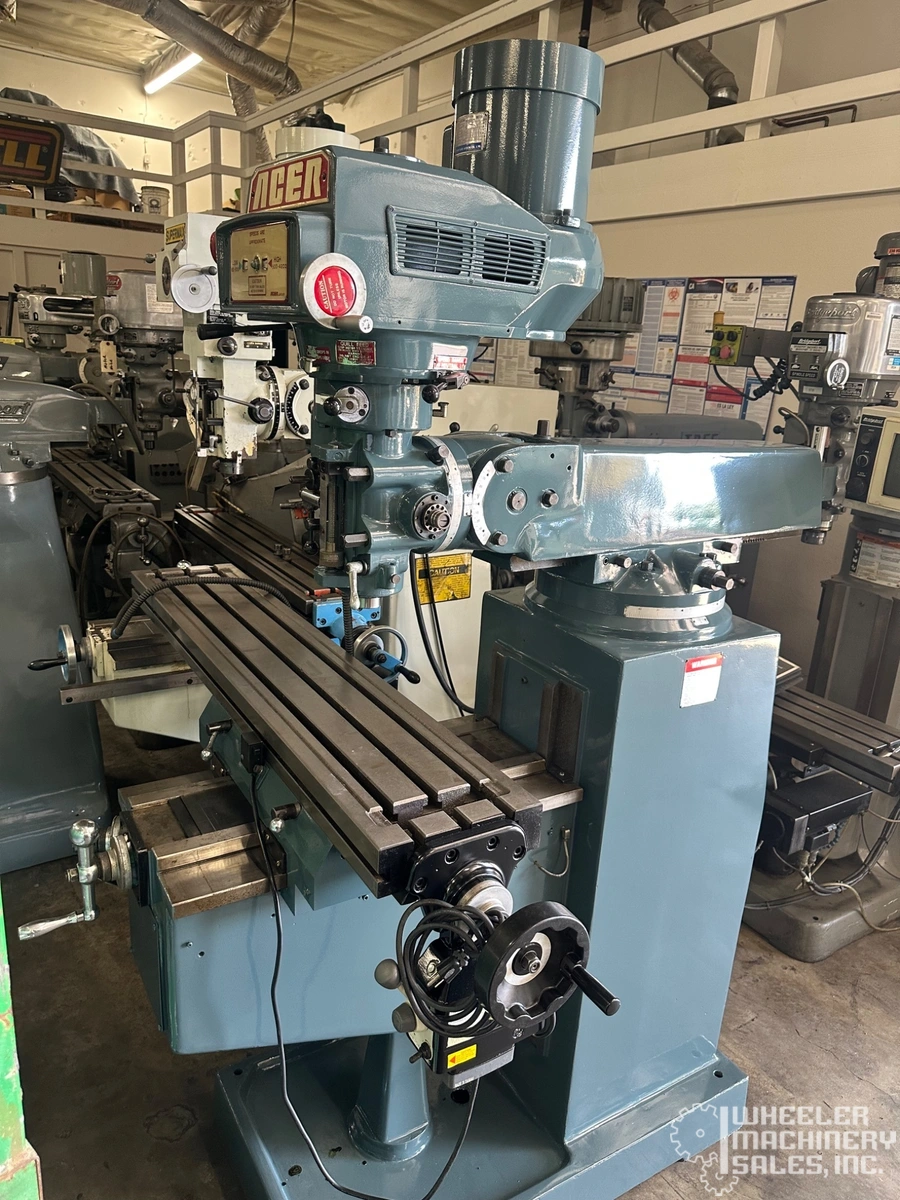

Acer 10" x 54" Variable Speed Milling Machine #7568 #2

Acer 10" x 54" Variable Speed Milling Machine #7568 #2

SPECIFICATIONS:
Table Size: 10" x 54"
Minimum Spindle to Column Distance: 7"
Minimum Spindle to Table Distance: 2"
Maximum Spindle to Table Distance: 16"
Minimum Spindle Speed: 160 RPM
Maximum Spindle Speed: 5,440 RPM
Forward Head Tilt (Degrees): 45
Backward Head Tilt (Degrees): 45
Left-Hand Head Tilt (Degrees): 90
Cross Travel: 12"
Longitudinal Travel: 33"
Knee Travel: 14"
Horsepower: 1
Voltage: 220V
Table Load Capacity: 552 Lb.
Ram Travel Length: 12"
Spindle Speed Control: Belt Change
Spindle Taper: R8
Spindle Travel Length: 5"

EQUIPPED WITH:
X-Axis Power Feed
One Shot Lube
