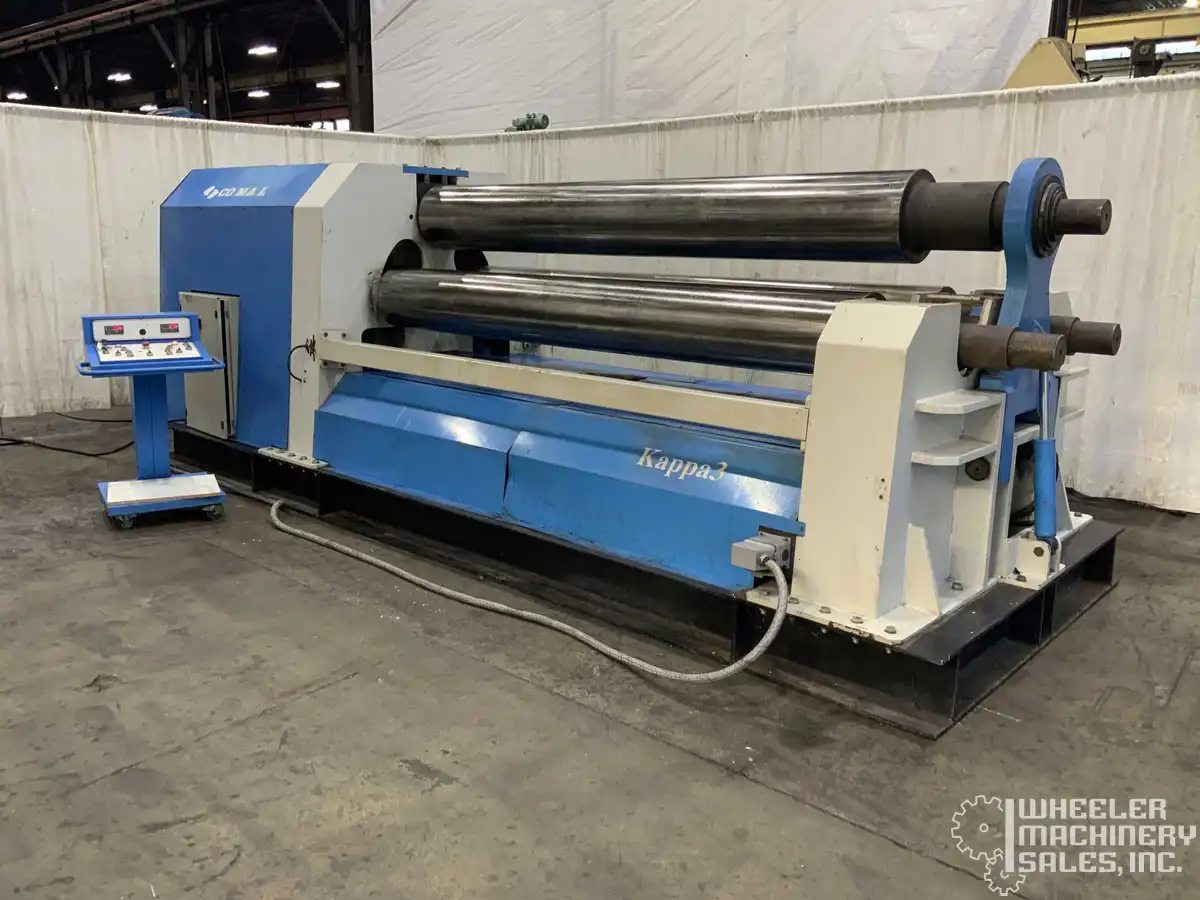

2008 Comal Kappa3 Plate Bending Roll #7544
Have one to sell?
$79,500.00 USD
ConditionUsed
1 available
2008 Comal Kappa3 Plate Bending Roll #7544, offering a 3/4" capacity, 122" roll length, and hydraulic roll adjustment. Features a 30 HP motor, variable rolling speed, and an operator's console. Ideal for precise plate bending tasks.
2008 Comal Kappa3 Plate Bending Roll #7544
SPECIFICATIONS:
CAPACITY: 3/4"
LENGTH OF ROLLS: 122"
DIAMETER OF TOP ROLLS: 14.961"
DIAMETER OF LOWER ROLLS: 14.73"
ROLLING SPEED VARIABLE: YES
CONE ROLLING CAPACITY: 75 PERCENT OF CAPACITY
ROLL ADJUSTMENT: HYDRAULIC
HYDRAULIC DROP END: YES
OPERATORS CONSOLE: YES
MAIN DRIVE MOTOR: 30 HORSEPOWER
Machine Dimensions: 228" x 88" x 82" H
Control Dimensions: 24" x 30" x 44" H
Length of Rolls: 122"
(Init/Dbl Pinch or Pyramid): DBL PINCH
Max Thickness: 0.75"
# Rolls: 3Hyd/Mech: Hyd
