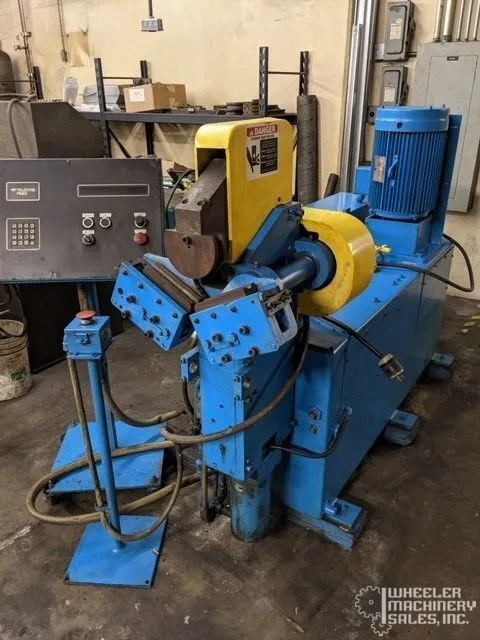

Pines #3T Vertical Tube/Pipe Bender #7540 #1
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available
Used PINES 3T pipe bender available, perfect for non-ferrous, mild steel, and stainless round tubing up to 1.25". Features digital Dial-A-Bend control, 20 HP hydraulic motor, oil cooler, and a 50-gallon oil reservoir. Compact yet robust, weighs 3100 lbs.
Pines #3T Vertical Tube/Pipe Bender #7540 #1
SPECIFICATIONS:
ROUND TUBING (NON FERROUS) 1.25" X .083" WT
ROUND TUBING (MILD STEEL) 1.25" X .065" WT
ROUND TUBING (STAINLESS STEEL) 1.25" X .049" WT
SQUARE TUBING (MILD STEEL) 1" X .065" WT
ROUND BAR 3/4"
SQUARE BAR 9/16"
WING DIE TONNAGE MIN .5 TONS
WING DIE TONNAGE MAX 3 TONS
MAXIMUM RAM STROKE 6.75"
MAXIMUM OPEN HEIGHT 7.875"
MAXIMUM PRESSURE 2000 PSI
APPROX DIMENSIONS 88" L X 36" W X 60" H
APPROX WEIGHT 3100 LBS
EQUIPPED WITH:
TELEDYNE PINES DIGITAL DIAL-A-BEND CONTROL
HYDRAULIC PUMP MOTOR 20 HP 1800 RPM 240V-3-60
OIL RESERVOIR CAPACITY 50 GALLONS
WORK SUPPORT BARS
OIL COOLER
