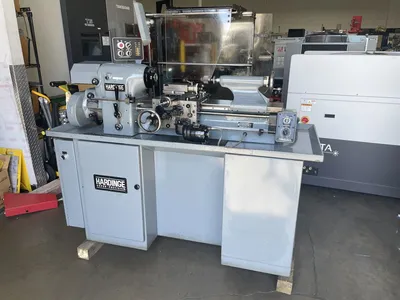

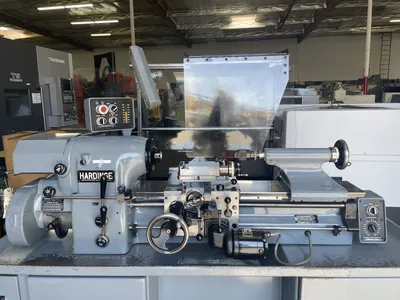

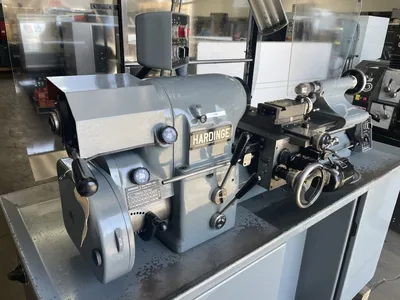

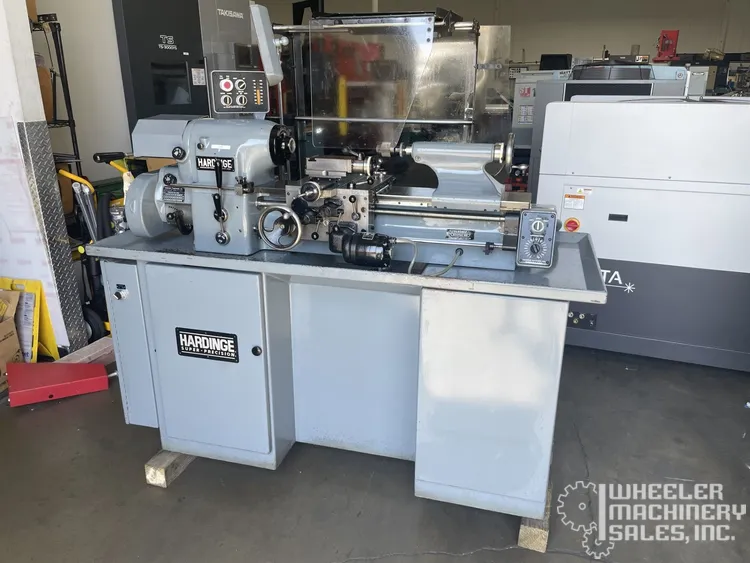

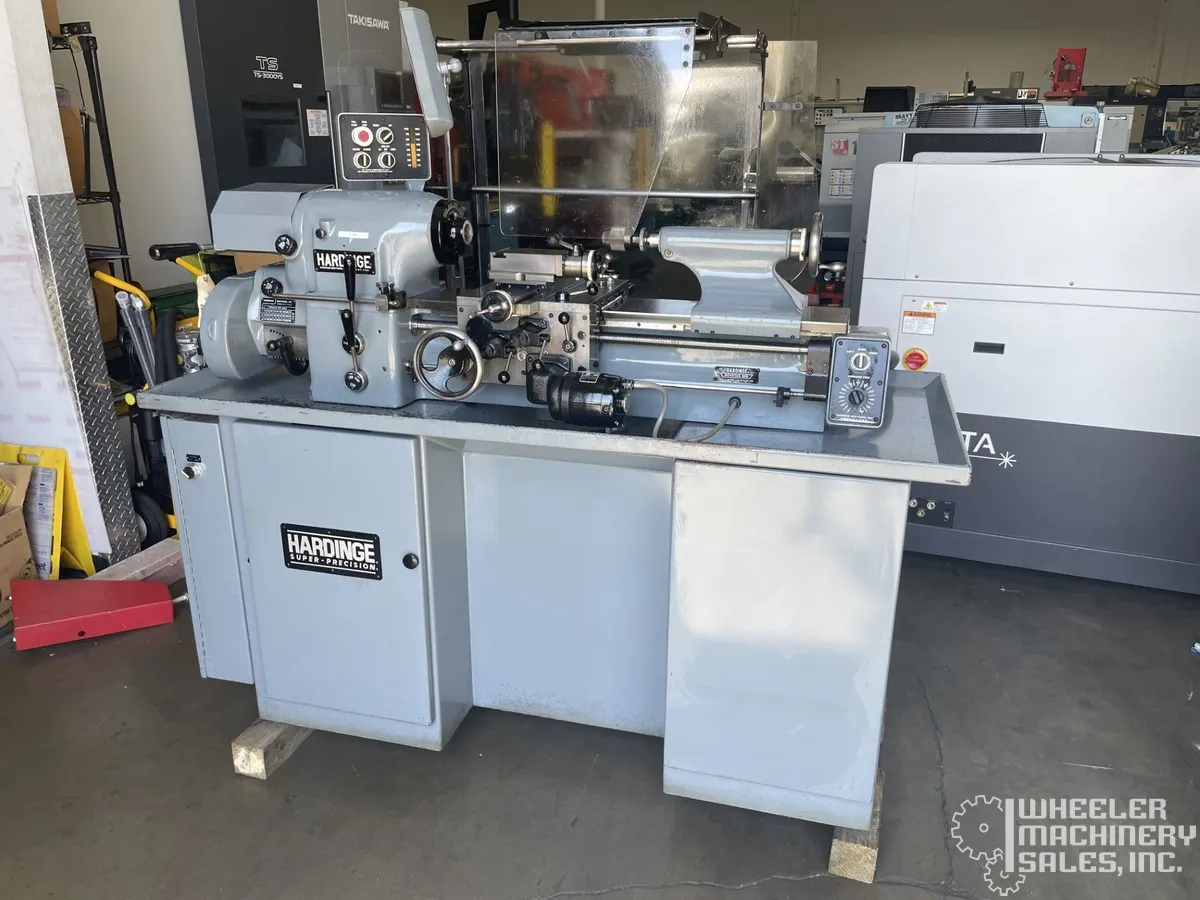

Hardinge HLV-H Precision Tool Room Lathe #7535 #1
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available
Hardinge HLV-H Precision Tool Room Lathe, used. Specifications: 11" swing over bed, 18" distance between centers, variable spindle speeds 125-3000 RPM, 1.5 HP motor. Dimensions: 71" x 38" x 65". Weight: 1,800 lbs.
Hardinge HLV-H Precision Tool Room Lathe #7535 #1

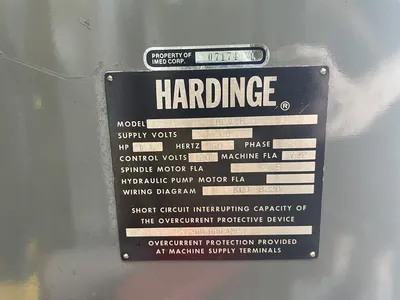

Serial # HLV-H-11364T
SPECIFICATIONS:
Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"
Spindle Speeds (Variable): 125- 3,000 RPM
Spindle Nose: 4 Degree Taper
Hole Through Spindle: 1 1/4"
Threads Inch: 11- 108 TPI
Feeds (Variable): 1/4- 7 IPM
Tailstock Quill Taper: #2 MT
Tailstock Quill Travel: 3 3/4"
Motor: 1 1/2 HP
Dimensions (L x W x H): 71" X 38" X 65"
Weight: 1,800 Lbs.
EQUIPPED WITH:
Full Turret of 5C Collets
Tailstock
