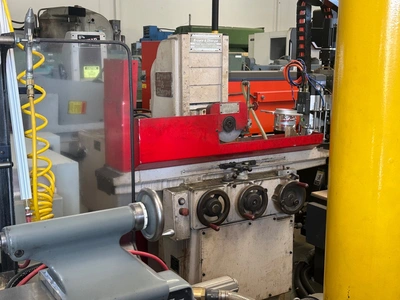

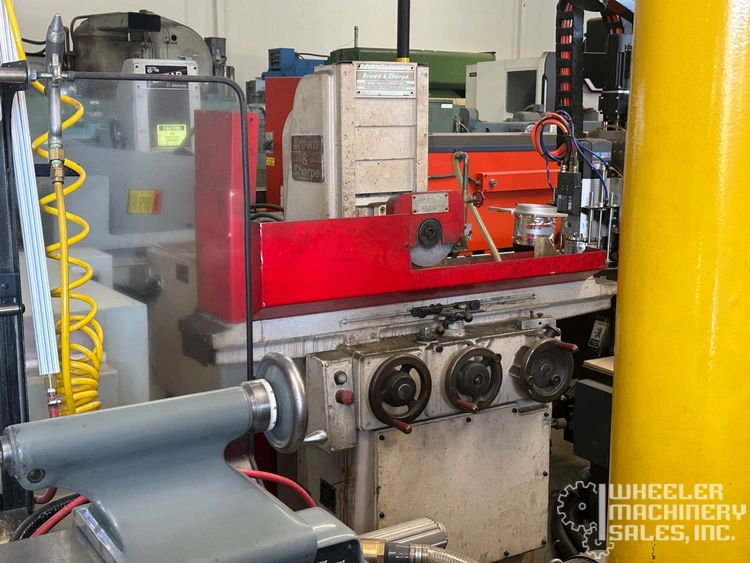

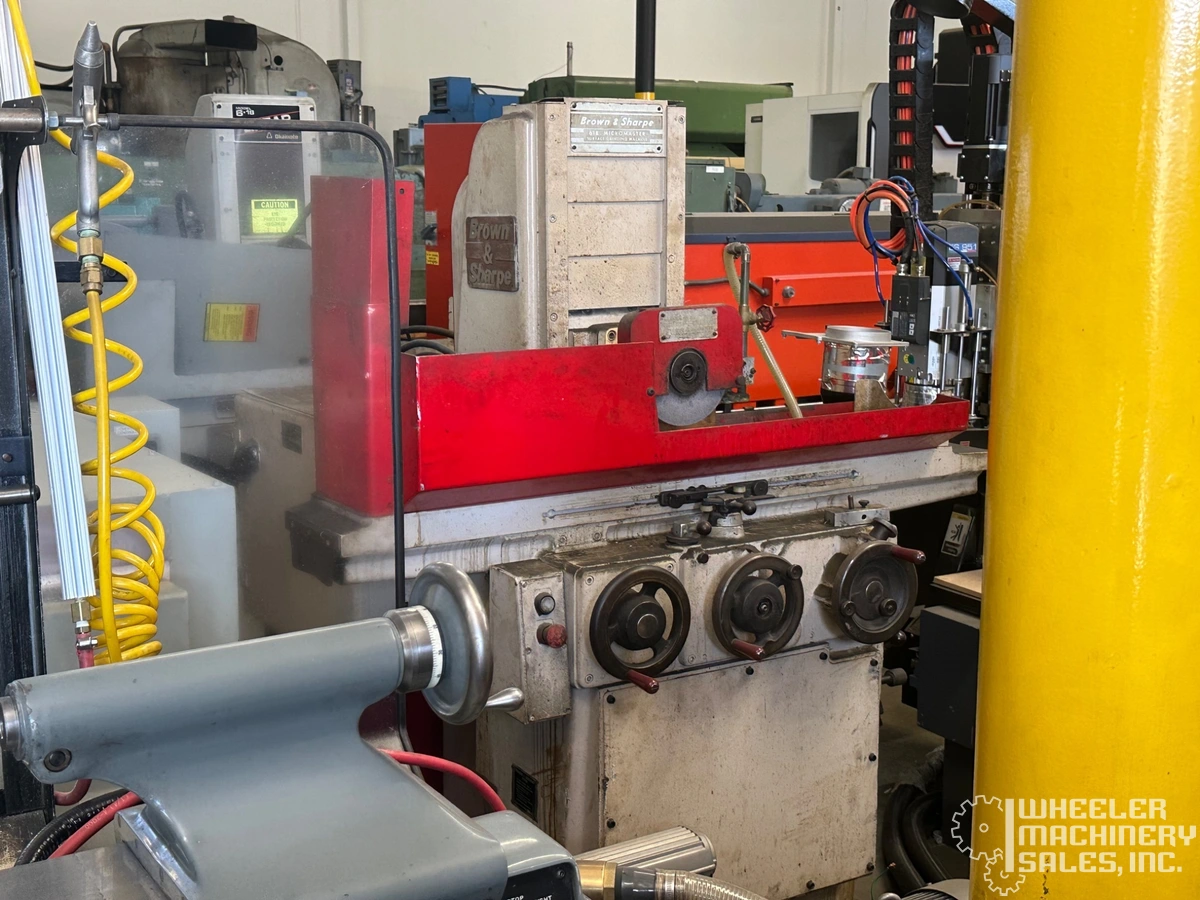

Brown & Sharpe 618 Micromaster Surface Grinder # 7517 #2
Have one to sell?
$4,250.00 USD
ConditionUsed
1 available
Used BROWN & SHARPE 618 MICROMASTER Surface Grinder available. Features horizontal operation, 2.0 power, 6x18 table, 1.0 wheel width, 7.0 wheel diameter. Ideal for precision tasks in industrial settings.
Brown & Sharpe 618 Micromaster Surface Grinder # 7517 #2
SPECIFICATIONS:
Capacity: 6″ x 18″
Height of Work Ground with 8″ Wheel: 15″
Grinding Wheel Size: 8″ x 1/2″ x 1 1/4″
Max. Longitudinal Travel: 22″
Hydraulic Powered Table Speed: 5 – 100 FPM
Cross Feed Travel: 7″
Automatic Cross Feed Increment Table Pass: 0.01″ – .025″
Cross Feed Rapid Traverse Rate: 12 FPM
Vertical Travel of Spindle: 15 3/4″
Vertical Movement of Table per Handwheel Rev.: 0.05″
Motor: 1.5 HP / 208v / 3ph
Weight: approx. 3,500 lbs.
