Sell CNC Automatic Pipe Bending Bender Machine 38CNC Stock #7490

Description

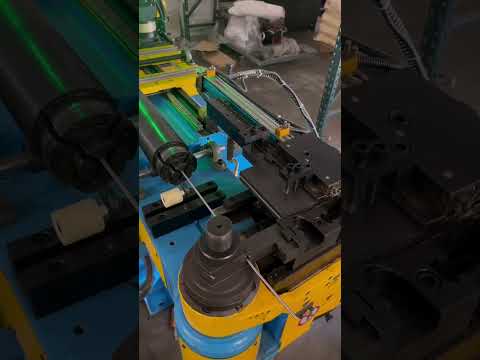

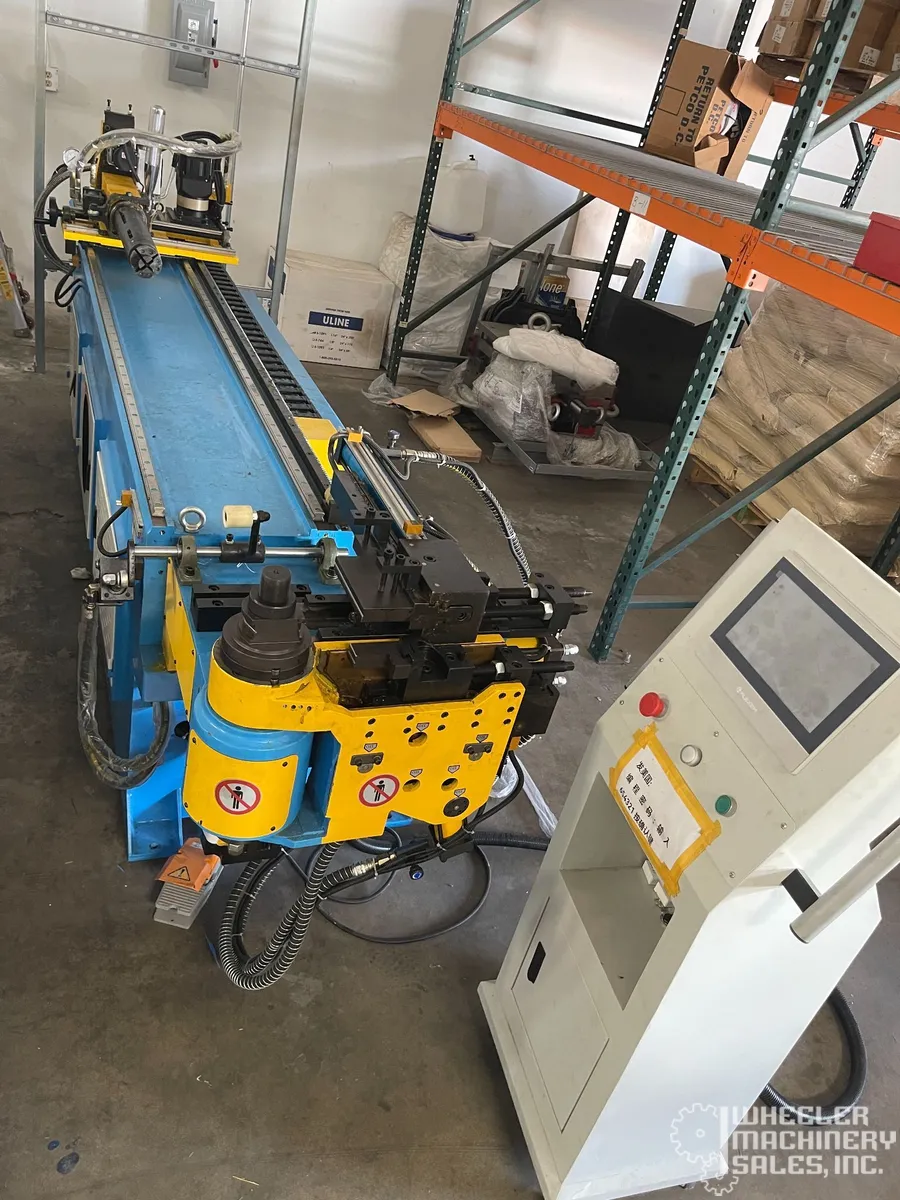

Sell CNC Automatic Pipe Bending Machine 38CNC

Barely used. Selling on behalf of customer. Under power for demonstration / inspection in Pomona, Ca.

Max. Tube O.D. x W.T ( mm) Iron Pipe: 38 dia. x 2.0t
Max. Tube O.D. x W.T ( mm) Stainless Steel Pipe: 32 dia. x 1.8t
Max. Tube O.D. x W.T ( mm) Square Tube: 32 dia. x 1.8t
Max. Bending Radius (mm): 200
Max. Bending Angle: 190 dg.
Max. Effective Mandrel Length (mm): 2500
Bending Precision (mm): plus minus 0.1"
Bending Speed (mm/sec): 150
Feeding Accuracy (mm): plus minus 0.1"
Feeding Speed (mm/sec): 1000
Corner Accuracy (mm): plus minus 0.1"
Corner Speed (mm/sec)? 200
Feeding Way: 1. Sent Straight 2. Clamping Feed
Bend Way: 1. Servo Bending 2. Hydraulic Bending
Feeding Servo Motor power (kw): 1
Rotation Servo Power (kw): 0.75
Total Motor Power (kw): 4
Maximum Presure (mpa): 12
Dimensions (mm LxWxH): 4250 x 900 x 1250
Weight (kg): 1800
